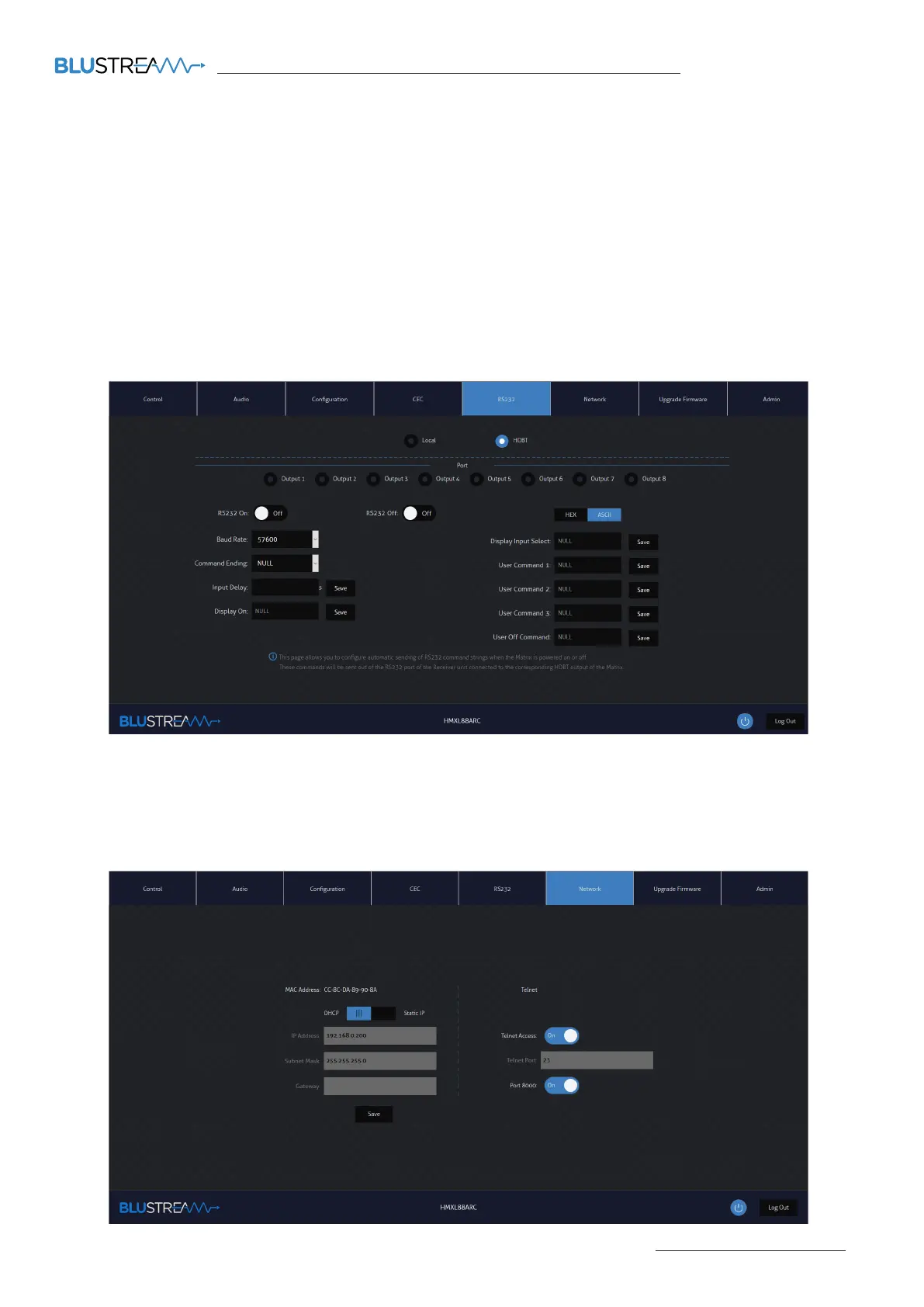

RS-232 Page - HDBT
The RS-232 HDBT Page allows you to remotely control devices connected via DB9 serial to the remote HDBT Receiver.
It is then possible to automate the display on, input select and display o process via RS-232 for each HDBT output,
when the Matrix is turned on or o.
If RS-232 On is enabled, the User Commands 1, 2, 3, 4, and 5 are all sent out of the HDBT Receiver, when the Matrix is
turned on.
If RS-232 O is enabled, the User O Command will be sent out of the corresponding HDBT Receiver, when the Matrix is
turned o.
You can also specify the Baud Rate and Command Ending (eg: new line, carriage return) to the match the RS-232
device connected to the HDBT Receiver.
Network Page
The Network Page allows you to specify the TCP/IP network port settings. You can choose from Static IP or DHCP, as
well as specify a fixed IP Address, Subnet Mask and Gateway. It is also possible to change or disable the Telnet port.
