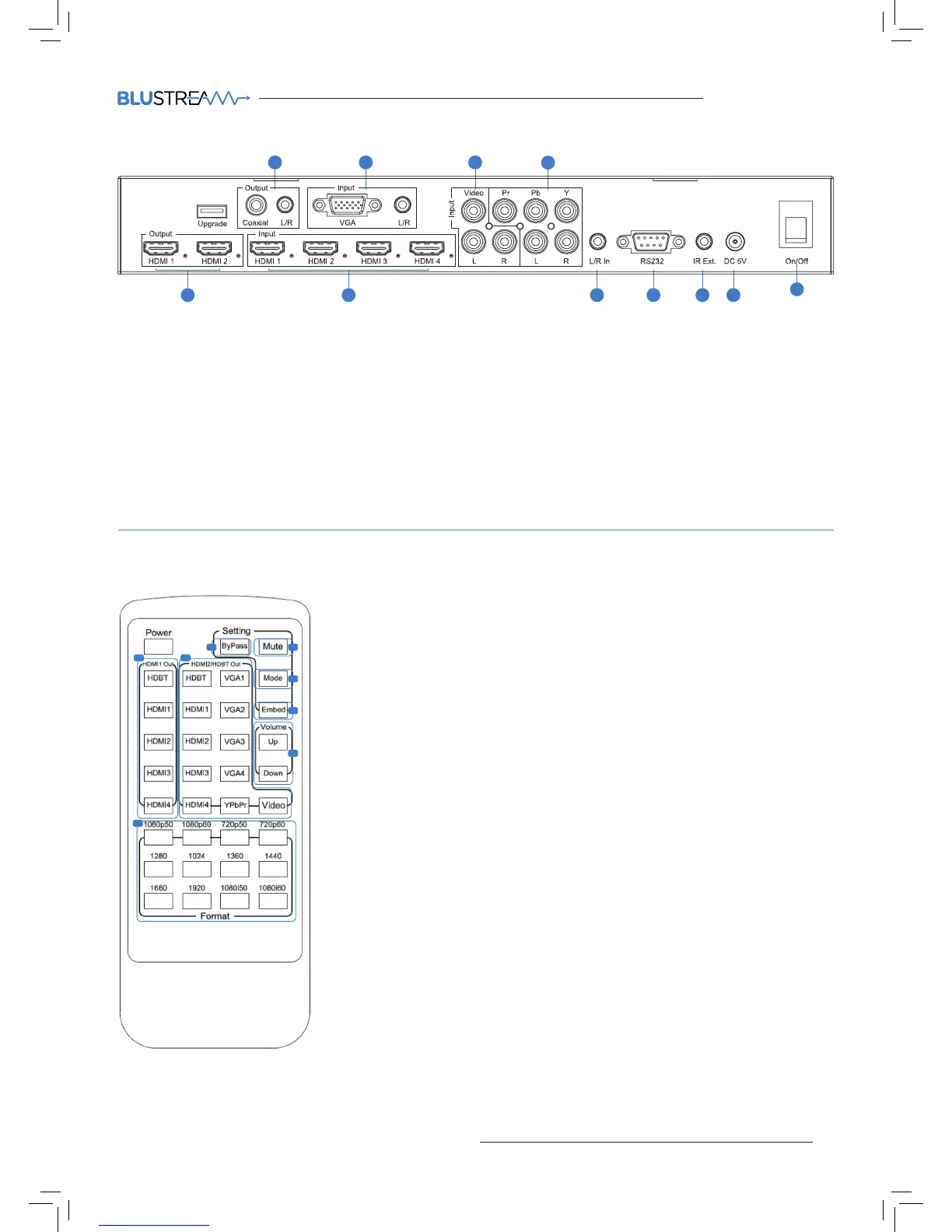

Remote Control Description
OUTPUT AND INPUT SELECTION
A Source selection for HDMI output 1 when in Matrix Switcher mode.
B Source selection for HDMI output 2 when in Matrix Switcher mode or both HDMI outputs
when in Splitter mode.
VIDEO OUTPUT RESOLUTION
C. The MFP72 includes in-built video scaler. To change the HDMI output video resolution
press the required resolution button on the bottom of the Blustream remote control.
Settings
D. Bypass: Audio on HDMI outputs is from HDMI input selected.
E. Mute: Mutes the audio on all outputs (HDMI, Coaxial digitial and Analogue audio).
F. Mode: Switches between Matrix Switcher mode and Splitter mode.
G. Embed: Audio on HDMI outputs is from L/R Analogue audio input (3.5mm Jack).
VOLUME CONTROL
H. Adjust the audio Volume on all outputs (HDMI, Coaxial digitial and Analogue audio).
A
C
B
D E
F
G
H
5
Rear Panel
1 2 3
4
6 7 8 9 10
11
MFP72
1 Coaxial digital and analogue audio
outputs - Extracted audio will always
follow HDMI output 2 source selection.
Note: input must be 2ch PCM for
Analogue audio output to work.
2 VGA input - VGA input with associated
L/R analogue audio input.
3 AV input - Composite video input with
associated L/R analogue audio input.
4 YPbPr input - YPbPr input (Component
video) with associated L/R analogue
audio input.
5 HDMI outputs 1 and 2.
6 HDMI input 1 to 4 - Connect to HDMI
sources
7 L/R In - Enables Analogue audio to be
embedded onto both HDMI outputs
in Splitter mode and HDMI output 2 in
Matrix Switcher mode.
8 RS232 port - For control of the switcher
from PC or control processor
9 IR Ext. - Connect to Blustream IR
receiver or control processor when
using Blustream IRCAB cable (sold
separately).
q Power port - Use supplied 5V/2A DC
power supply.
w Power switch - Power on/o the unit.
