RESmart GII BPAP System Y / U Series User Manual V2.1
14 / 42
• Tobacco smoke may cause tar build-up within the device, leading to the malfunctioning of
the device.
• Air must flow freely around the device for it to work properly.

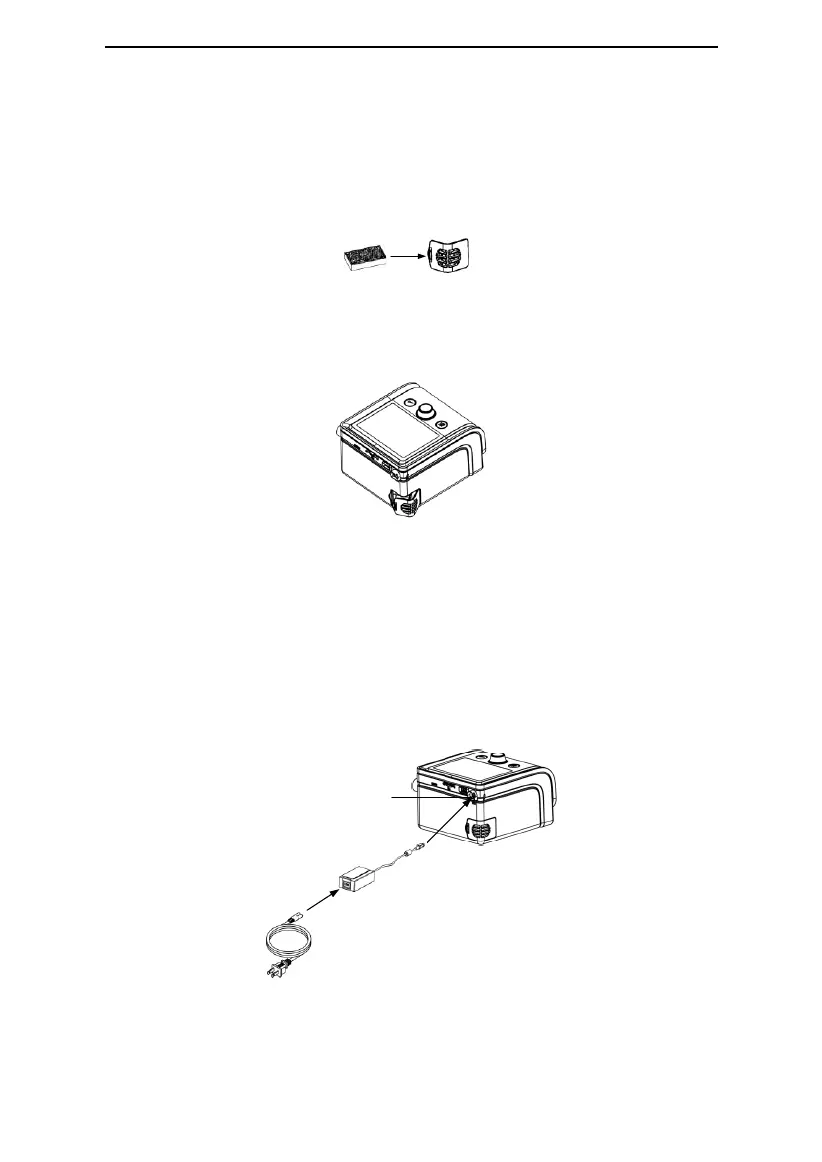

11.2 Installing the Air Filter and Filter Cap
(1) Attach the air filter to the filter cap, as shown in Fig. 11-1.
Fig. 11-1
(2) Install the filter cap containing the air filter to the main device, as shown in Fig. 11-2.
Fig. 11-2
CAUTIONS!
• The air filter must be in place when the device is operating.
• Installing the air filter and filter cap, device must be unplugged.
11.3 Connecting to Power
(1) Insert the plug of the power adapter into the DC Inlet on the back of the device;
(2) Connect the power cord to the power adapter;
(3) Plug the other end of the power cord into the power outlet.
DC Inlet
Main Device
Power Adapter
Power Cord
Fig. 11-3
Note: The length of the power cord and power adapter is 1.5 m and 1.8 m respectively
without the function of preventing electromagnetic interference.
