11
ControlNode102

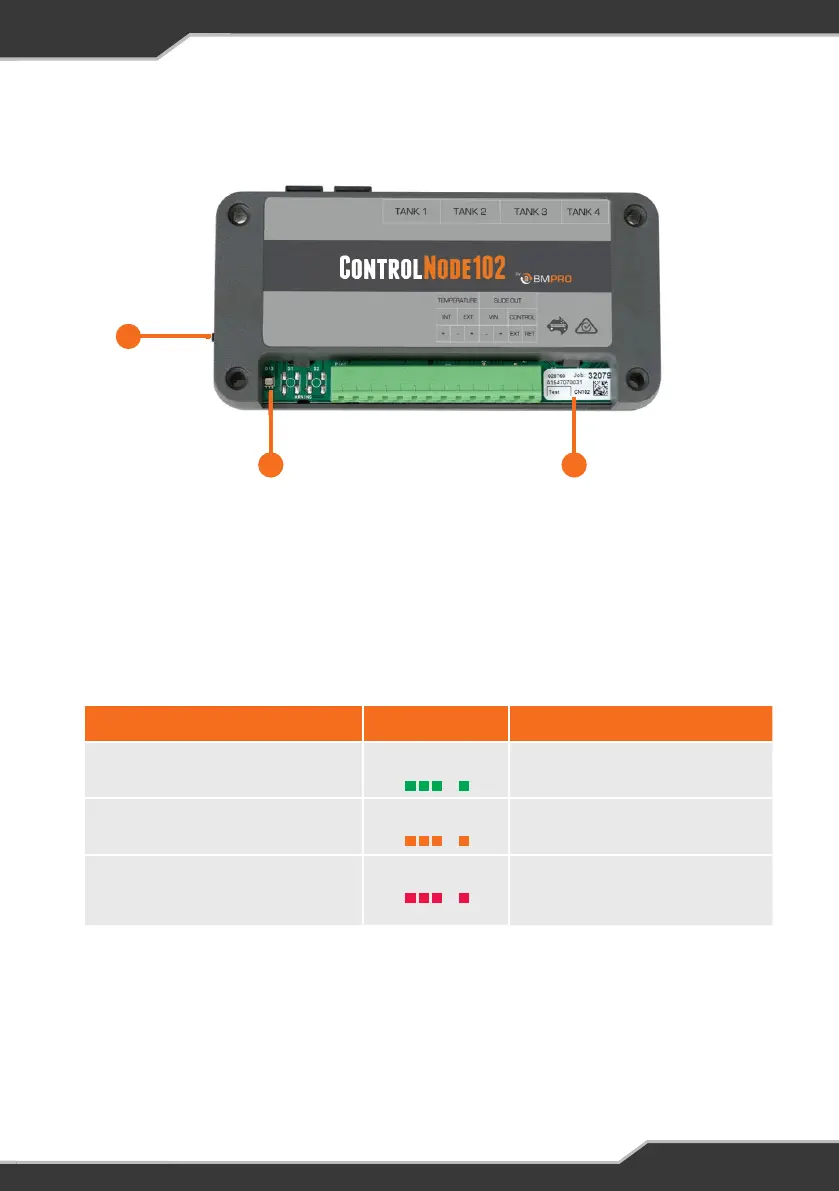

Figure 2: The ControlNode102
1
3 2
q PAIRING BUTTON
Button to enable Bluetooth pairing between the ControlNode102 and the JHub
App on your own personal mobile device or JHub Tablet.
w LED STATUS INDICATOR
Indicates the operational/pairing status of the ControlNode102.
Table 5: ControlNode102 Operational Status and LED Flash Codes
*After memory has been cleared, the ControlNode102 LED Status Indicator will immediately flash
green to enable pairing to a new mobile device.
Operational Status Flashing Status Note
ControlNode102 is ready to pair Green Flash 30 sec
ControlNode102 memory is full,
cannot pair to any new mobile devices
Orange Flash 1 sec To pair to a new mobile device, clear
the memory of the ControlNode102
Clearing ControlNode102 memory* Red Flash 1 sec Memory will only be cleared if the
user presses and holds the Pairing
Button for 10 seconds.
e CONTROLNODE SERIAL NUMBER
Required to choose the correct device when pairing the ControlNode102
to the JHub App on your own personal mobile device or JHub Tablet.
