F48�Information�and�Communication
4.�Telephone�Systems
20
Index Explanation
1 Fuses�in�the�power�distribution�box�in�the�passenger�compartment
2 Body�Domain�Controller�(BDC)
3 Central�information�display�(CID)
4 Headunit
5 Microphone,�right
6 USB�audio�interface
7 Telephone�antenna,�roof
8 Base�plate
9 Fan�in�the�center�armrest
10 Controller�(CON)
11 K-CAN�terminator
12 Bluetooth�antenna
13 Microphone,�left
14 Steering�column�switch�cluster�(SZL)
15 Instrument�cluster�(KOMBI)
4.4.�Bluetooth�antenna
The�Bluetooth�antenna�is�designed�as�a�simple�cable�antenna.�The�installation�location�is�near�the
headunit.

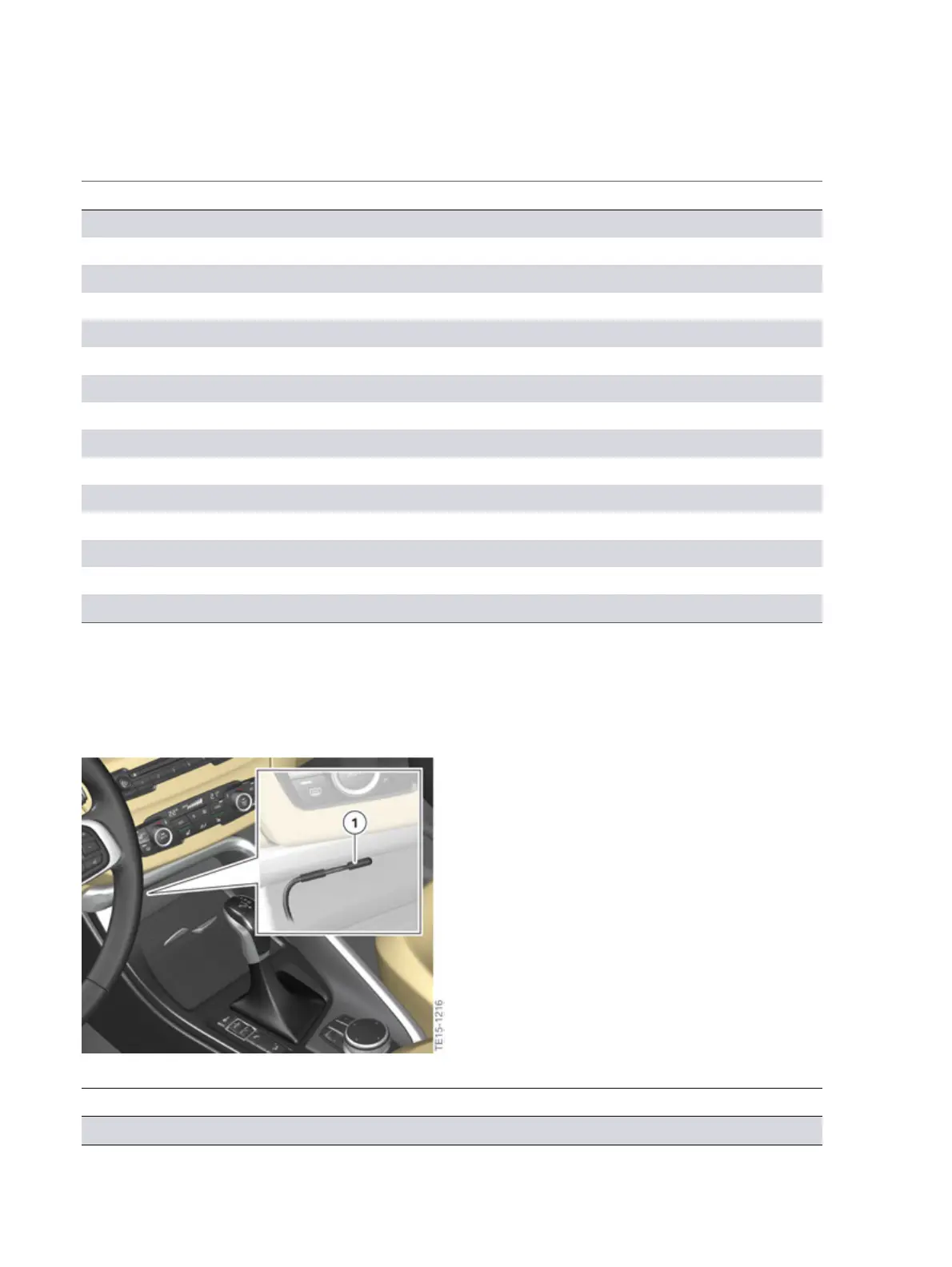

F48�installation�location�of�Bluetooth�antenna
Index Explanation
1 Bluetooth�antenna
