F97/F98�Complete�Vehicle
5.�Chassis�and�Suspension
50

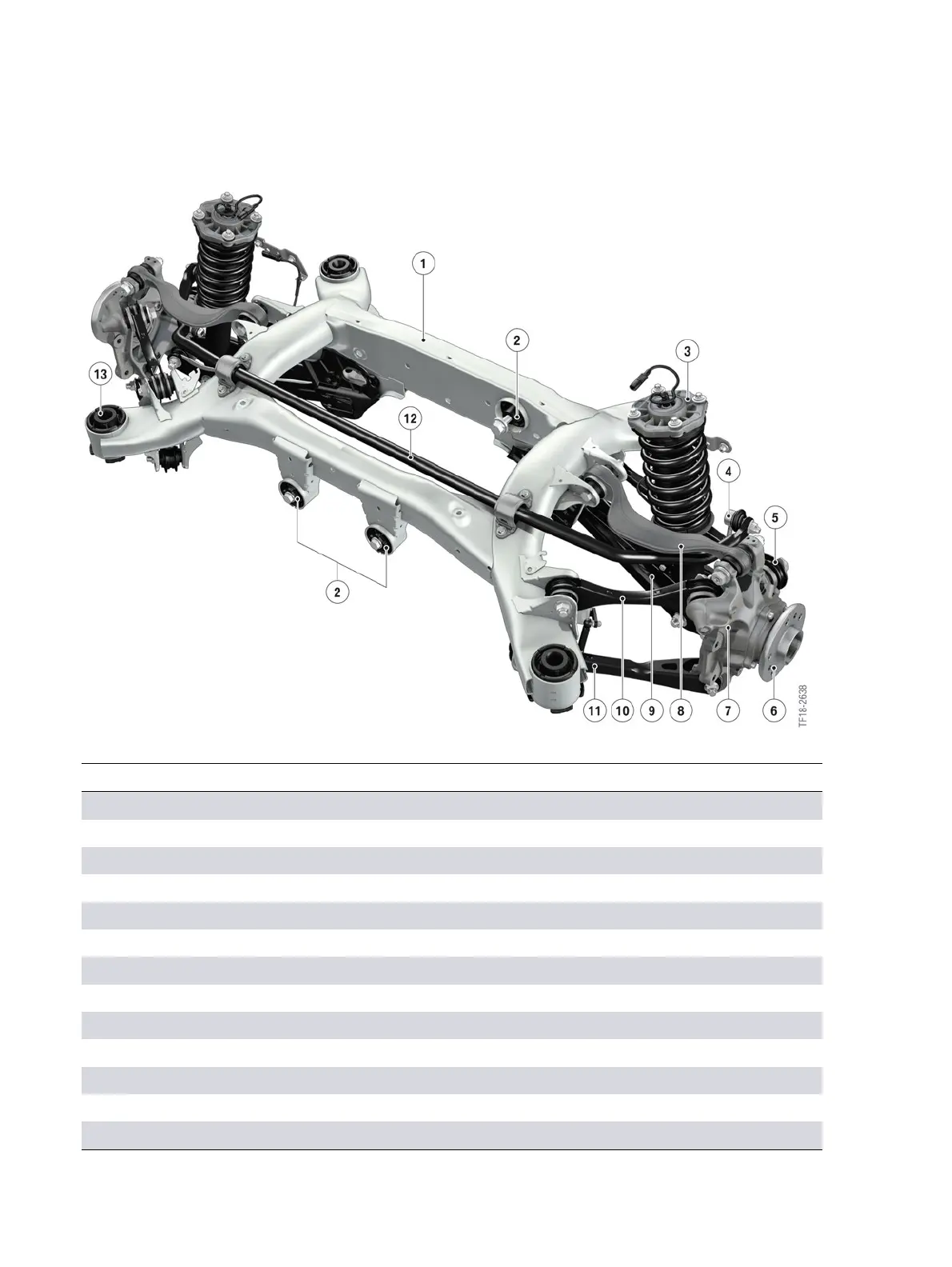

F97/F98,�HA5�rear�suspension
Index Explanation
1 M�rear�axle�support
2 Attachment�point�for�rear�axle�final�drive
3 M�spring�strut�with�M�support�bearing
4 Anti-roll�bar�link
5 Camber�link
6 M�wheel�hub
7 M�wheel�carrier
8 Wishbone
9 Camber�control�arm
10 Control�arm
11 Trailing�arm
12 M�anti-roll�bar�(�24.7�mm)
13 Attachment�point�of�rear�axle�bearing�(with�hard�rubber�mount)
