F97/F98�Complete�Vehicle
5.�Chassis�and�Suspension
51
5.3.�Brakes�and�wheels/tires
5.3.1.�Brakes
M�compound�brake

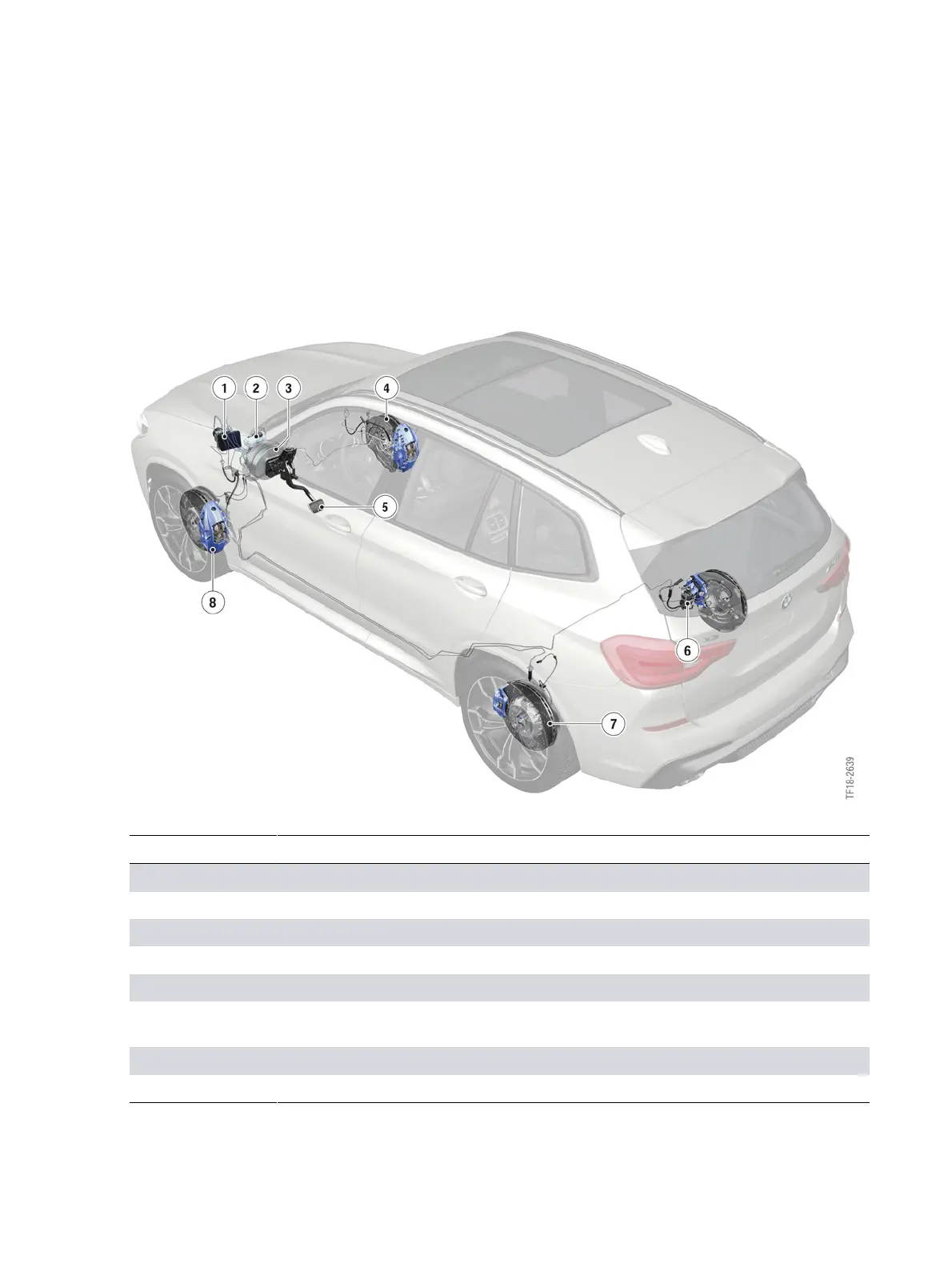

F97/F98,�brake�system
Index Explanation
1 M�Dynamic�Stability�Control�(M�DSC)
2 Brake�fluid�expansion�tank
3 Brake�servo�(left-hand�drive�vehicle)
4 Front�M�compound�brake�disc
5 Brake�pedal
6 Rear�single-piston�floating�caliper�with�actuator
for�the�electromechanical�parking�brake
7 Rear�M�compound�brake�disc
8 Front�four-piston�fixed�caliper
