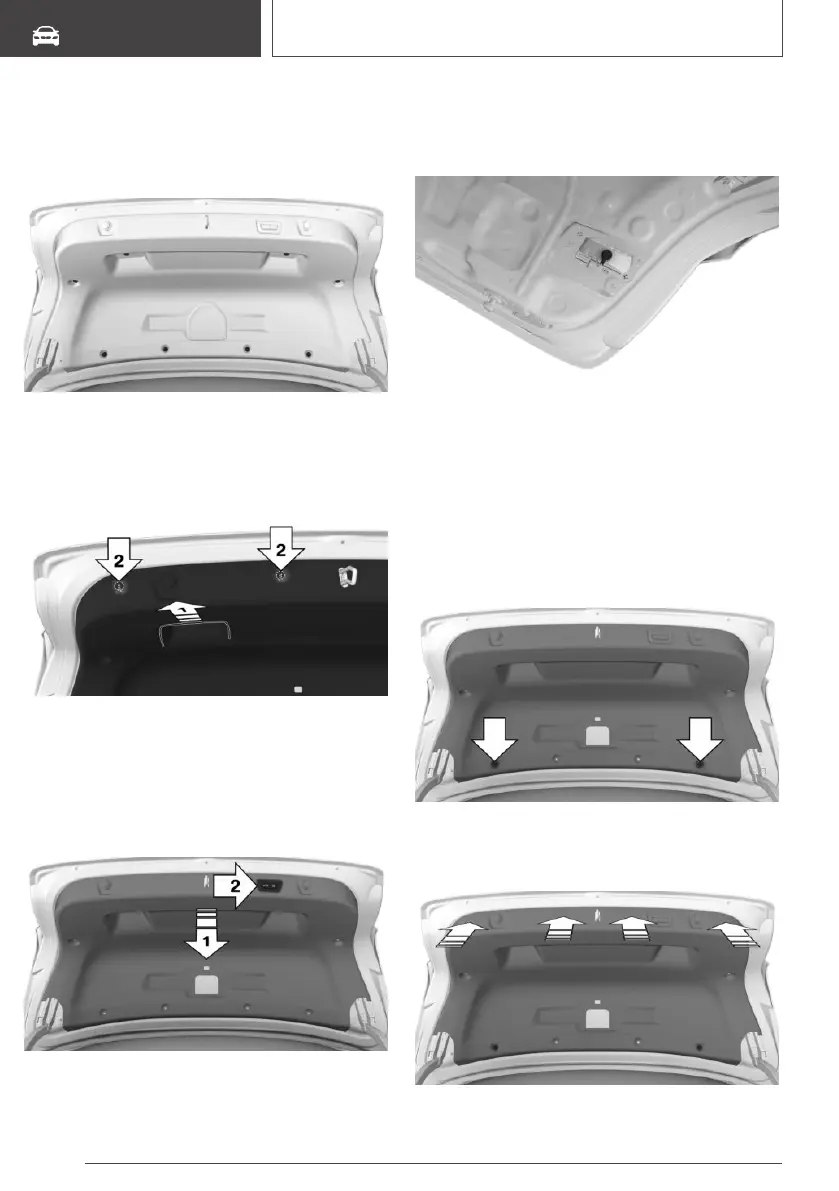

Removing the boot lid lining
1. Use the screwdriver to carefully lever out the
eight expander rivets. Operate the expander
rivets as described above.
2. On one side, reach into the handle recess
and carefully pull the boot lid lining towards
the back, arrow 1, until the two retainers, ar‐
rows 2, come loose behind the boot lid lining.
3. Follow the corresponding procedure on the
left side.
4. Carefully detach the boot lid lining from the
boot lid, arrow 1, and, if applicable, full the ca‐
ble with connector off the switch unit, ar‐
row 2.
5. Take off the boot lid lining.
Replacing the reversing light
1. Turn the bulb holder in the direction indicated
on the reflector and pull it out.
2. Press the bulb gently into the bulb holder,
turn anticlockwise and remove.
3. Fit the bulb holder.
Fitting the boot lid lining
1.
If applicable, connect the cable to the switch
unit. Ensure that the connector engages.
2. Place the boot lid lining at the boot lid and at‐
tach with two expander rivets.
3. Press against the boot lid lining, arrows, so
that the four retainers snap into place in the
boot lid.
