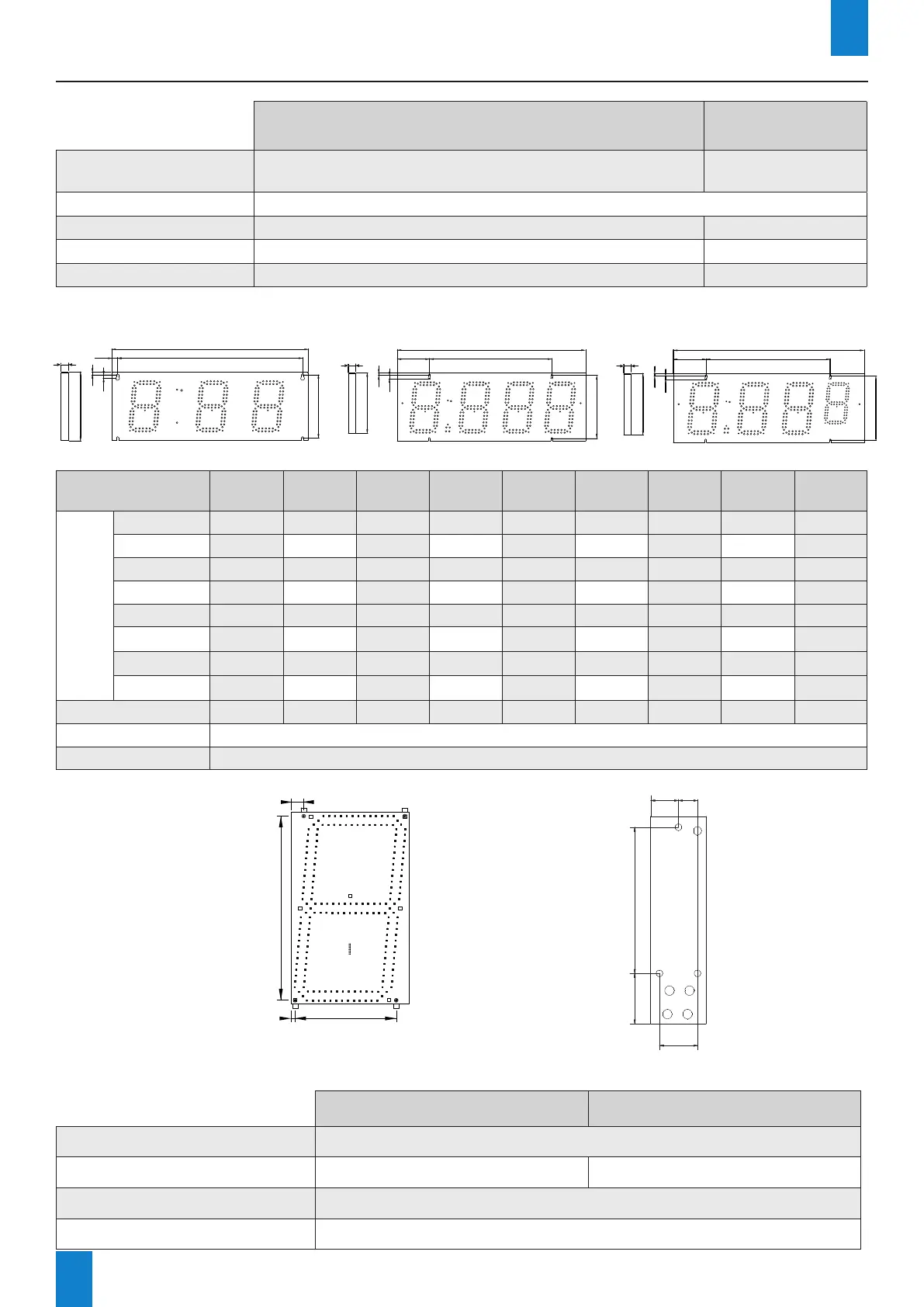

IV – Technical characteristics
LED lines - dimensions
No. of digits x Sizes
(cm)
3 x 20 3 x 25 3 x 30 4 x 15 4 x 20 4 x 25 4 x 30
3 x 25 +
1 x 20
3 x 30 +
1 x 20
Dimensions (mm)
A 234 336 428 193 234 336 428 336 428
B 8 8 9 8 8 8 9 8 9
C 15.25 45 45 15.25 15.25 160.5 182.5 160.5 182.5
D 529 648 780 610 699.5 648 780 648 780
E 559.5 738 870 640.5 730 969 1145 969 1145
F 218 320 410 177 218 320 410 320 410
G 19.5 31.5 49 24.5 19.5 31.5 49 31.5 49
H 19.5 59.5 84 20.5 19.5 59.5 84 59.5 84
Weight (kg) 0.8 1.3 2.5 0.8 1 1.7 2.9 1.7 2.9
Operating T° -20°C to +70°C
Protection class IP20
Module for LED line 42 cm* LED decimal point for LED line 42 cm
Dimensions See below
Weight (kg) 0.370 0.025
Operating T° -20°C to +70°C
Protection class IP20
*Digits come with DIN rail adaptor and without panelling.
2249
408
28
LED module 42 cm
18 12.35
32
24.65
93
LED decimal point
Karbu Link
Karbu Link
remote control
Construction
Aluminium (floor) casing and black/transparent polycarbonate
(protective glass).
PMMA
Operating T° -20°C to +70°C
Weight (kg) 0.600 0.145
Power supply 100-240V AC 2 1.5V LR5 batteries
Consumption 0.35A to 230V AC -
F
10
B
20
E
C
D
A
F
10
B
20
E
C
D
A
F
10
B
20
E
C
D
A
