5

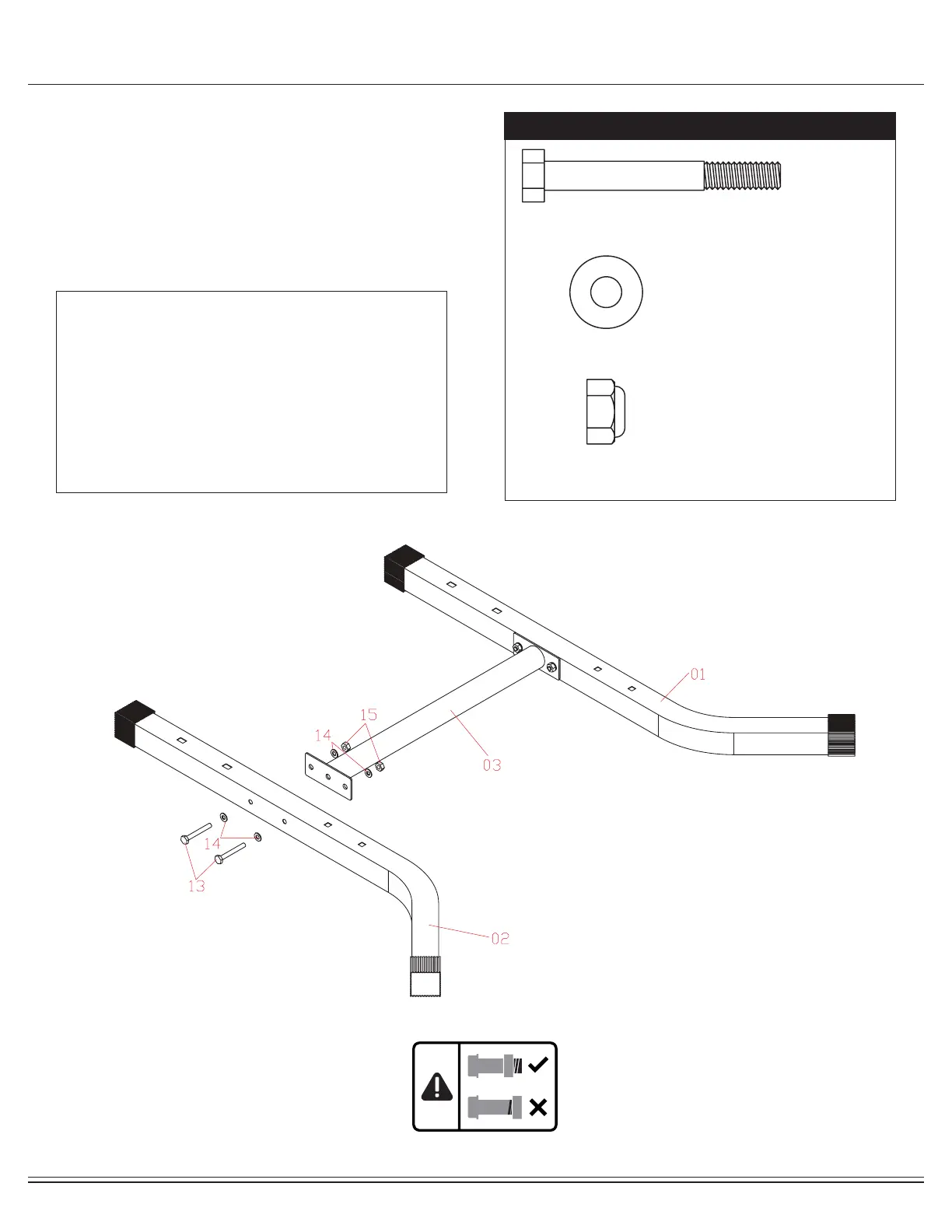

Assembly STEP 1
Align and attach the Base Frame (Right) (#02) to the Base
Cross Frame (#03) as illustrated in the diagram. Insert two
Bolts (#13) through two Washers (#14) followed by the Base
Frame (Right) (#02) and Base Cross Frame (#03). Secure
them together using two Washers (#14) and two Lock Nuts
(#15). Repeat this process on the other side.
Hardware Required
NOTE:
To avoid misalignment due to over-tightening,
please do not use a wrench at this time.
Hand-tightening for now will help ensure easy
assembly.
Wrench-tightening should be performed after all
parts are assembled to ensure all nuts, bolts, and
parts are tightly secured before use.
#13. Bolt (M8x65 mm) [4 pieces]
#14. Washer (M8) [8 pieces]
#15. Lock Nut (M8) [4 pieces]
