A. Place two 2 1/2” Rubber Donuts (11) on Rear Base Frame (B) over the two widest openings.
Slide two Chrome Guide Rods (R) through the two 2 1/2” Rubber Donuts (11) and into Rear
Base Frame (B).
B. Slide fifteen Weight Stack Plates (30) onto the two Chrome Guide Rods (R). Make sure
the holes in the Weight Stack Plates (30) are facing forward as shown.
C. Connect Top Plate (19) to Selector Rod (20) using:
One 49 (7/16” x 1” round bolt)
Note:
Selector Rod Top Bolt (70) is preinstalled in Selector Rod (20).
D. Slide Top Plate (19) and Selector Rod (20) onto Guide Rods (R).
Note:
Make sure that the Round Bolt (49) is facing forward as shown.
E. Slide two Shaft Collars (29) onto Guide Rods (R). Make sure the Allen Head Screws inside
the Shaft Collars (29) are loose.
F. Insert two Guide Rods (R) into Top Weight Stack Frame (S).
Attach 2” x 5” Plate (N) and Top Weight Stack Frame (S) to Top Frame (F) using:
Two 41 (3/8” x 3” hex head bolt)
Four 53 (3/8” washer)
Two 52 (3/8” nylon lock nut)
Insert Convex End Cap (3) into Top Weight Stack Frame (S) as shown.
G. Secure two Shaft Collars (29) into Top Weight Stack Frame (S). Tighten the Allen Head
Screws in each Shaft Collar.
H. You should now wr
ench tighten all bolts and nuts on the main frame unit.
6
Be careful to assemble all components
in the sequence they are presented.

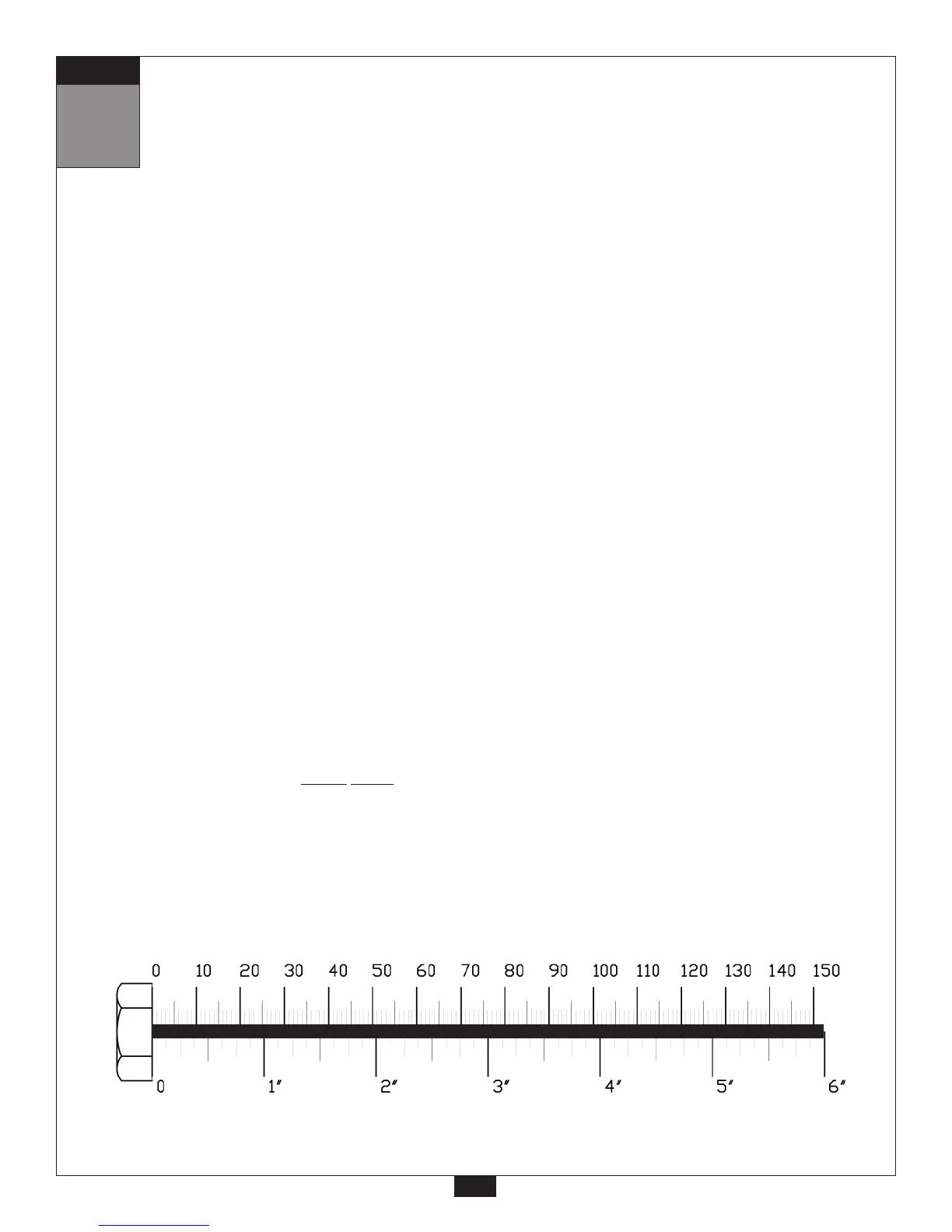

mm
Inch
12
STEP
