Body Solid G1S - Page 17

Start at high pulley station by inserting the
Metal Ball End here.
8
17
Lat Pulldown
Cable
Selector Rod Top Bolt (70) must be threaded a minumum of
1/2” into the Selector Rod (20), and Jam Nut (73) tightened
securely against spring lock washer (72) to ensure proper
connection. Check the Jam Nut (73) once a week to make
sure it is tight.
Diagram 1

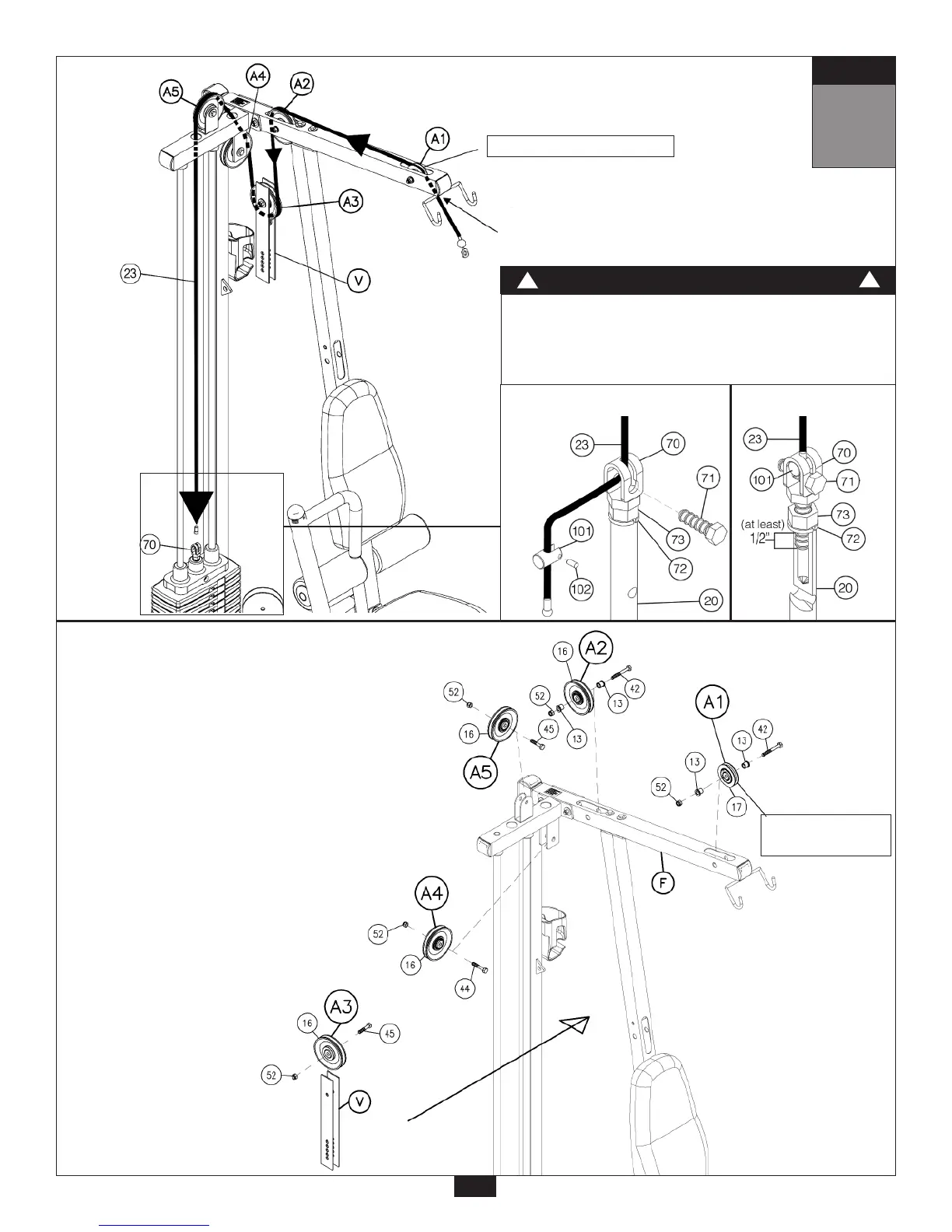

Cable Installation
Diagram 2
Pulley Installation
WARNING
!
!
Diagram 1A
STEP
3 1/2” diameter
pulley
3 1/2” diameter pulley
