A. Attach Top Frame (F) to Angled Support Pillar (E) using:
Two 43 (3/8” x 2 1/2” hex head bolt)
Two 53 (3/8” flat washer)
Note:
Both bolts (43) go into the threaded housing inside the Angled Support Pillar (E)
B. Bolt Top Frame (F) and 2”x4” Plate (G) to Vertical Support Pillar (D) using:
Two 43 (3/8” x 2 1/2” hex head bolt)
Note:
Both bolts (43) go into the threaded housing inside the Vertical Support Pillar (D)
C. Put Foam Roller Bar (H) through Angled Support Pillar (E) and attach two Foam Rollers (18)
with two 1” Roller End Cap (8) as shown. There are two possible openings to mount Foam
Roller Bar (H) to Angled Support Pillar (D). If the main user of this gym is 6’ tall (or more)
mount in the top opening, for shorter people (under 6’) mount in the lower opening. This
piece is not
inter-changeable, once these pads are installed they are permanent.

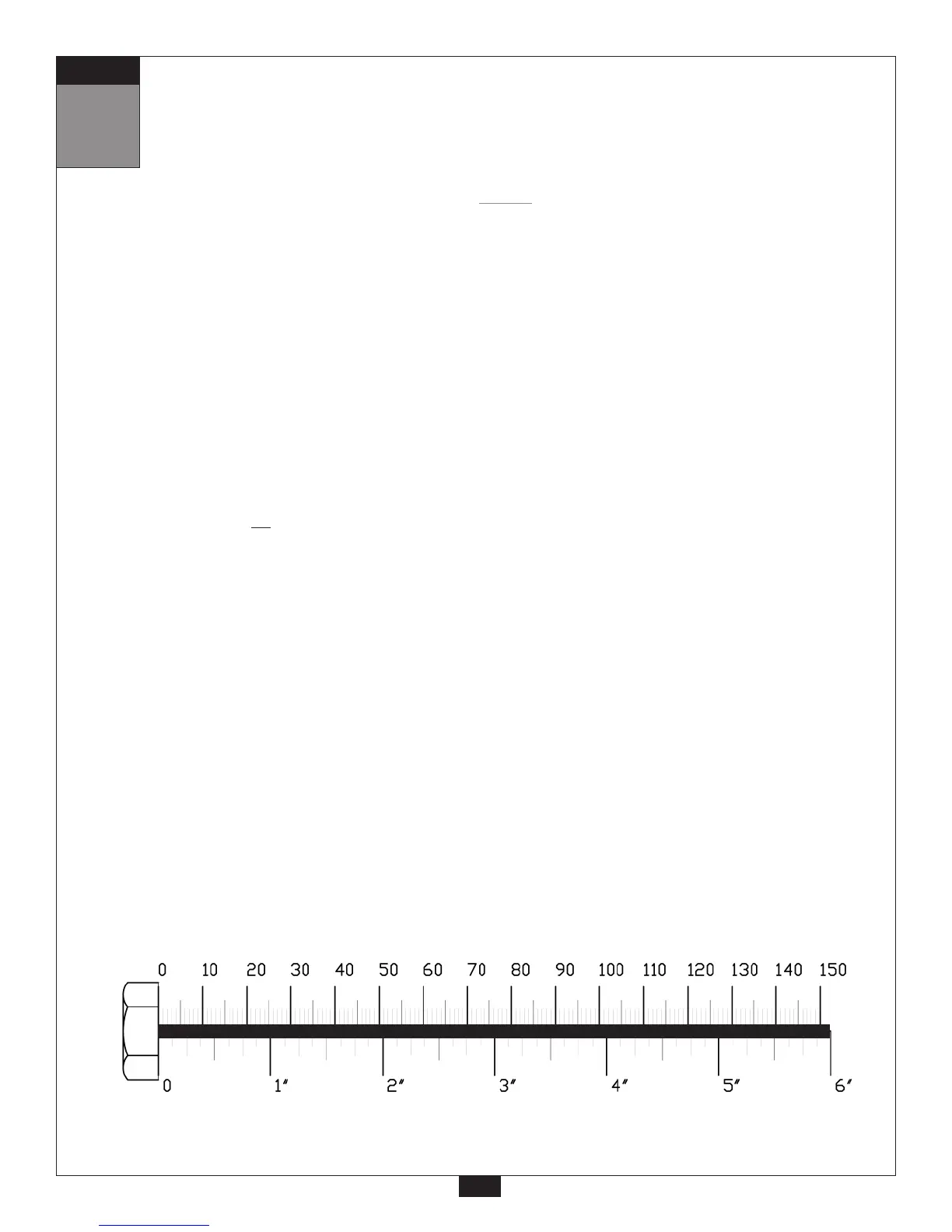

mm
Inch
2
Be careful to assemble all components
in the sequence they are presented.
4
NOTE:
Finger tighten all hardware in this step. Do Not
wrench tighten until end of step 6.
STEP
