Be careful to assemble all components
in the sequence they are presented.

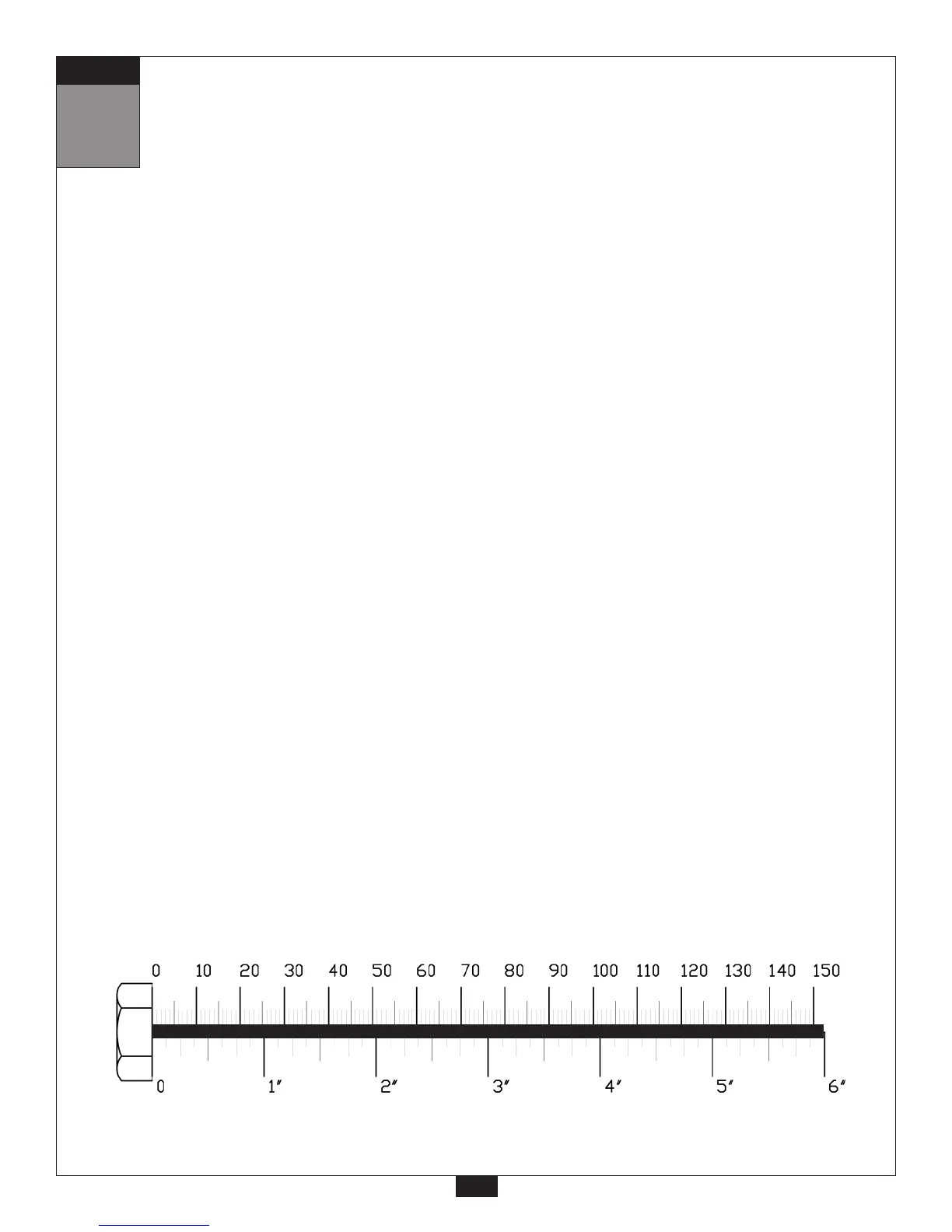

mm
Inch
12
STEP
A. Seat Pad Frame (AA) is pre-installed into Front Base Frame (C).
B. Attach two Foam Rollers (21) to Seat Pad Frame (AA) using Foam Roller Bar (X).
Hold Foam Rollers (21) in place with Plastic Washer (13) on the inside and Roller End Cap (9) on the
outside as shown.
C. Insert End Cap (3) to the back of Seat Pad Frame (AA).
Attach Seat Pad (Z) to Seat Pad Frame (AA) using:
Two 55 (5/16” x 2 3/4” hex head bolt)*
Two 77 (5/16” spring lock washer)
Two 75 (5/16” washer)
*Note:
Do not over tighten pad bolts (55), over tightening will strip the T-nuts pressed into the wood
.
.
