Body Solid G4I - High Pulley Cable

11
Be careful to assemble all components
in the sequence they are presented.
mm
Inch
22
STEP
A. Slide Oilite Washer (107) onto the top of Vertical Frame (J) as shown in Diagram 2.
Attach Pivoting Pulley Holder (BD) onto the right
side of Vertical Frame (J) using:
One 105 (1/2” x 3/4” allen bolt)
One 73 (1/2” washer)
Route High Pulley Cable (29) through the Pivoting Pulley Holder (BD) at the top of Vertical Frame (J).
Route Cable (29) over pre-installed Pulley (B2).
B. Install Pulley (B1) into the Pivoting Pulley Holder (BD) at the top of Vertical Frame (J) under
Cable (29)
using:
One 106 (3/8” x 1 3/4” allen head bolt)
Two 74 (3/8” washer)
One 72 (3/8” nylon lock nut)
C. Route Cable (29) over the top of pre-installed Pulley (B2).
Route Cable (29) over
the top and around Pulley (B3), install Pulley (B3) into the top pulley holder on
the Right Seated Press Arm (K) using:
One 52 (3/8” x 1 3/4” hex head bolt)
Two 74 (3/8” washer)
One 72 (3/8” nylon lock nut)
D. Route Cable (29) over the top of pre-installed Pulley (B4).
Route Cable (29) over
the top and around Pulley (B5), install Pulley (B5) into the bottom pulley holder
on the Right Seated Press Arm (K) using:
One 52 (3/8” x 1 3/4” hex head bolt)
Two 74 (3/8” washer)
One 72 (3/8” nylon lock nut)
E. Route Cable (29) over the top of pre-installed Pulley (B6).
Route Cable (29) through Single Pulley Holder (BE).
Hold Cable (29) in place by installing Pulley (B7) using:
One 52 (3/8” x 1 3/4” hex head bolt)
Two 74 (3/8” washer)
One 72 (3/8” nylon lock nut)

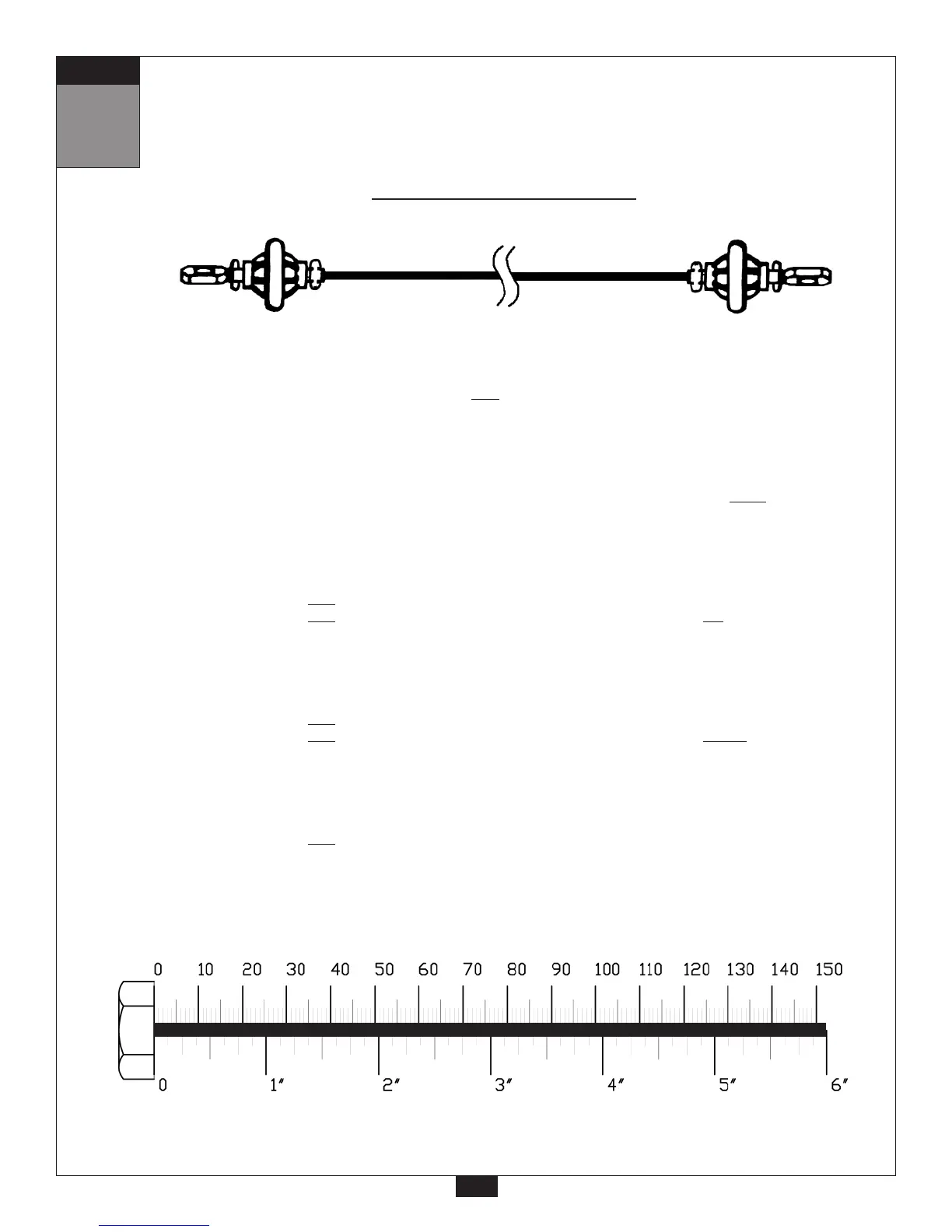

High Pulley Cable (29)
Ball Stop End
Ball Stop End
6925 mm
22’ 8”
