1
Be careful to assemble all components
in the sequence they are presented.

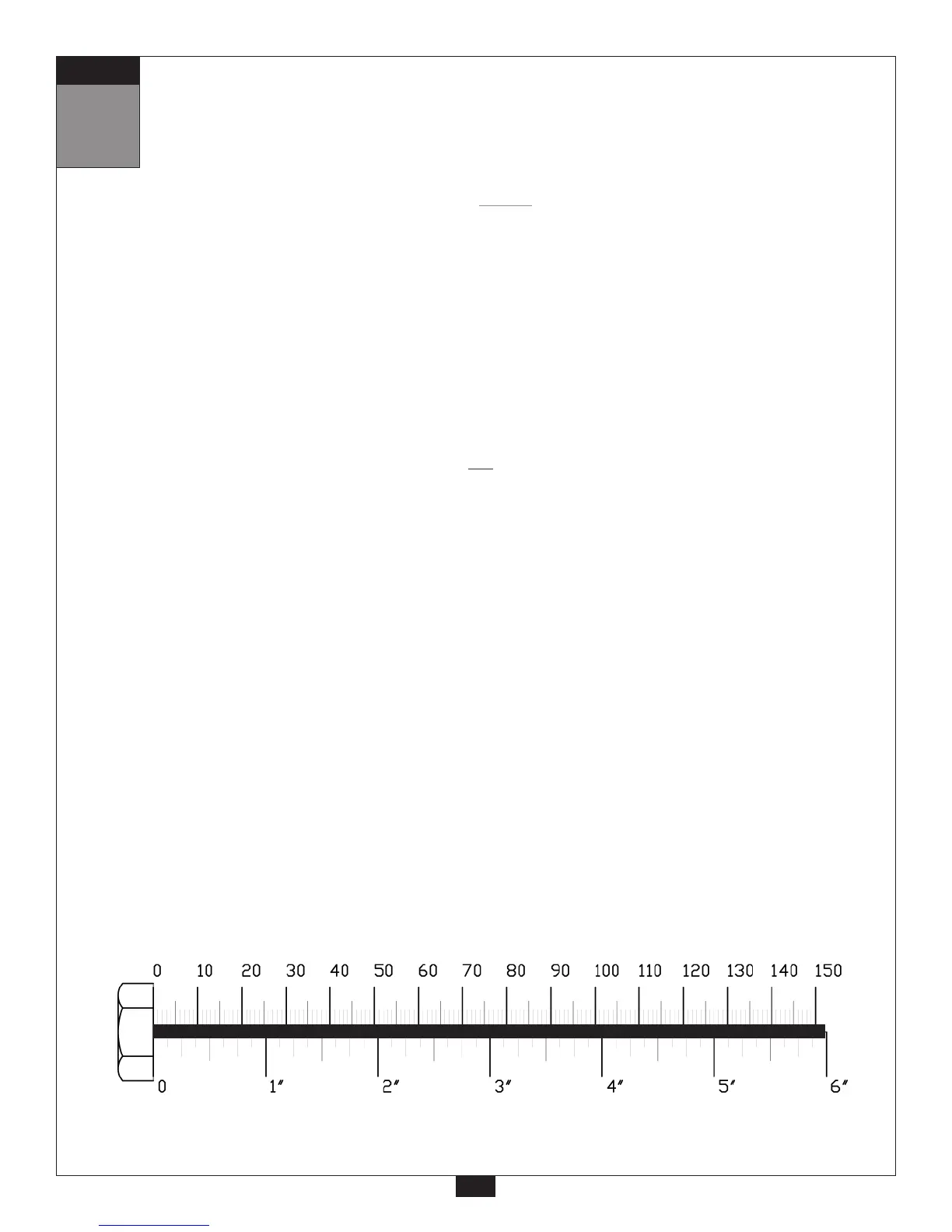

mm
Inch
2
NOTE:
Finger tighten all hardware in this step. Do Not
wrench tighten until end of step 3.
STEP
A. Attach two Foot Caps (4) to Rear Base Frame (B) as shown.
B. Attach Main Base Frame (A), Flat Plate (114) and Guide Rods (E) to Rear Base Frame (B) using:
Two 50 (3/8” x 3” hex head bolt)
Four 74 (3/8” washer)
Two 72 (3/8” nylon lock nut)
Slide two Weight Stack Risers (38)* and two Rubber Donuts (14) onto Guide Rods (E).
*NOTE:
Use the two Weight Stack Risers (38) if you have a 160lb. weight stack.
If you have a 210lb. weight stack you will not
need the two Weight Stack Risers (38), they
can be discarded.
C. Attach Grip Tape (121) to the bottom of Front Base Frame (C).
D. Attach Front Base Frame (C) to Main Base Frame (A) using the two Low Side Panels (D) and using:
Five 47 (3/8” x 4” hex head bolt)
Ten 74 (3/8” washer)
Five 72 (3/8” nylon lock nut)
Attach Frame Leveler (138) to the bottom of Main Base Frame (A).
To Next Page
