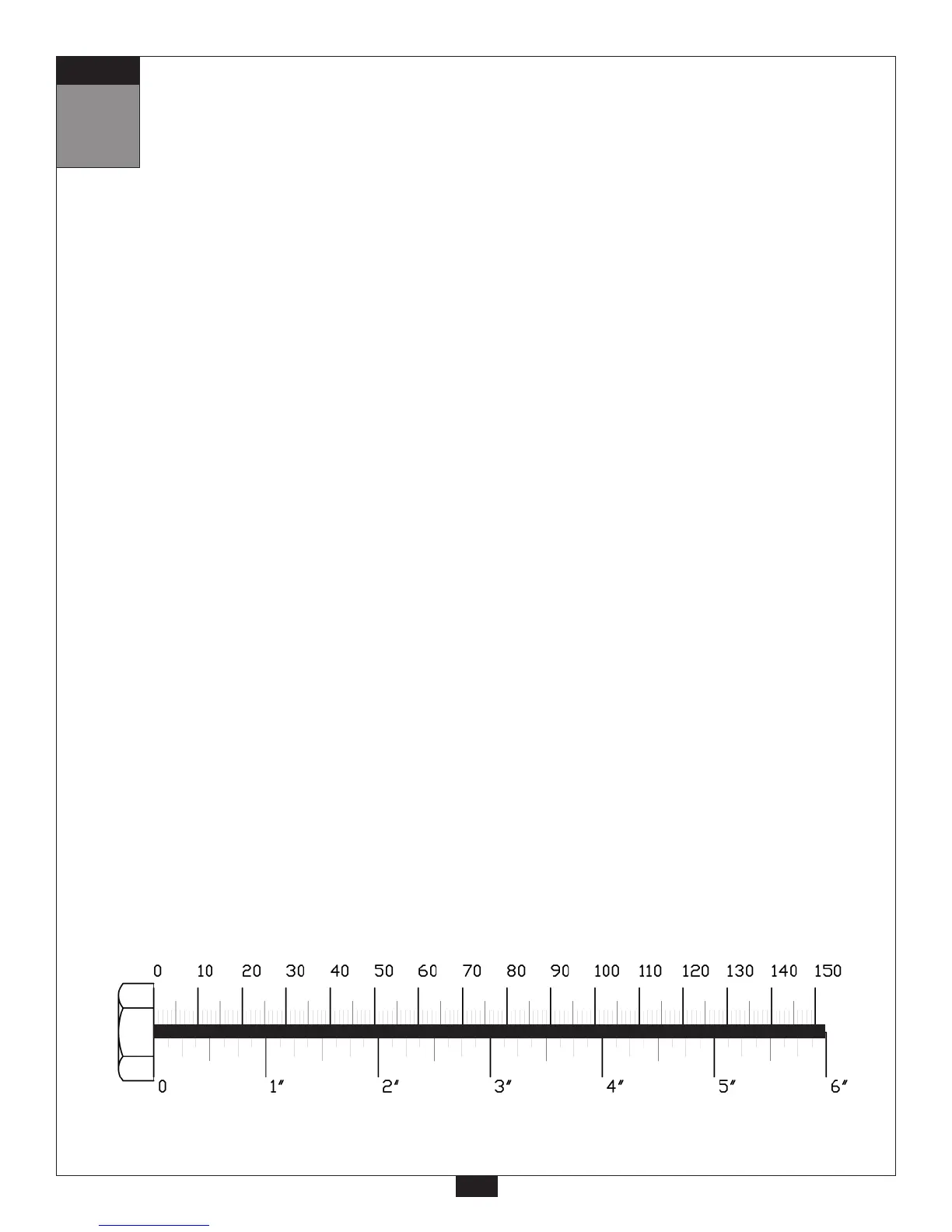

7
mm
Inch
14
STEP
A. Insert End Cap (3) to the top of Leg Extension (W).
Attach Leg Extension (W) to the Front Base Frame (C) with Shaft (126) and the pre-installed
hardware:
Two 83 (5/16” x 5/8” allen bolt)
Two 84 (5/16” washer)
B. Attach Leg Pad Holder (AB) onto Leg Extension (W) using:
One 88 (1/2” x 5 1/2” hex head bolt)
Two 73 (1/2” washer)
One 71 (1/2” nylon lock nut)
C. Attach two Leg Pads (AC) to Leg Pad Holder (AB) using:
Four 87 (5/16” x 3/4” allen head bolt)*
Four 77 (5/16” spring lock washer)
Four 75 (5/16” flat washer)
*Note:
Do not over tighten pad bolts (87), over tightening will strip the T-nuts pressed into
the wood.
D. Attach 5/16” wide Spacer (202) and two 1/2” Washers (73) to the end of the 1/2” x 5 1/2” Hex
Head Bolt (88) that is attaching the Leg Pad Holder (AB) as shown in the Reverse Side Drawing
using:
One 71 (1/2” nylon lock nut)
E. Attach L-Bracket (203) to the Front Base Frame (C) using Jam Nut (109) and Plastic Stop (110)
as shown.
Attach Jam Nut (70) onto L-Bracket (203) first, this will give you the proper spacing for the Lock
Down Hook (200).
Slide one 1/2” Washer (73), then slide the 1/4” wide Spacer (201) onto the L-Bracket (203).
Slide the Lock Down Hook (200) onto the 1/4” wide Spacer (201), and hold in place using:
One 73 (1/2” washer)
One 71 (1/2” nylon lock nut)
Be careful to assemble all components
in the sequence they are presented.
