8
Be careful to assemble all components
in the sequence they are presented.

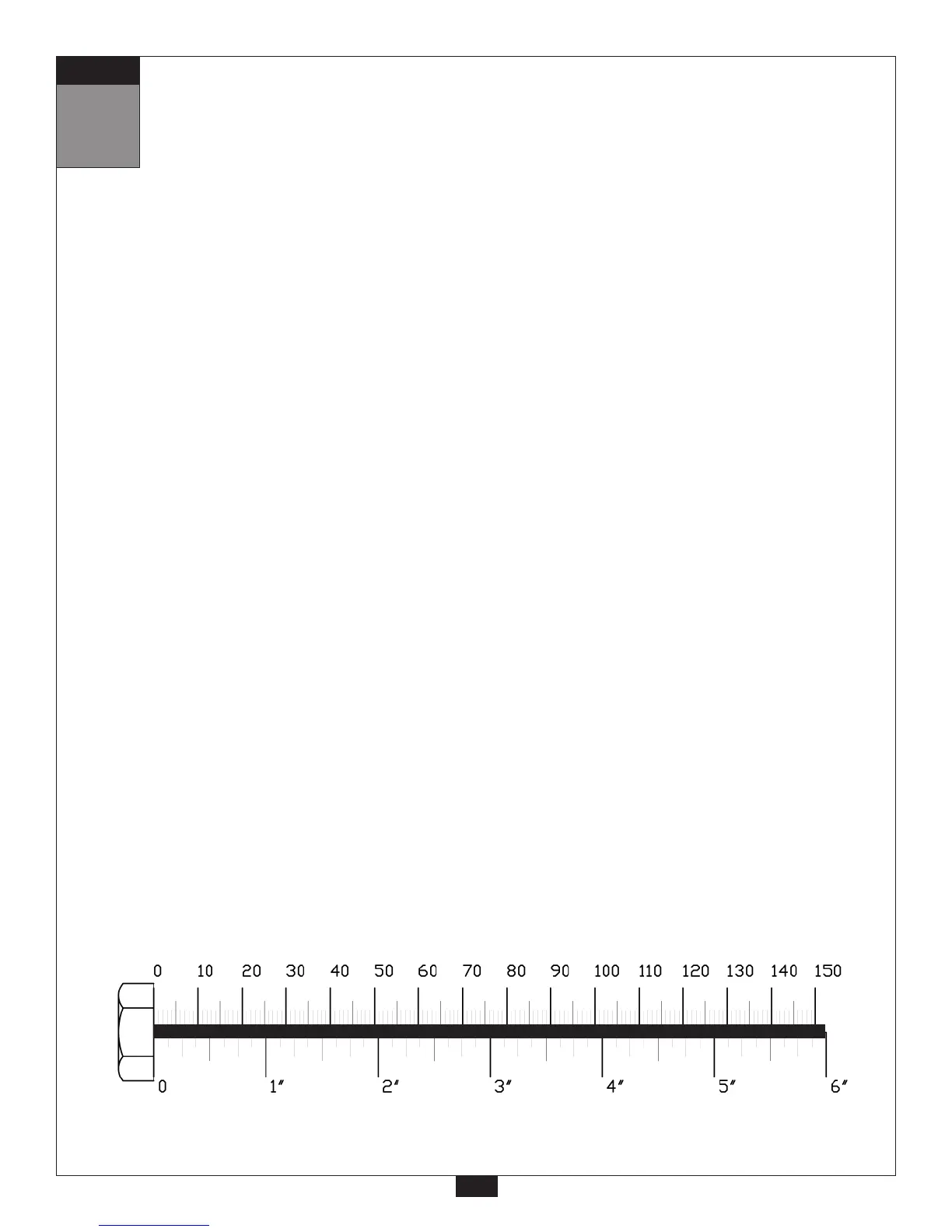

mm
Inch
16
STEP
A. Insert Wide Pulley (20) into Leg Extension (W) and hold in place using:
One 51 (3/8” x 2 3/4” hex head bolt)
Two 74 (3/8” washer)
One 72 (3/8” nylon lock nut)
B. Insert 3” Pulley (18) into Front Base Frame (C) and hold in place using:
One 51 (3/8” x 2 3/4” hex head bolt)
Two 10 (pulley spacer)
One 72 (3/8” nylon lock nut)
C. Attach three Pulleys (17) and three Pulley Covers (BA) onto the left side of the Top Side Panels (G).
also, attach three Pulleys (17) and three Pulley Covers (BA) onto the right side of the Top
Side Panels (G) as shown using:
Three 45 (3/8” x 6 1/2” hex head bolt)
Six 74 (3/8” washer)
Six 8 (1/4” spacer sleeve)
Three 7 (3” spacer sleeve)
Three 72 (3/8” nylon lock nut)
To Next Page
