10
Be careful to assemble all components
in the sequence they are presented.
mm
Inch
20
STEP
A. Route Cable (32) up and around pre-installed Pulley (A5). Leave Cable (32) hanging down toward the
weight stack.
Install 3” Pulley (A4) under
Cable (32) using:
One 48 (3/8” x 3 3/4” hex head bolt)
Two 74 (3/8” washer)
Two 5 (spacer sleeve)
One 72 (3/8” nylon lock nut)
B. See Diagram 1A. The Metal Ball End of Cable (32) should be hanging just above the weight
stack. Remove Bolt (100) from Selector Rod Top Bolt (101), slide Metal Ball End of Cable (32)
through Selector Rod Top Bolt (101). Attach Cable End Shaft (62) and securely tighten
Allen Screw (104). Pull Cable (32) tight, so Cable End Shaft (62) fits securely inside Selector Rod
Top Bolt (101). Reinstall Bolt (100) in Selector Rod Top Bolt (101).
NOTE:
Make sure the Selector Rod Top Bolt (101) is threaded inside Selector Rod (23) at least
one half inch. Make sure Spring Lock Washer (102) is in place and wrench tighten Jam
Nut (103).

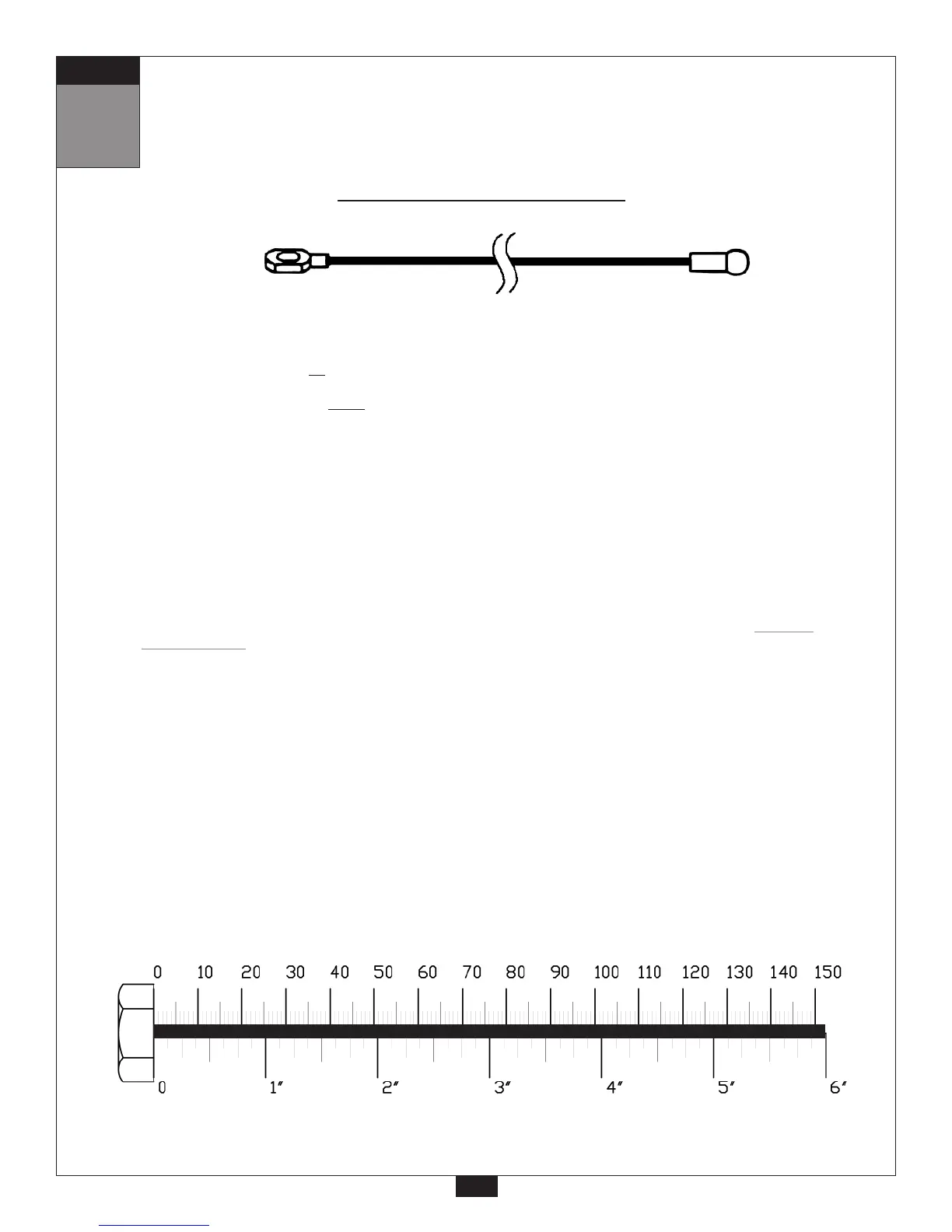

Weight Stack Cable (32)
Stamped Eye End
Metal Ball End
2670 mm
8’ 9”
To Next Page
