BODYMAX FXB30 - Assembly Step 4

14
FXB30 FOLDABLE EXERCISE BIKE
7
16
12
13
14
25
5
10
11
11
15
14
4.3 Assembly Step

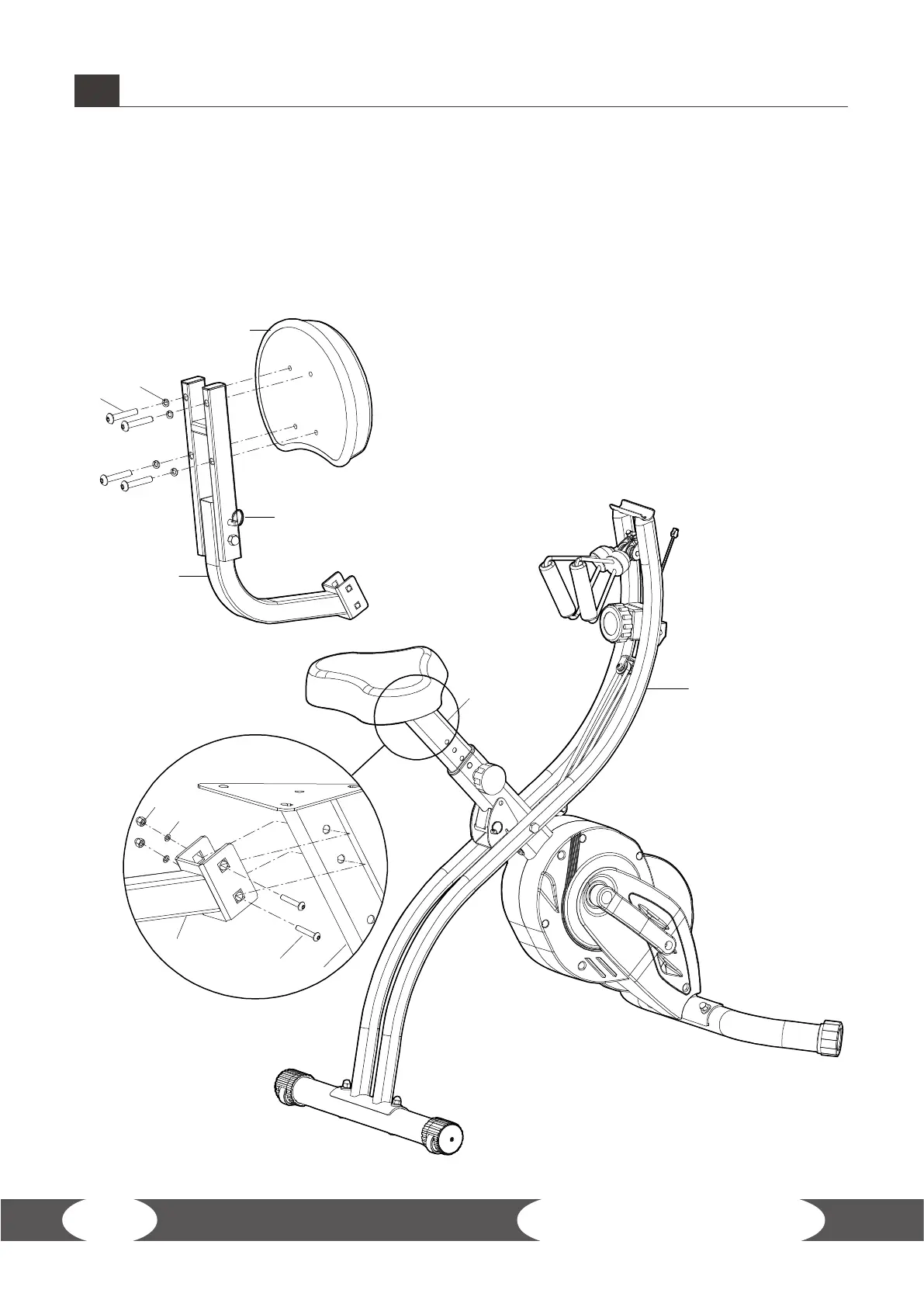

Step 4:
Pull out the Plug (25) of Seat (14) and adjust its direction like the picture, then lock the Back Washer
(16) in Seat (14) by using Bolt (13) and Spring Washer (5). Lock the Seat (14) in the corresponding
hole of Saddle tube (11) by using Bolt (15), Flat washer (16) and Nylon Nut (10).
4 ASSEMBLY
