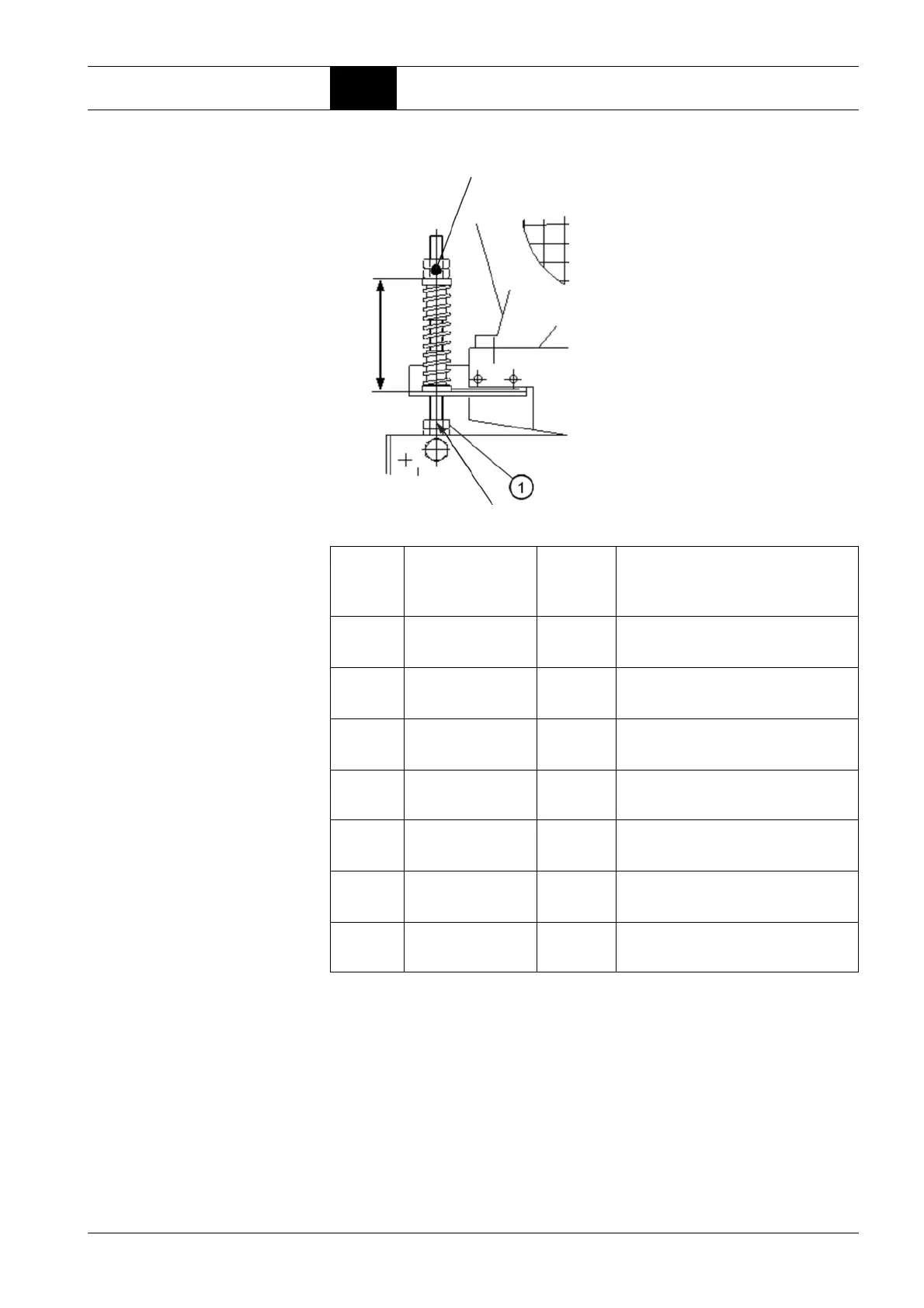

BOGE Operating instructions for C 16 N...C 30 N, C 16 F N...C 30 F N series screw compressors Page 53

Maintenance 6.3 Maintenance work compressor

Settings of the

GM-drive system

C 16 N...C 30 N,

C 16 F N...C 30 F N

Tab. 6.2: Settings for standard motors

Setting

+ 0 / - 0.04 inch

sealed

blue

The settings specified in the following

table are factory-set by the manufac-

turer and must not be changed. Slight

modifications are permissible and

compensated by the GM drive sys-

tem.

The current settings are marked on a

label attached to the GM drive sys-

tem. For special types the settings on

the label might deviate from the stand-

ard values.

1 adjusting nut

Model Pressure

[psig]

Standard

motor

[lbs.]

Setting

+ 0 / – 0.04

[inch]

C 16 N 100 / 115 / 150 / 190 254

Motor tensioning spring w/o pretension
