8-7
Getting Started
8. Select the VoIP Speaker(s) that you wish to configure (e.g., 10.10.10.3) by clicking on the
checkbox to the left of each speaker listed. A checkmark will appear next to each speaker
selected

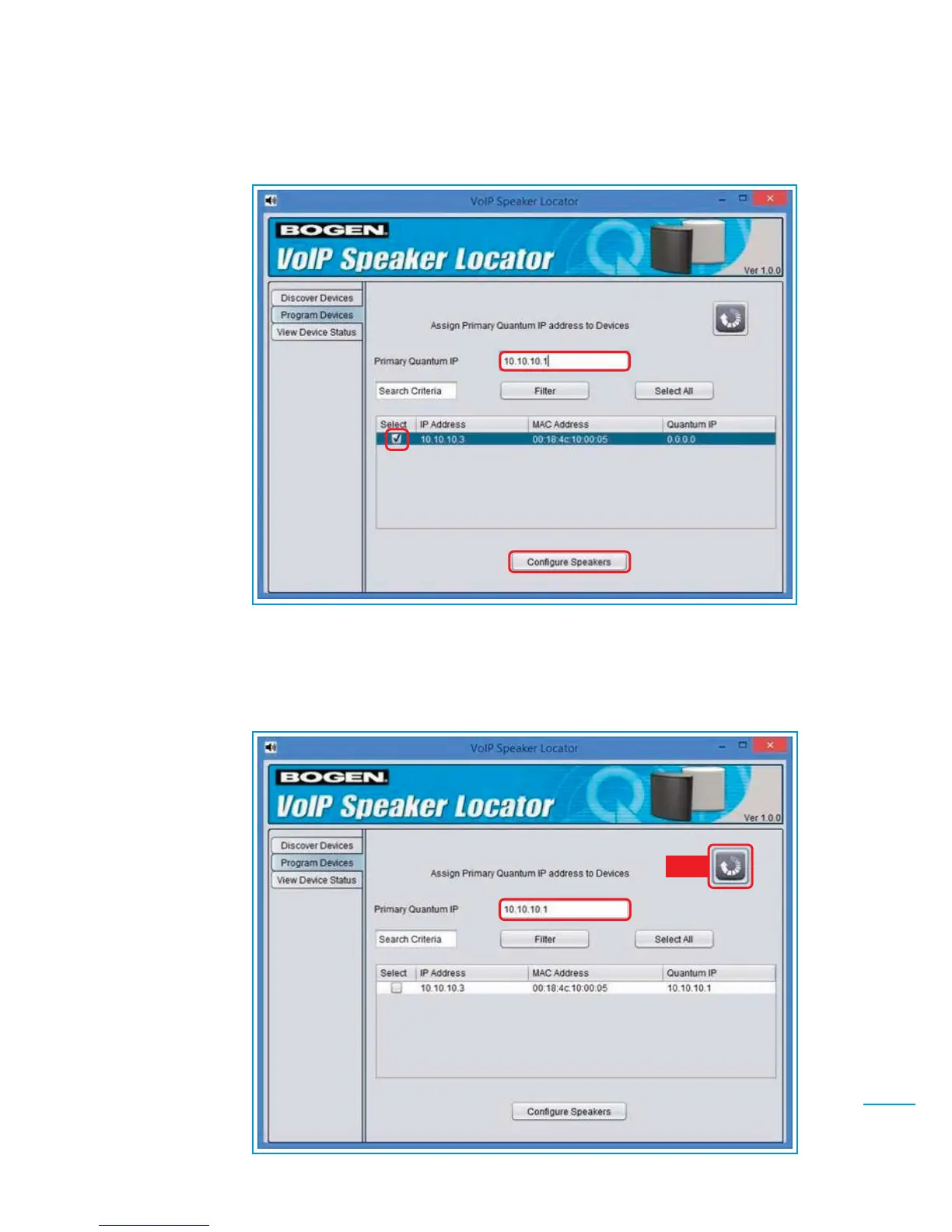

(Figure 1-5)
.
9. Enter the Primary Quantum IP Address in the Primary Quantum IP field (e.g., 10.10.10.1).
10. Click Configure Speakers. The selected speaker(s) will be configured.
11. Click the Refresh icon located to the top right of the screen a couple of times until you see
the Quantum IP Address change for all recently configured speakers. (For example, in
Figure 1-6, the speaker’s Quantum IP Address has changed from 0.0.0.0 to 10.10.10.1).
(Fig.1-5)
(Fig.1-6)
REFRESH
BUTTON
