Bohmer-AG 5000K-E - Parts Identification

K Series
© Böhmer-AG © Böhmer-AG
5
English
The K Series electric start generators use a key ignition for added
convenience however, they also feature the Gen III Recoil starting system
as a backup. For starting procedures using this method please refer to
the non ‘E’ variation instructions on page 7 of this manual for starting
procedure.
1. Engine on ignition barrel
2. Voltmeter
3. Battery
4. Circuit breaker
5. 12V DC outlet
6. 240V AC dual plug outlet
7. Recoil handle
8. Air lter
9. Fuel tap
10. Choke lever
11. Fuel ller cap
12. Fuel gauge

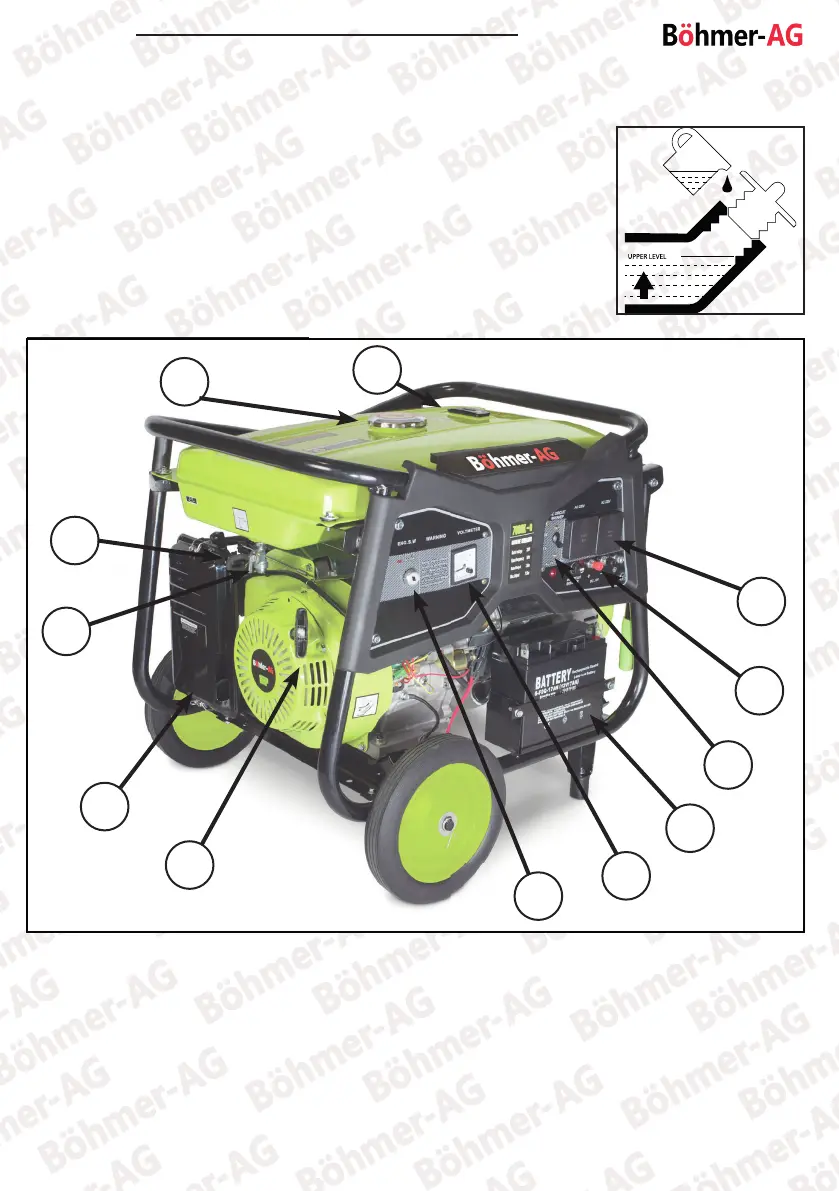

Parts Diagram 3800K-E / 5000K-E / 7000K-E
1
2
4
5
6
7
8
10
9
11
3
12
