Assembly

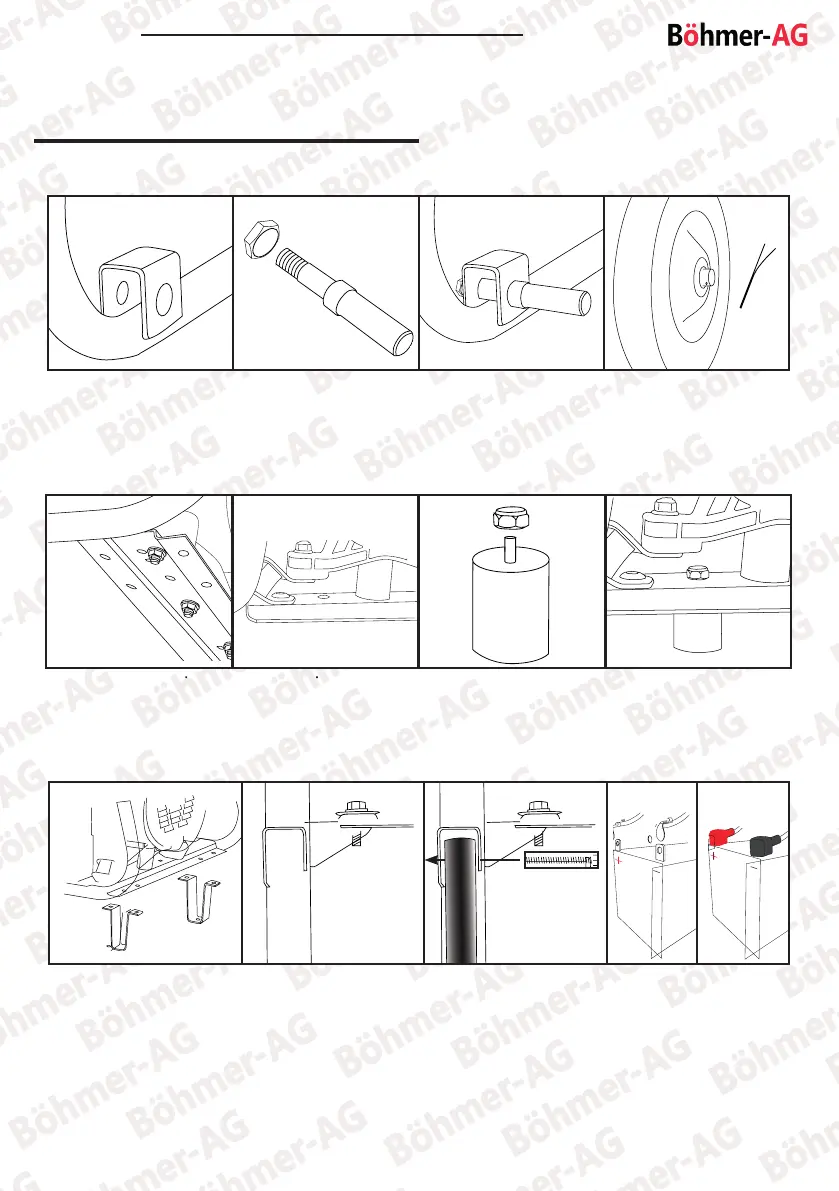

The axle mounts
are located on the
left underside of the
generator.
The front feet are tted to the pre-drilled holes
on the subframe.
The 5000K-E and
7000K-E have
additional foot mounts
which must be tted
between the feet and
the frame.
The handles are tted
to the right side of the
machine next to the
fuel tank.
Locate the holes and
secure the handles
with the nuts and long
bolts.
The battery is
connected black to
‘-’ negative, red to ‘+’
positive. Secure with
nut and bolt then shield
with terminal covers.
Slot the two axles through the mount and
secure with the nut.
Secure the wheel with
the split pin.
Fit the front rubber feet to the subframe and
secure with the nut.
