● Pull the engine carrier plate up and tighten the
fastening screws.
● Check the V-belt tension.
Changing the V-belt

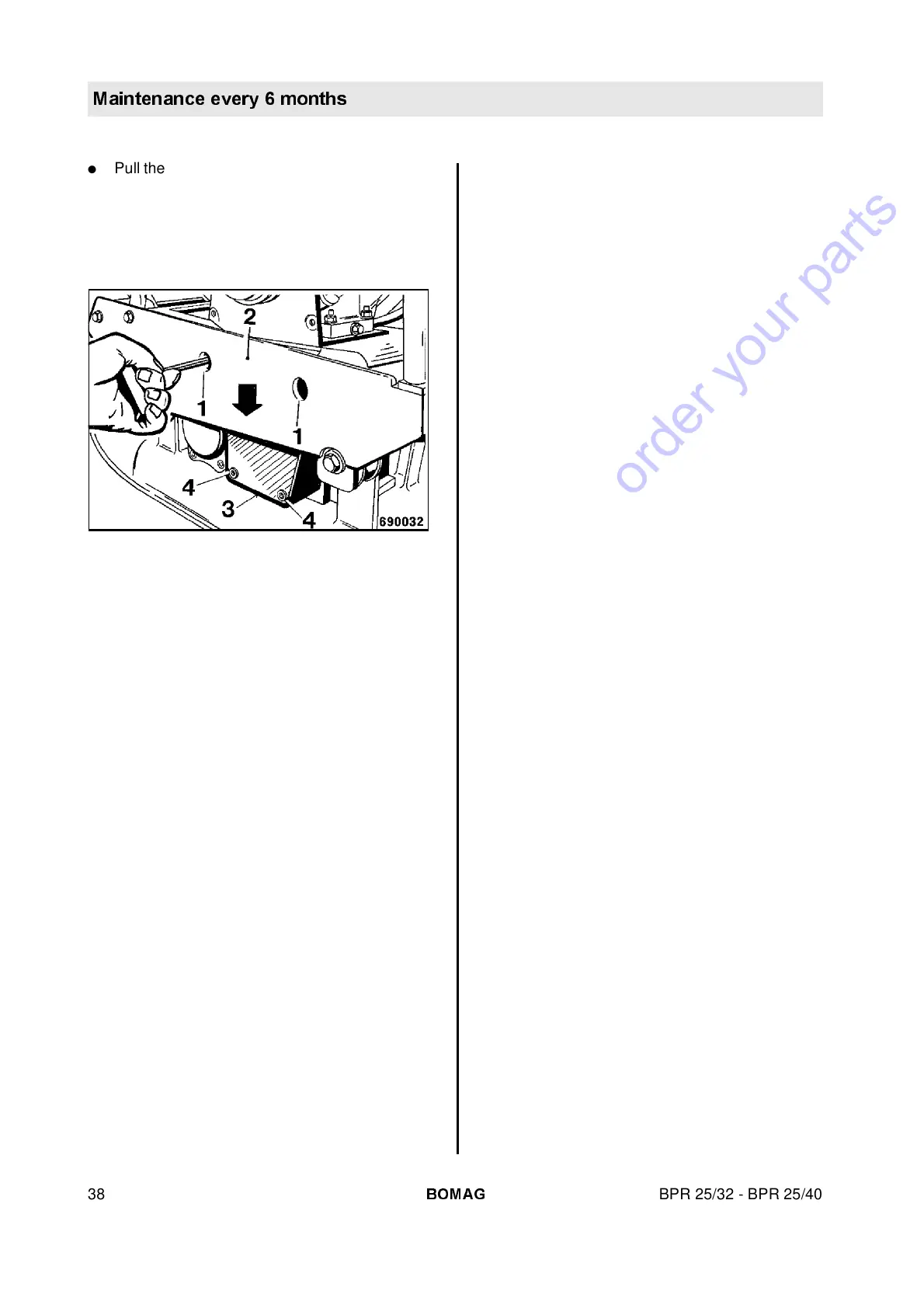

Fig. 40
● Remove the V-belt guard.
● Loosen fastening screws 1 (Fig. 40) on the V-
belt side.
● Press engine carrier plate (2) down.
● Unscrew fastening screws (1) through the
bores.
● Unscrew socket head cap screws (4).
● Remove covering plate (3).
● Replace the V-belt.
● Attach the covering plate.
● Turn socket head cap screws (4) in.
● Turn fastening screws (1) in.
Tighten the V-belt.
● Install the V-belt guard.
