NOTE: Place a rag around the throttle cable
adjuster to prevent the lubricant from splash-
ing.
Add lubricant until it runs out at carburetor end
of the throttle cable.
Reinstall and adjust the cable.
Throttle Lever Adjustment
Slide rubber protector back to expose throttle
cable adjuster.
Loosen lock nut then turn the adjuster to ob-
tain correct throttle lever free play.
NOTE: Measure throttle free play at the tip of
throttle lever.
Tighten lock nut and reinstall protector.

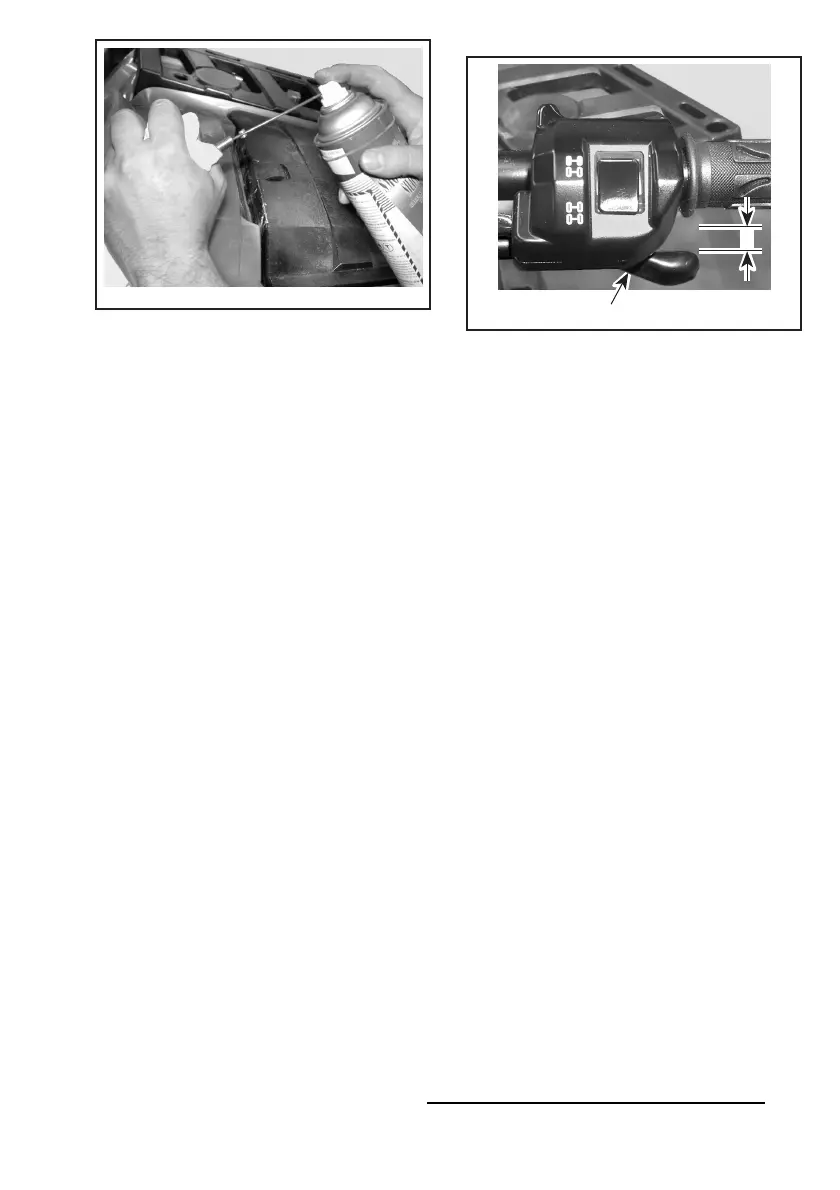

1. Throttle lever
A. 3 to 6 mm (1/8 to 7/32 in)
With the transmission lever on PARK position,
start the engine. Check if the throttle cable is
adjusted correctly by turning handlebar fully
right then fully left. If the engine RPM increas-
es, readjust the throttle lever free play.
Suspension
Lubrication
Lubricate front A-arms. Use suspension syn-
thetic grease (P/N 293 550 033) or an equiv-
alent. There is two grease fittings on each A-
arm.
Inspection
Front Suspension
Inspect the McPherson struts for oil leaks or
other damages. Check tightness of fasteners.
See an authorized Bombardier ATV dealer as
necessary.
