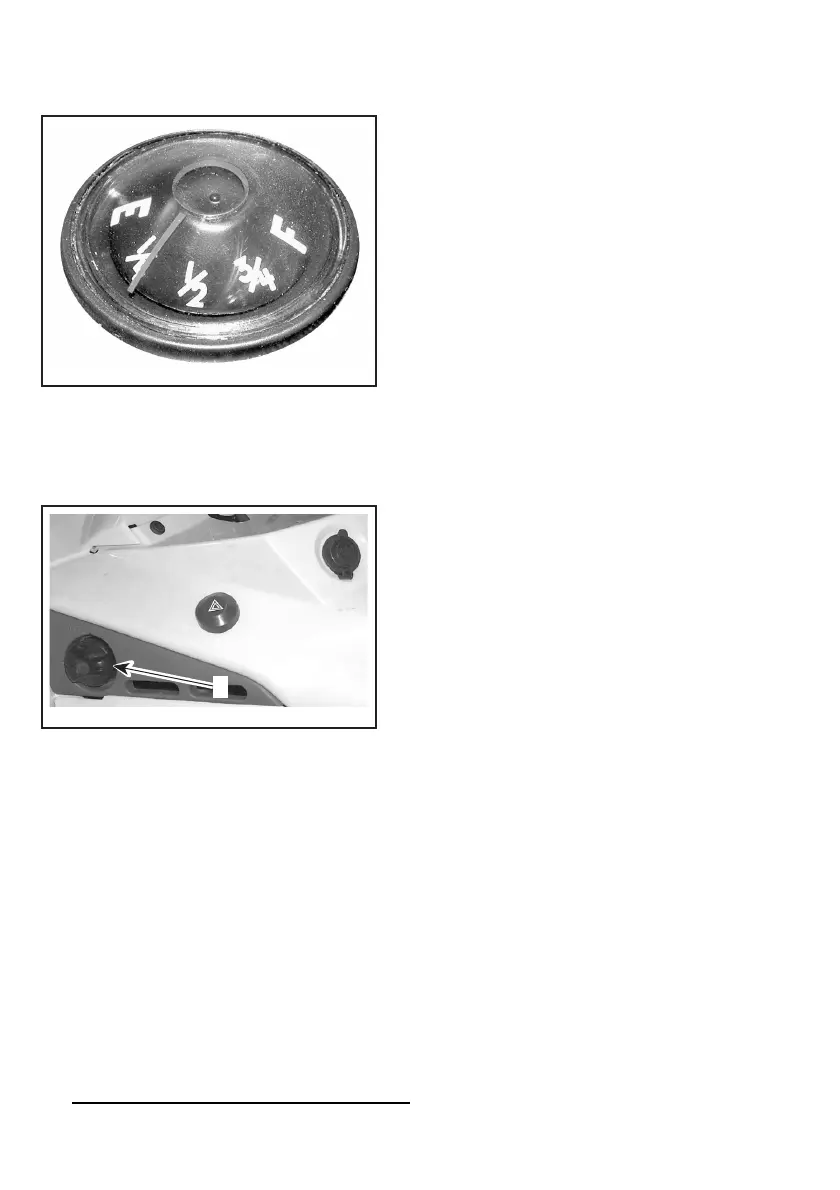

15) Fuel Gauge
Located on the left side of the rear fender near
fuel tank cap, the gauge shows an approxi-
mate amount of the fuel in tank.
16) Fuel Valve
Located on left side panel under console. This
is a 3-position rotary valve: OFF, ON, RES.
Rotate the knob to align its pointer with ON,
OFF or RES.
1. Align this pointer toward the desired
position
OFF
Stops fuel supply to carburetor.
CAUTION: Turn valve to OFF position when
vehicle is not being operated or when trans-
porting.
ON
Allows fuel to flow to carburetor. This is the
normal position for operation of the vehicle.
RES (reserve)
When fuel is exhausted in the fuel tank when
in the ON position, an emergency supply of
fuel is available by turning the knob to RES.
The reserve contains approximately 12% of
the fuel tank capacity. Use this position only
when the ON supply is empty.
When down to the reserve, refuel as soon as
possible. Ensure to turn the valve back to the
ON position after refuelling.
CAUTION: Improper opening of fuel valve
will restrict the flow of fuel. Make sure valve is
fully opened while running.
