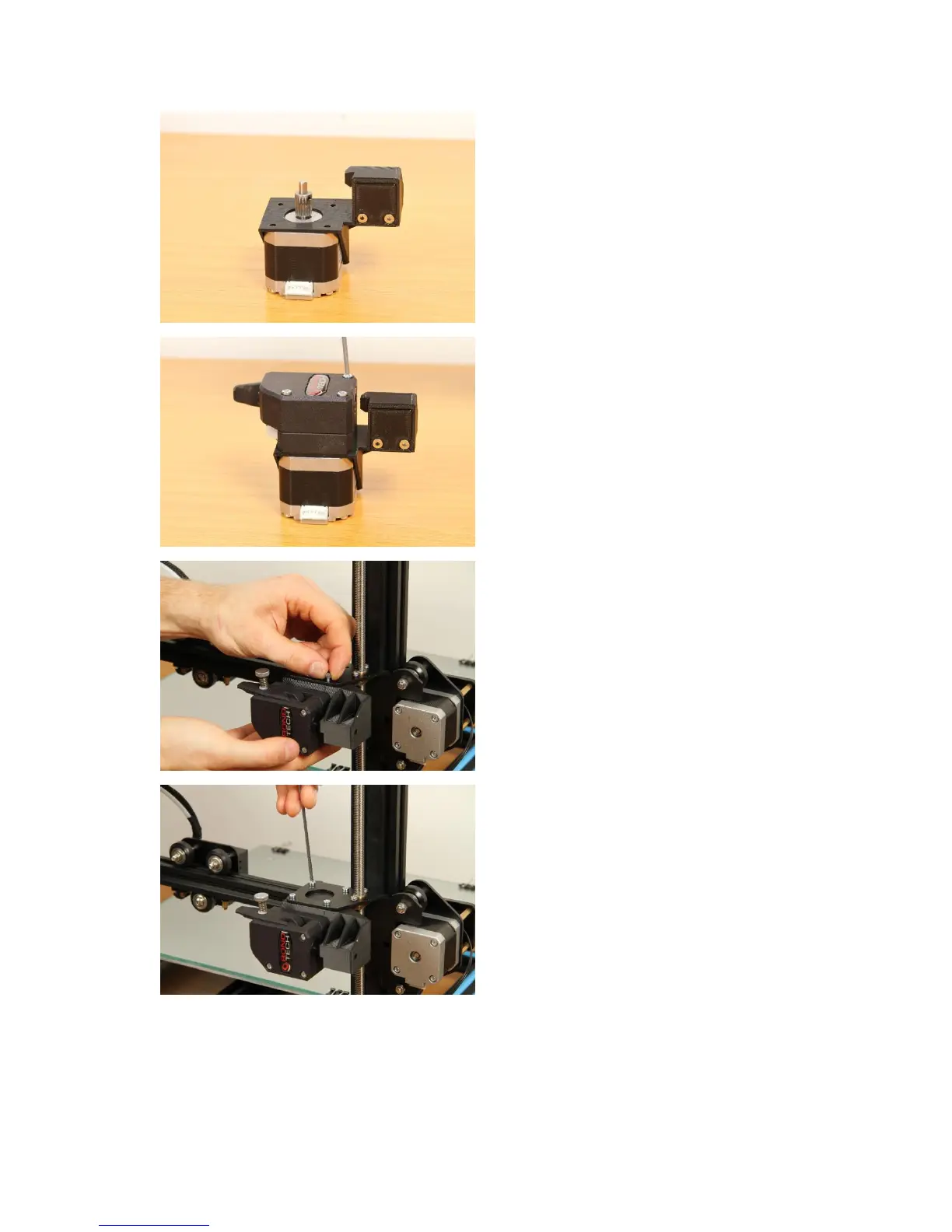

● Place the mount onto the motor
with the connector facing as in
the photo.
● Place the extruder onto the
mount, be careful and guide the
motor gear into the extruder so it
has the correct position for the
white gear. Tighten the screws to
hold it together.
• Place the extruder with the bracket
and use the included M3x8 bolts to
secure it to the bracket on the
printer.
● Tighten all 4 screws.
