BONEX-SCOOTER
Instruction for use
Version: 2016_08 Page 15

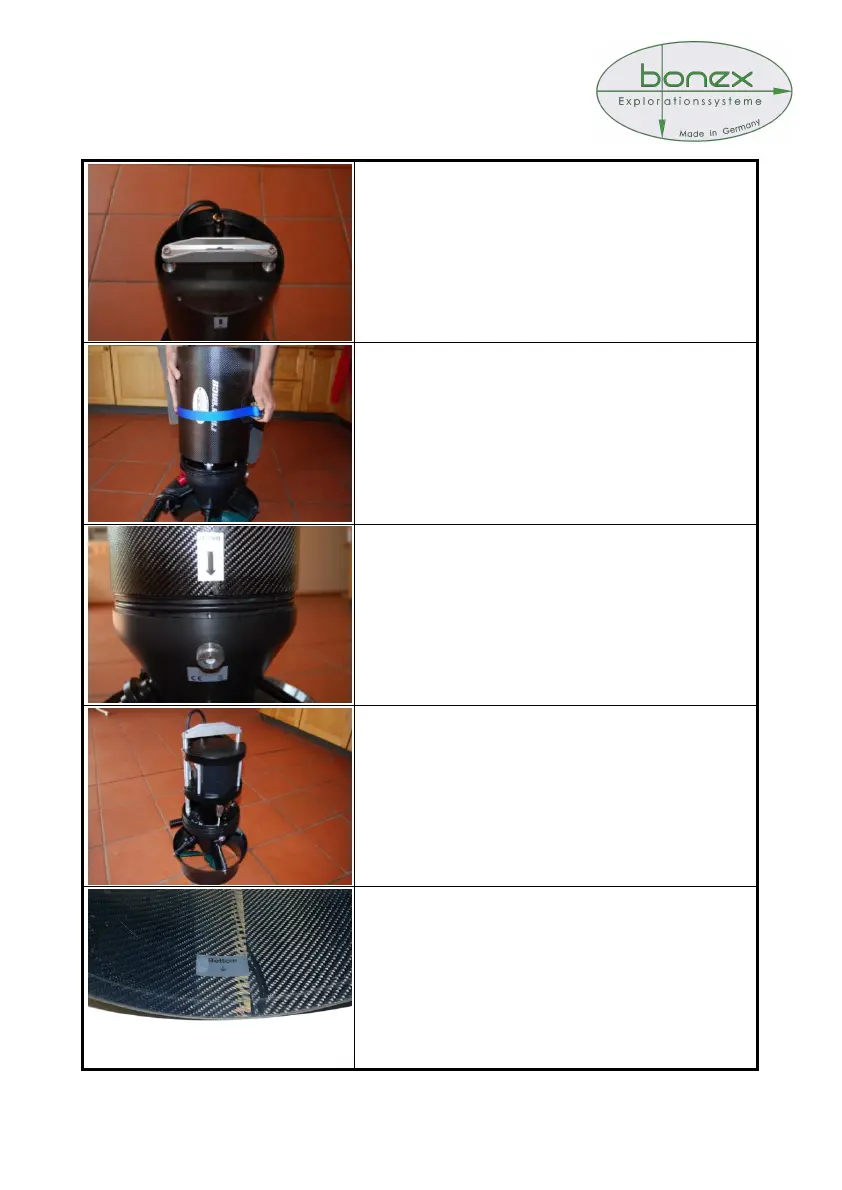

View of scooter with nose removed.
If Tube has not been removed for a longer
time it is possible that the two O-ring
,
displace
the smear layer and you need an
intensified force to remove the Tube.
In case of this, use the proper fixed „Tube-
Remover“ as shown in the picture.
View of the lower Tube edge after Tube
has
been lifted slightly.
You will find the „Bottom-Sticker”
normally
at the inner surface of the Tube and it
is
aligned to the zinc anode.
View of the scooter after removing the
nose
and the Tube
Inner view of the Tube with the „Bottom-
Sticker“ at lower edge.
This edge
must be aligned downwards in
direction to the propeller.
It is advised to align the „Bottom-Sticker“
towards the zinc anode.
