BONEX-SCOOTER
Instruction for use
Version: 2016_08 Page 16

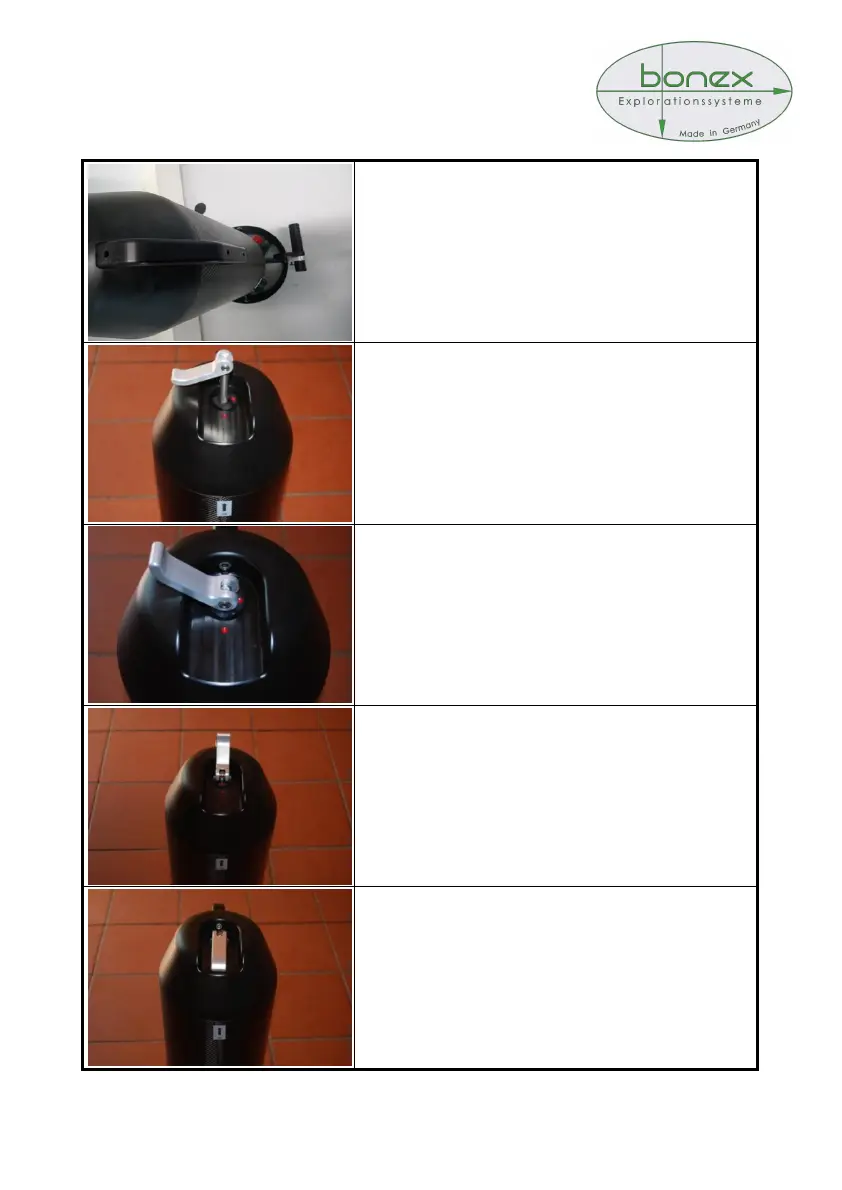

When refitting the T
ube pay attention to the
correct position of the “Logo-Signs”.
Push
the nose with slight force downwards to
refit
it to the scooter.
To do this way,
the system handle must be
aligned to the drive switch (trigger).
To close the nose,
the red dot on the
pres
sure plate must be aligned to a position
at 3 a clock or a position at 9 a clock.
D
uring this procedure the second red dot
remains at 6 a clock.
Push the silver eccentric lever downwards
until it gets in contact to the pressure plate.
During this procedure the lever is orientated
backwards.
Now turn the silver eccentric lever to th
e
right or the left side for 90°,
until the two red
dots are aligned again.
To do so, the lever must be aligned into a
complete vertical position.
At least force the silver eccentric
lever
downwards until it becomes
contact to the
nose surface.
The scooter is now closed.
### NEVER USE EXTREME FORCE TO
CLOSE THE SCOOTER ###
If necessary control complete mounting!
