c) Brake control
For gearmotors equipped with brakes, there are two motor versions available, i.e. the B02P or
P010 executions.
In the B02P version, the motor has an in-built, direct brake control system.
In the P010 version, an auxiliary branching is required to control the brake.

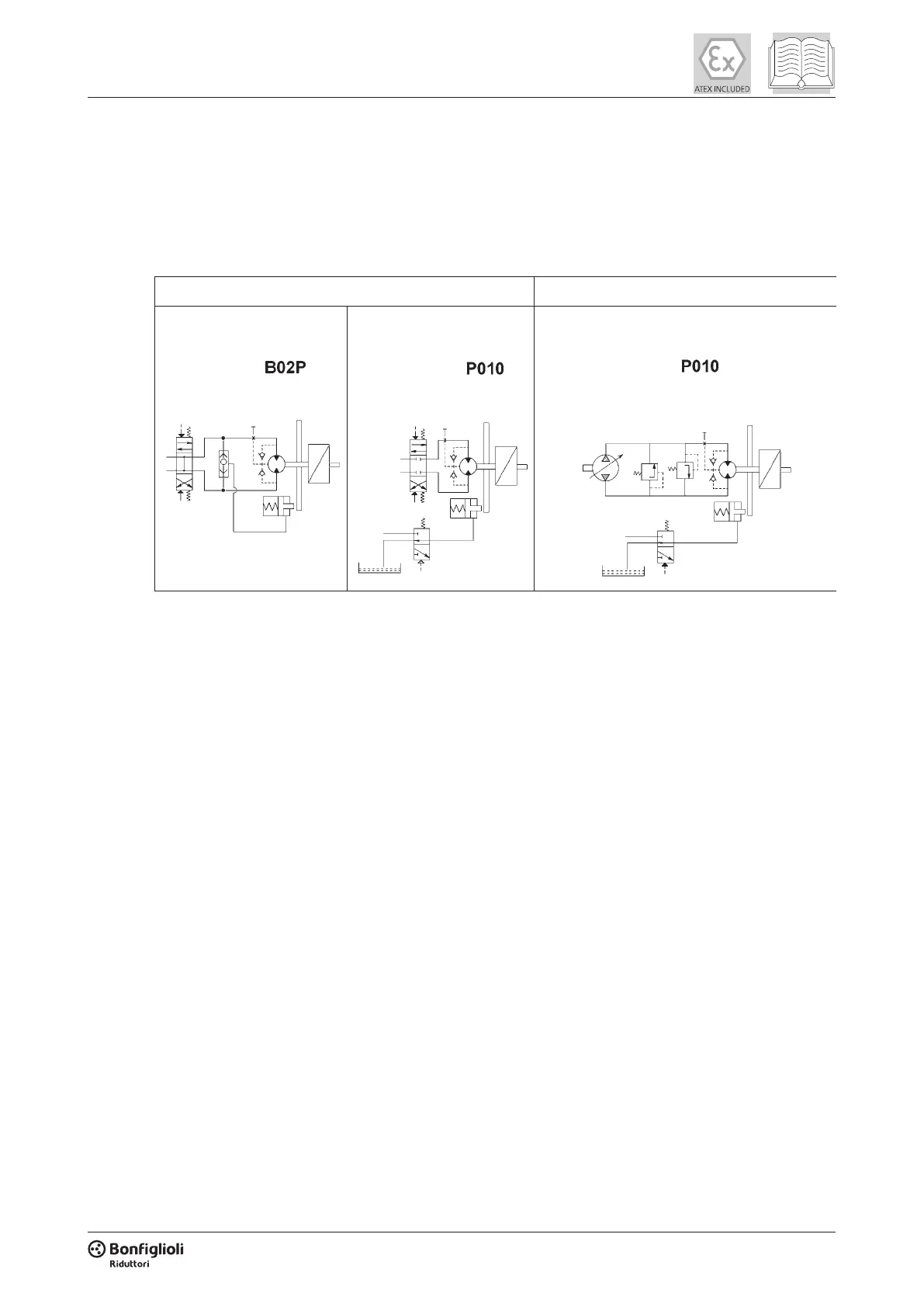

See the following diagram.
d) Hydraulic oil
Use hydraulic mineral oil with viscosity ISO VG 46 (46 Cst at t = 40°C).
e) Oil ltering
For reliable motor operation and long life, it is important that the hydraulic circuit has a lter for a
proper oil ltering according to the following degree:
degree 9 NAS 1638
degree 6 SAE
degree 18/15 SO DIS 4406
