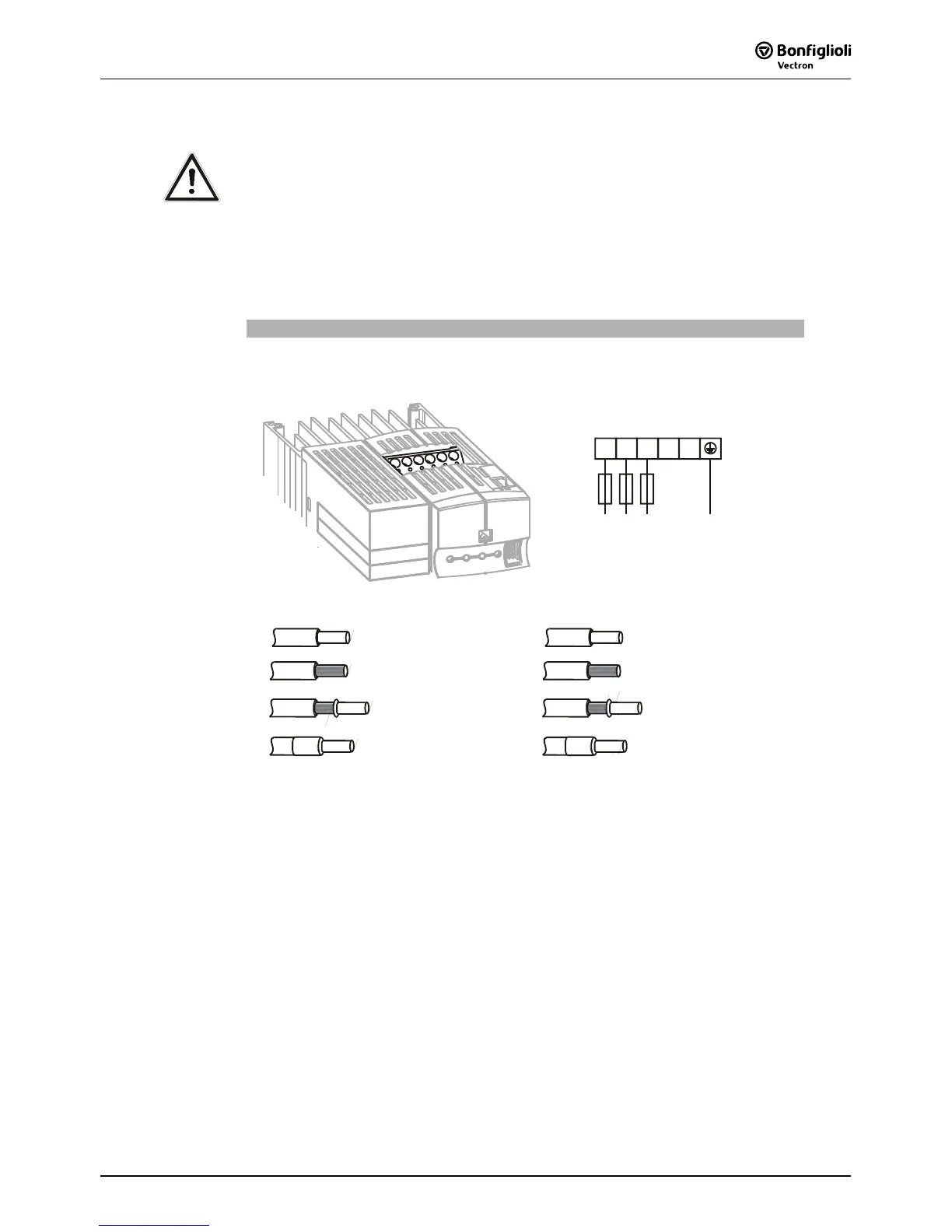

5.3.2 Frequency Inverter (5.5 to 15.0 kW)
Danger! Switch off power supply before connecting or disconnecting the
mains cable to terminal X1 Dangerous voltage may be present at the
mains terminals and the DC terminals even after the frequency inverter
has been disconnected safely from power supply. Wait for some
minutes until the DC link capacitors have discharged before starting the
work.
• The unit may only be connected with the power supply switched off.
• Make sure that the frequency inverter is discharged.
Mains power connection 5.5 kW to 15.0 kW
0.2 … 6 mm
AWG 24 … 10
2
5.5 kW … 9.2 kW
WAGO Line 745 / 6qmm / RM7,5
0.2 … 6 mm
AWG 24 … 10
2
0.25 … 4 mm
AWG 22 … 12
2
0.25 … 4 mm
AWG 22 … 16
2
+
-
L1
L2 L3L1
L2
L3 PE
3ph / 400V AC
X1
0.2 … 16 mm
AWG 24 … 6
2
11 kW … 15 kW
WAGO Line 745 / 16qmm / RM10+1
5
0.2 … 16 mm
AWG 24 … 6
2
0.25 … 10 mm
AWG 22 … 8
2
0.25 … 10 mm
AWG 22 … 8
2
X1
