5.5.3 Frequency Inverter (18.5 to 30 kW)

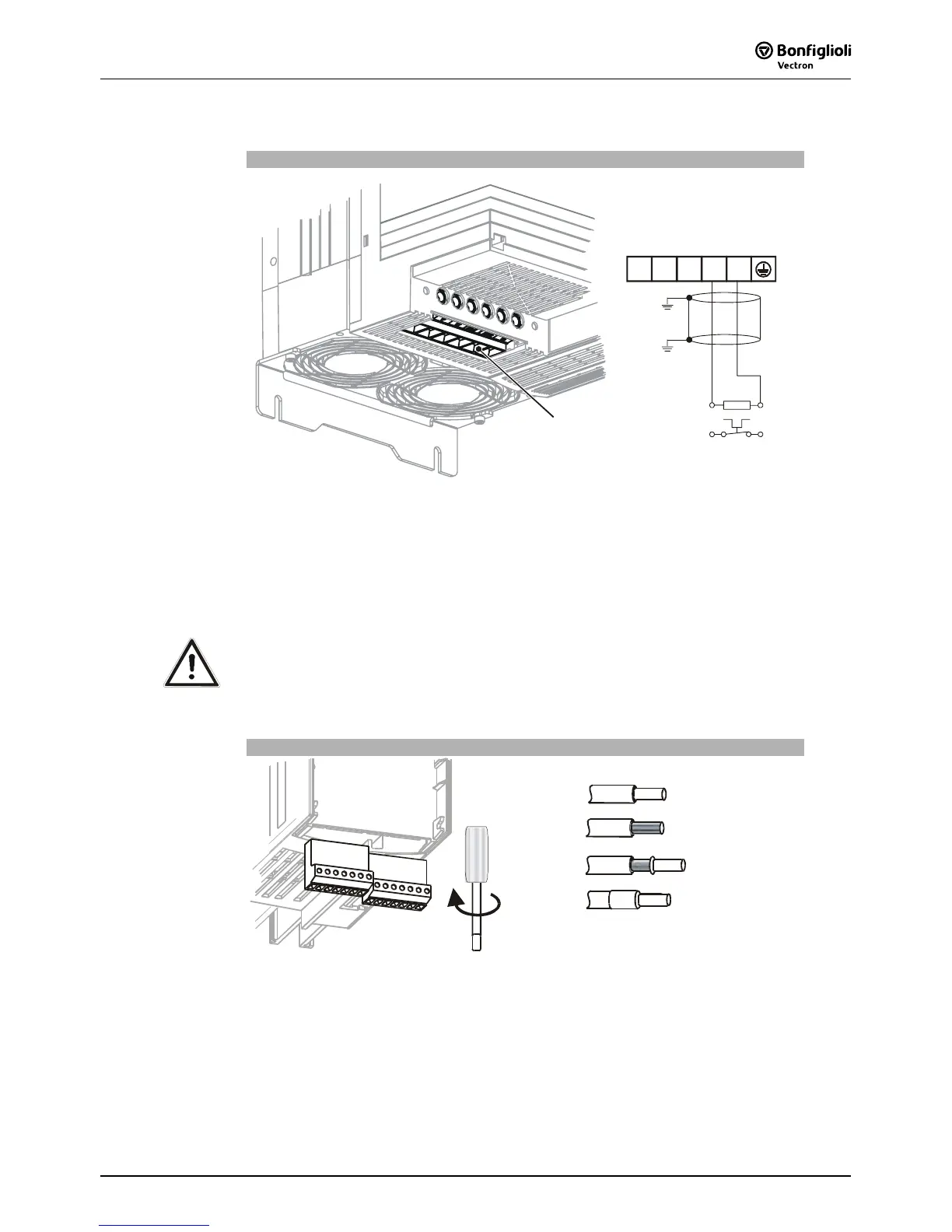

Connection of brake resistor with temperature switch
R
b
T1
Rb1 Rb2
T2
V WU
Rb2Rb1
X2
X
2
5.6 Control Terminals
The control and software functionality can be freely configured to ensure a reliable
and economical operation. The operating instructions describe the factory settings of
the standard connections in the relevant
Configuration 30 as well as the software
parameters to be set up.
Caution! Switch off power supply before connecting or disconnecting the keyed
control inputs and outputs. Otherwise, components may be damaged.
• The unit may only be connected with the power supply switched off.
• Make sure that the frequency inverter is discharged.
Control Terminals
0.14 … 1.5 mm
AWG 30 … 16
2
Wieland DST85 / RM3,5
0.14 … 1.5 mm
AWG 30 … 16
2
0.25 … 1.0 mm
AWG 22 … 18
2
0.25 … 0.75 mm
AWG 22 … 20
2
0.2 … 0.3 Nm
1.8 … 2.7 lb-in
