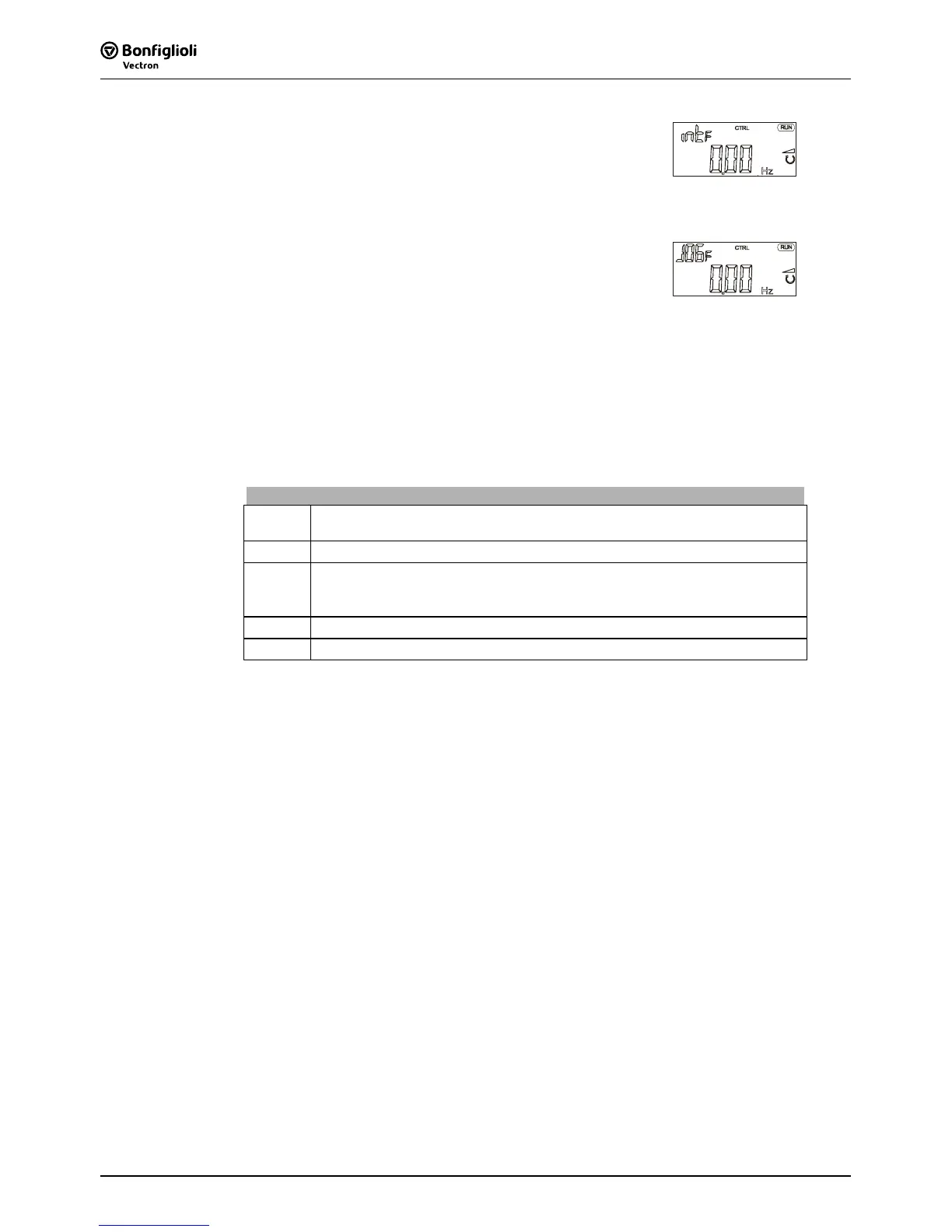

Internal reference value int
The drive is in operation, i.e. output signals are present at the
frequency inverter and the current actual value is displayed.
Press an arrow key to switch to the motor potentiometer
function Pot. The current frequency value is taken over in the
motor potentiometer function Pot.
JOG frequency JOG
This function is useful for manual setup and positioning of a
machine. The frequency of the output signal is set to the
entered value if the FUN key is pressed.
• Press FUN key to switch from the internal reference value
int or the motor potentiometer function Pot to the
JOG-
Frequency
489.
• Keep the FUN key pressed and press the arrow keys to
adjust the required frequency.
(The frequency value last adjusted is saved as the
JOG-
Frequency
489.)
• Release the FUN key to stop the drive.
(The display returns to the previous function Pot or int.)
Key functions
ENT
Reversal of the direction of rotation independent of the control signal on
the terminals Clockwise S2IND or Anticlockwise S3IND.
ESC Cancel function and return to the menu structure.
FUN
Switch from internal set point int or rather motor potentiometer function
Pot to JOG frequency; the drive starts.
Release the key to switch to the sub-function and stop the drive.
RUN Start drive; alternative to control signal S2IND or S3IND
STOP Stop drive; alternative to control signal S2IND or S3IND
Attention! If you press the ENT key, the direction of rotation is changed
independent of the signal on the terminals Clockwise S2IND or
Anticlockwise S3IND.
If the
Minimum Frequency 418 has been set to 0.00 Hz, the direction
of rotation of the motor changes as soon as the sign of the reference
frequency value changes.
