BONFIGLIOLI BX Series User Manual

16 / 32
IOM BX-BE-BN-MX-ME-M_eng - Translation of original instructions in Italian - Rev 02_0 - 30/09/16

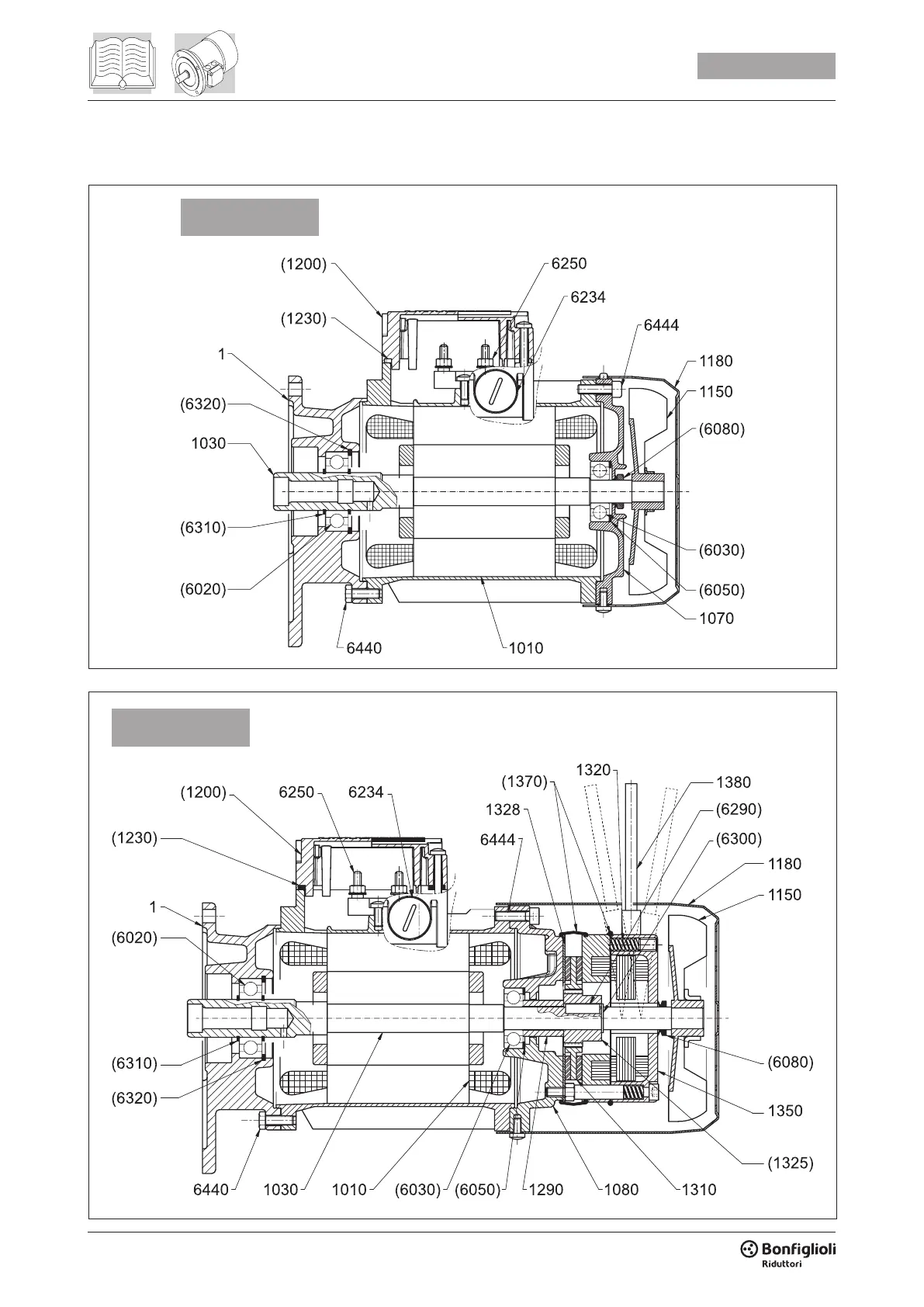

8 SPARE PARTS
M05
M05
M05 FA
6440 1030
1010 (6030) (6050)
1080 1290
(6320)
(6310)
1030
(6020)
1
(1230)
(1200)
(1240)
6250
(1220) 6234 1390 6444
1328
(1370)
1320 1360
1180
1150
(6290)
6300
(6080)
1310
(1325)
1300
M05 FD
kit ref. Description
M05
M05 FD
M05 FA
1 Motor  ange
1010 Stator
1030 Rotor
1150 Fan
1180 Fan cowl
KSM
(1200) Terminal box
(1230) Terminal box gasket
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6310) Circlip
(6320) Circlip
6234 Blank plug
6250 Terminal board
6440 Flange bolt
6444 NDE shield bolt
M05
1070 Rear shield
KSA (6080) V-ring
kit ref. Description
M05 FD
M05 FA
1080 Shield for brake motor
1290 Spacer ring
1310 Brake disc
1320 Brake springs
KTF
(1325) Brake hub
(6290) Key (brake hub)
(6300) Circlip
1328 Stainless steel disc
KPF
(1370) Water/dust guard (IP55)
(6080 Brake seal ring/V-ring (IP55)
M05 FD
KSM
(1220) Terminal box lid
(1240) Terminal box lid gasket
1300 d.c. brake type FD
1360 Brake release
1390 ac/dc recti er
M05 FA
1350 a.c. brake type FA
1380 Brake release
(####) Only available as a complete kit
