BONFIGLIOLI BX Series User Manual

19 / 32
IOM BX-BE-BN-MX-ME-M_eng - Translation of original instructions in Italian - Rev 02_0 - 30/09/16

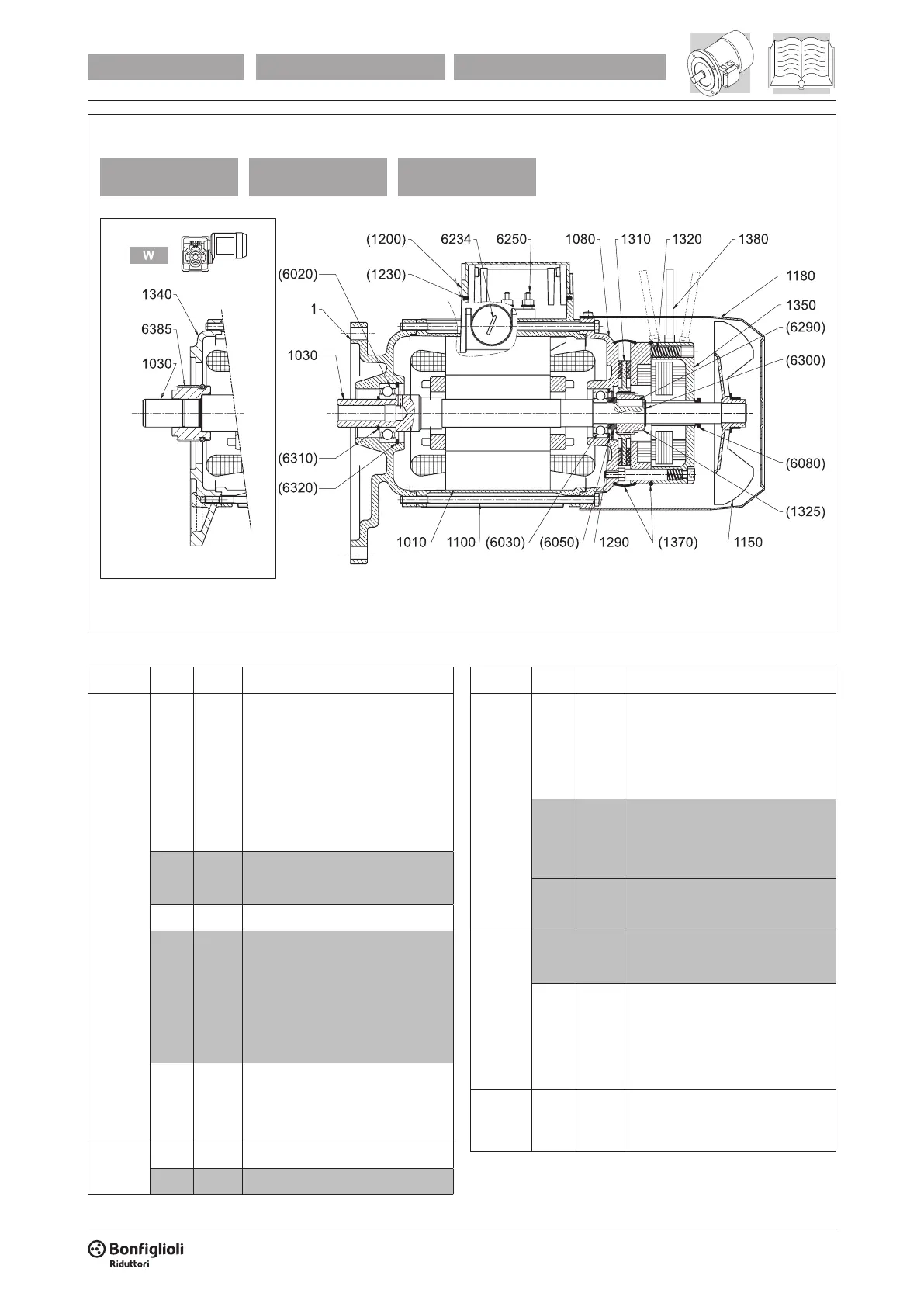

ME2 ... ME4 MX2 ... MX4M1 ... M4
M/ME
MX
1010 1100 (6030) (6050)
(1370) 1290
1300
(1325)
(6080)
(6300)
(6290)
1150
118013601320
1310
1328
1080(1230)62506234(1220)
(1240)
1390
(1200)
(6020)
1
1030
(6310)
(6320)
1340
6385
1030
M/ME
MX
M_ ME_ MX_
M_ FD ME_ FD MX_ FD
M/ME
MX
M_ FA ME_ FA MX_ FA
kit ref. Description
M_
M_ FD
M_ FA
ME_
ME_ FD
ME_ FA
MX_
MX_ FD
MX_ FA
1 Motor  ange
1010 Stator
1030 Rotor
1100 Tie-rods
1150 Fan
1180 Fan cowl
KSM
(1200) Terminal box
(1230) Terminal box gasket
1340 Motor  ange for W gearbox
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6310) Circlip
(6320) Circlip
6234 Blank plug
6250 Terminal board
6385 Kit bushing for W gearbox
M_ / ME_
MX_
1070 Rear shield
KSA (6080) V-ring
kit ref. Description
M_ FD
M_ FA
ME_ FD
ME_ FA
MX_ FD
MX_ FA
1080 Shield for brake motor
1290 Spacer ring
1310 Brake disc
1320 Brake springs
KTF
(1325) Brake hub
(6290) Key (brake hub)
(6300) Circlip
KPF
(1370) Water/dust guard (IP55)
(6080) Brake seal ring/V-ring (IP55)
M_ FD
ME_ FD
MX_ FD
KSM
(1220) Terminal box lid
(1240) Terminal box lid gasket
1300 d.c. brake type FD
1328 Stainless steel disc
1360 Brake release kit
1390 ac/dc recti er
M_ FA
ME_ FA
MX_ FA
1350 a.c. brake type FA
1380 Brake release kit
(####) Only available as a complete kit
