BONFIGLIOLI BX Series User Manual

24 / 32
IOM BX-BE-BN-MX-ME-M_eng - Translation of original instructions in Italian - Rev 02_0 - 30/09/16

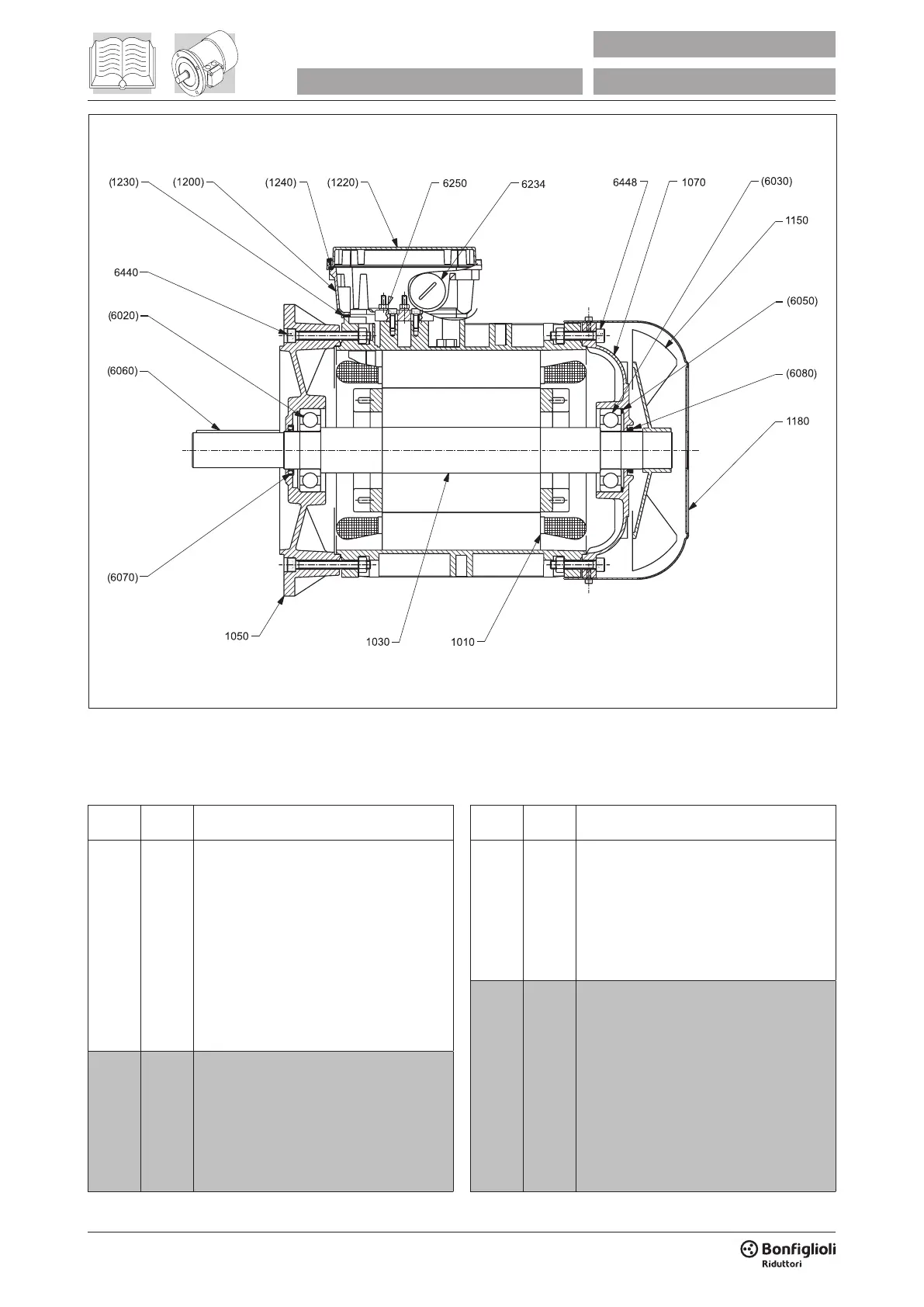

BN 160M ... BN 200 BE 160 , BE 180
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (IM B5)
1070 Rear shield
1150 Fan
1180 Fan cover
KSM
(1200) Terminal box
(1220) Terminal box lid
(1230) Terminal box gasket
(1240) Lid gasket
kit ref. Description
6234 Blank plug
6250 Terminal board
6440 DE  ange bolts
6448 NDE shield bolts
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6060) Key
(6070) Seal ring
(6080) V-ring
(####) Only available as a complete kit
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (B5/B14)
1080 Rear shield
1150 Fan
1180 Fan cover
KSM
(1200) Terminal box
(1220) Terminal box lid
(1230) Terminal box gasket
(1240) Lid gasket
1290 Spacer ring
1300 d.c. brake type FD
1310 Brake disc
1320 Brake springs
KTF
(1325) Brake hub
(6290) Key (brake hub)
(6300) Circlip
kit ref. Description
1328 Stainless steel disc (IP55)
1360 Hand release lever
KPF
(1370) Grommet (IP55)
(6080) V-ring (IP55)
1390 ac/dc recti er
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6060) Key
(6070) Seal ring
6234 Blank plug
6250 Terminal board
6440 Flange bolt
6444 NDE shield bolts
(####) Only available as a complete kit
BX 160 , BX 180
