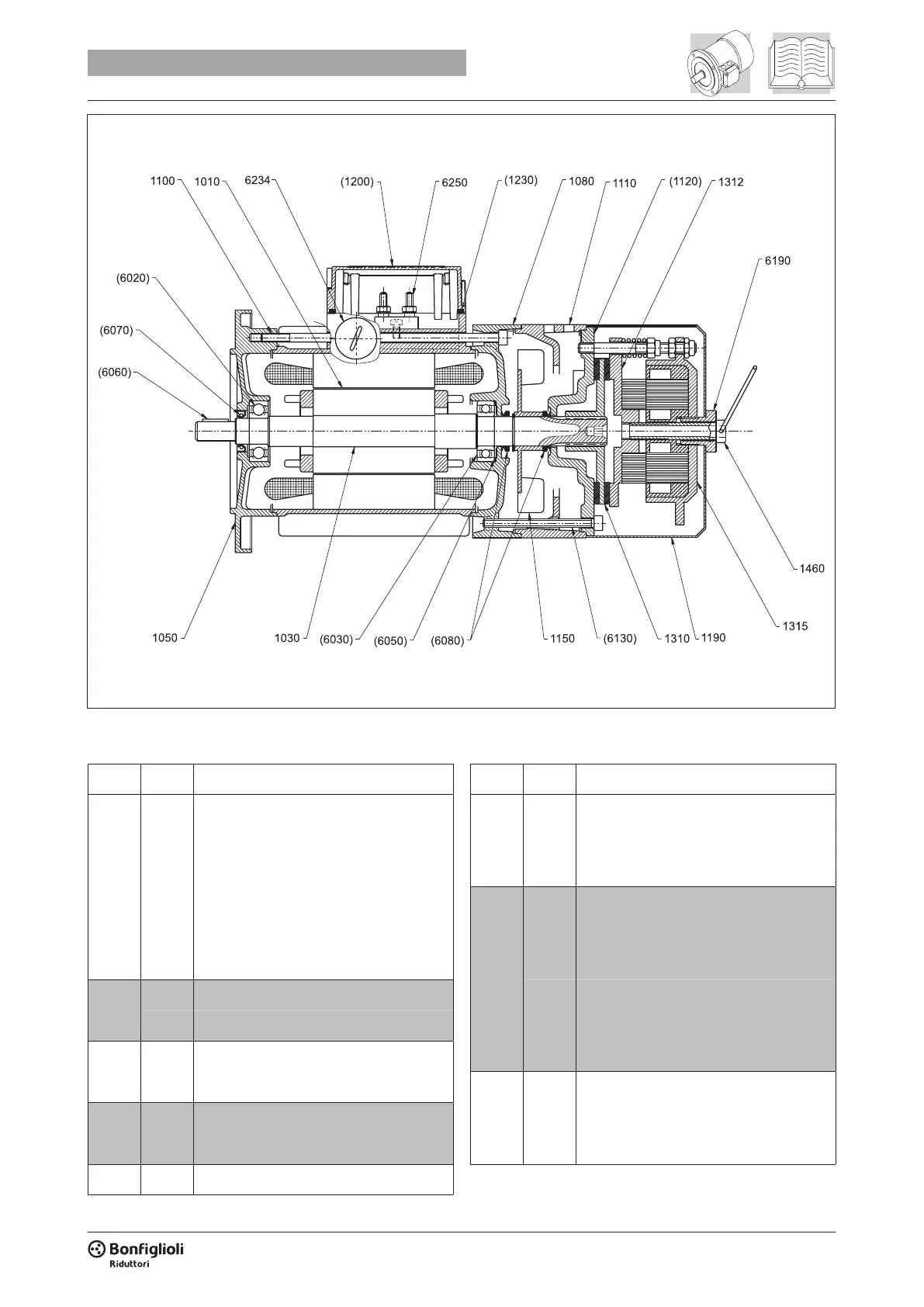

BN 63 BA ... BN 132 BA
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (IM B5)
1080 Rear shield
1150 Fan
1180 Fan cowl
KSM
(1200) Terminal box
(1220) Terminal box lid
(1230) Terminal box gasket
(1240) Terminal box lid gasket
1310 Brake disc
1320 Brake springs
KTF
(1325) Brake hub
(6290) Key (brake hub)
(6300) Circlip
kit ref. Description
1350 a.c. brake type FA
KPF
(1370) Brake seal kit (IP55)
(6080) V-ring (IP55)
1380 Hand release lever
KSA
(6020) Bearing
(6030) Bearing
(6050) Elastic ring
(6060) Key
(6070) Seal ring
6234 Blank plug
6250 Terminal board
6310 Circlip
6440 Bolt DE
6448 Bolt NDE
(####) Only available as a complete kit
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (B5/B14)
1080 Rear shield
1100 Tie rods
1110 Fan cowling
KSF
(1120) Brake holding plate
(6130) Bolts
1150 Fan
1190 Brake guard
KSM
(1200) Terminal box
(1230) Terminal box gasket
1310 Brake disc
kit ref. Description
1312 Armature plate
1315 a.c. brake type BA
1460 Brake release
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6060) Key
(6070) Seal ring
(6080) V-ring
6190 Nut screw
6234 Blank plug
6250 Terminal board
(####) Only available as a complete kit
