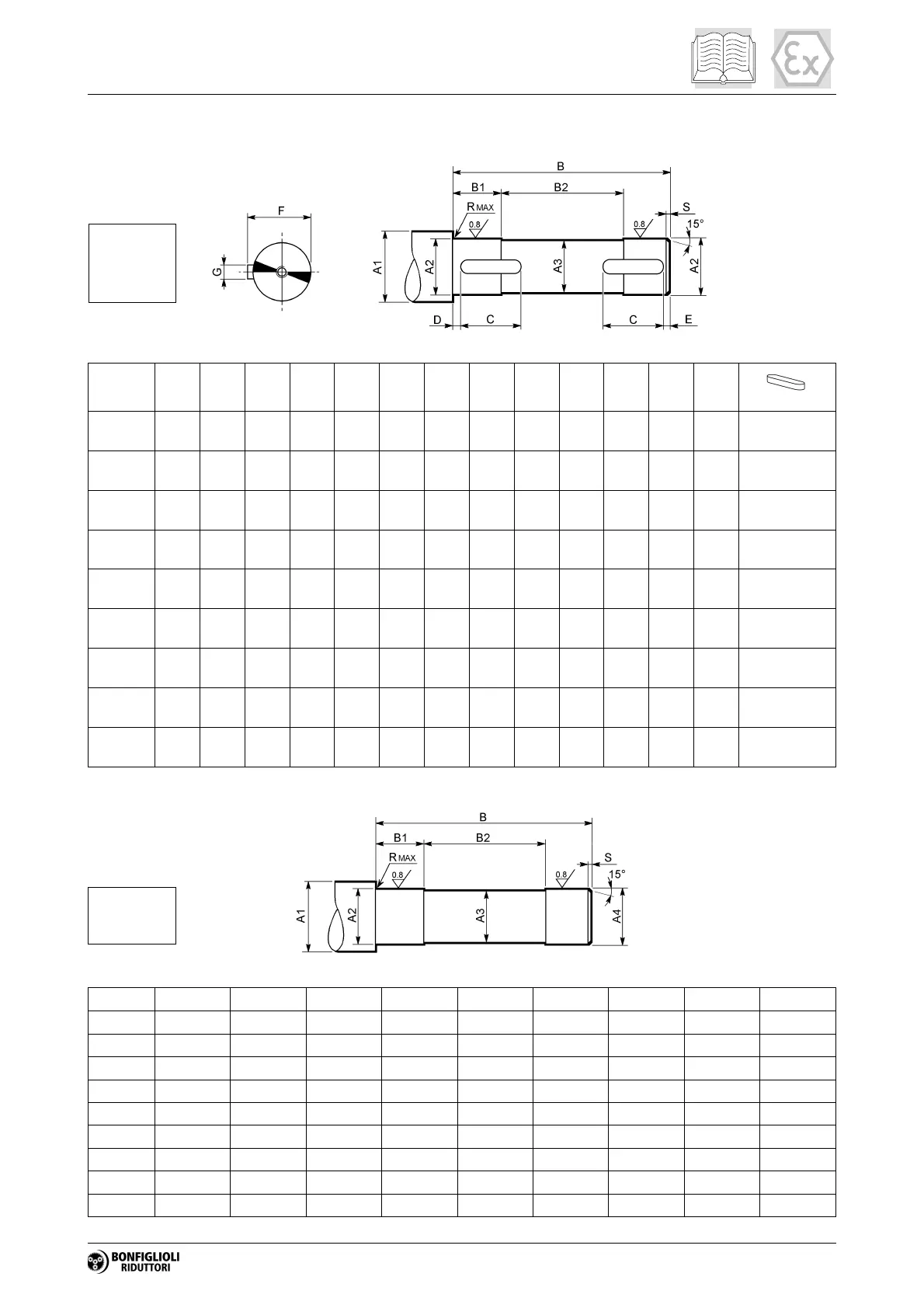

ANNEX 3 - CUSTOMER'S SHAFT
Series A
(A17)
NH_
UH_
US
A1 A2 A3 A4 B B1 B2 R S
A10 ³ 42 32 h7 29 30 g6 147.5 34 77.5 0.5 1.5
A20 ³ 48 37 h7 34 35 g6 170 40 89 0.5 1.5
A30 ³ 54 42 h7 39 40 g6 191.5 48 95.5 0.5 1.5
A41 ³ 60 47 h7 44 45 g6 222 53 117 1 2
A50 ³ 72 57 h7 54 55 g6 264 46 156 1 2
A60 ³ 90 72 h7 69 70 g6 293 48 178 2.5 2.5
A70 ³ 104 82 h7 79 80 g6 352.5 90 172.5 2.5 2.5
A80 ³ 114 92 h7 89 90 g6 416 100 216 2.5 2.5
A90 ³ 126 102 h7 99 100 g6 469 78 321 2.5 2.5
A1 A2 A3 B B1 B2 C D E F G R S
UNI 6604
A10
³ 35 30 h7 29 118 16 87 20 2 2 33 8 h9 0.5 1.5 8x7x20 A
³ 30 25 h7 24 118 16 87 20 2 2 28 8 h9 0.5 1.5 8x7x20 A
A20
³ 42 35 h7 34 138 20 98 20 2 2 38 10 h9 0.5 1.5 10x8x20 A
³ 35 30 h7 29 138 20 98 25 2 2 33 8 h9 0.5 1.5 8x7x25 A
A30
³ 47 40 h7 39 158 23 112 30 2 2 43 12 h9 0.5 1.5 12x8x30 A
³ 42 35 h7 34 158 23 112 30 2 2 38 10 h9 0.5 1.5 10x8x30 A
A41
³ 52 45 h7 44 184 28 128 45 2.5 2.5 49.5 14 h9 1 2 14x9x45 A
³ 47 40 h7 39 184 28 128 50 2.5 2.5 43 12 h9 1 2 12x8x50 A
A50
³ 63 55 h7 54 226 37.5 151 55 2.5 2.5 59 16 h9 1 2 16x10x55 A
³ 57 50 h7 49 226 37.5 151 65 2.5 2.5 53.5 14 h9 1 2 14x9x65 A
A60
³ 78 70 h7 69 248 48 152 70 2.5 2.5 74.5 20 h9 2.5 2 20x12x70 A
³ 68 60 h7 59 248 48 152 80 2.5 2.5 64 18 h9 2.5 2 18x11x80 A
A70
³ 89 80 h7 79 303 58 187 90 3 3 85 22 h9 2.5 2.5 22x14x90 A
³ 78 70 h7 69 303 58 187 110 3 3 74.5 20 h9 2.5 2.5 20x12x110 A
A80
³ 99 90 h7 89 358 78 202 120 3 3 95 25 h9 2.5 2.5 25x14x120 A
³ 89 80 h7 79 358 78 202 130 3 3 85 22 h9 2.5 2.5 22x14x130 A
A90
³ 111 100 h7 99 408 78 252 160 3 3 106 28 h9 2.5 2.5 28x16x160 A
³ 99 90 h7 89 408 78 252 190 3 3 95 25 h9 2.5 2.5 25x14x190 A
