BONFIGLIOLI VF 49 Installation Use And Service Manual

38
Series F
H
S

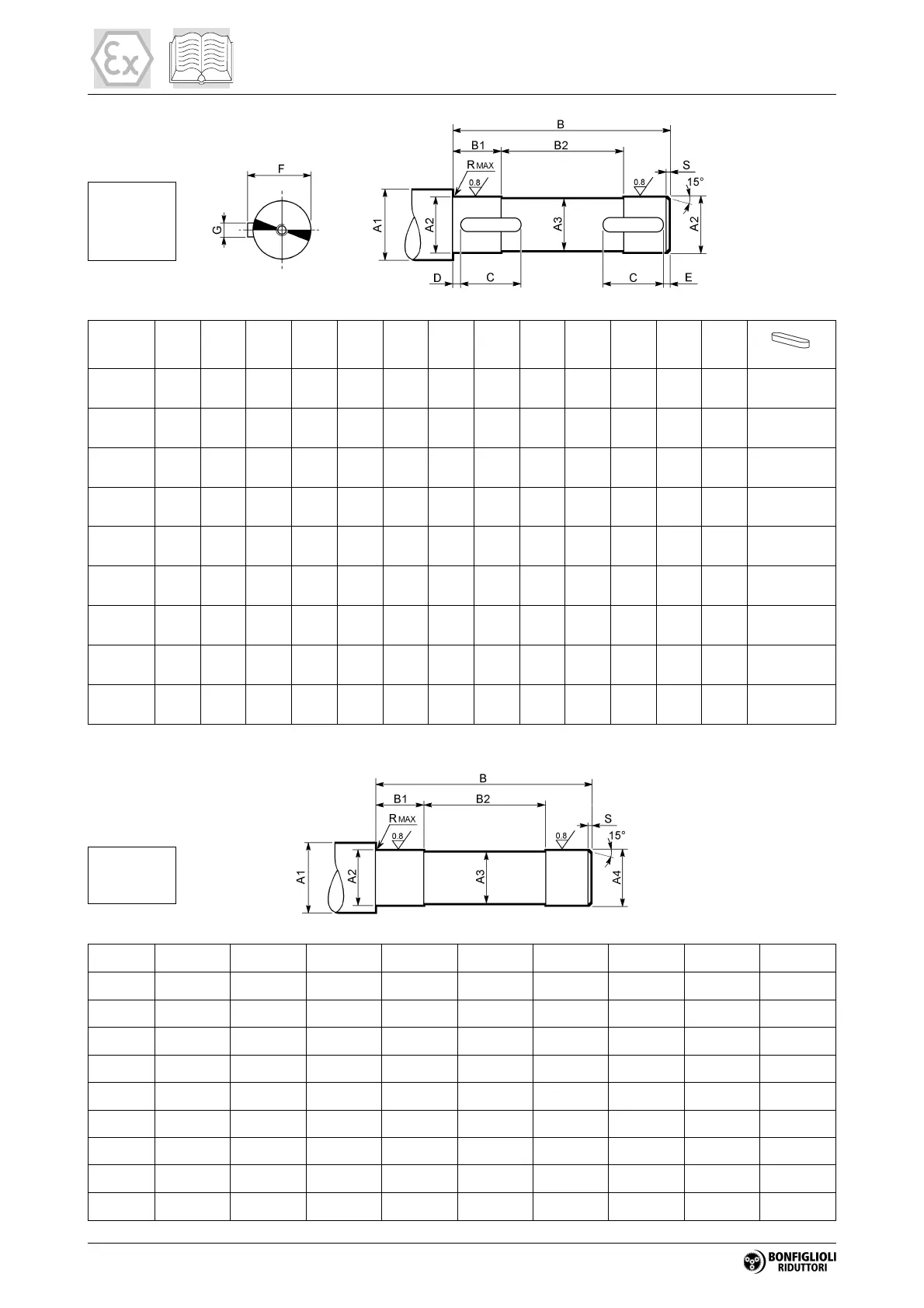

A1 A2 A3 B B1 B2 C D E F G R S
UNI 6604
F10
³ 35 30 h7 29 79 15.5 48 20 2 2 33 8 h9 0.5 1.5 8x7x20 A
³ 30 25 h7 24 79 15.5 48 20 2 2 28 8 h9 0.5 1.5 8x7x20 A
F20
³ 42 35 h7 34 99 18 63 22 2 2 38 10 h9 0.5 1.5 10x8x22 A
³ 35 30 h7 29 99 18 63 22 2 2 33 8 h9 0.5 1.5 8x7x22 A
F30
³ 47 40 h7 39 104 28 48 30 2 2 43 12 h9 0.5 1.5 12x8x30 A
³ 42 35 h7 34 104 28 48 30 2 2 38 10 h9 0.5 1.5 10x8x30 A
F40
³ 52 45 h7 44 118 27.5 63 45 2.5 2.5 49.5 14 h9 1 2.0 14x9x45 A
³ 47 40 h7 39 118 27.5 63 45 2.5 2.5 43 12 h9 1 2.0 12x8x45 A
F50
³ 63 55 h7 54 139 33 73 50 2.5 2.5 59 16 h9 1 2.0 16x10x50 A
³ 57 50 h7 49 139 33 73 50 2.5 2.5 53.5 14 h9 1 2.0 14x9x50 A
F60
³ 78 70 h7 69 180 38 104 70 2.5 2.5 74.5 20 h9 1 2.0 20x12x70 A
³ 68 60 h7 59 180 38 104 70 2.5 2.5 64 18 h9 1 2.0 18x11x70 A
F70
³ 89 80 h7 79 229 58 113 75 3 3 85 22 h9 2.5 2.5 22x14x75 A
³ 78 70 h7 69 229 58 113 75 3 3 74.5 20 h9 2.5 2.5 20x12x75 A
F80
³ 99 90 h7 89 272 78 116 100 3 3 95 25 h9 2.5 2.5 25x14x100 A
³ 89 80 h7 79 272 78 116 100 3 3 85 22 h9 2.5 2.5 22x14x100 A
F90
³ 111 100 h7 99 333 87.5 158 110 3 3 106 28 h9 2.5 2.5 28x16x110 A
³ 99 90 h7 89 333 87.5 158 110 3 3 95 25 h9 2.5 2.5 25x14x110 A
A1 A2 A3 A4 B B1 B2 R S
F10 ³ 36 27 h7 24 25 g6 138 34 70 0.5 1.5
F20 ³ 42 32 h7 29 30 g6 160 38 84 0.5 1.5
F30 ³ 50 38 h7 35 36 g6 155 40 73 1 2
F40 ³ 58 44 h7 41 42 g6 177 46.5 82 1 2
F50 ³ 68 54 h7 51 52 g6 201 48 91 1 2
F60 ³ 84 67 h7 64 65 g6 248 53 133 1.5 2
F70 ³ 104 82 h7 79 80 g6 308 78 140 2.5 2.5
F80 ³ 114 92 h7 89 90 g6 365 88 177 2.5 2.5
F90 ³ 126 102 h7 99 100 g6 429.5 98 221.5 2.5 2.5
