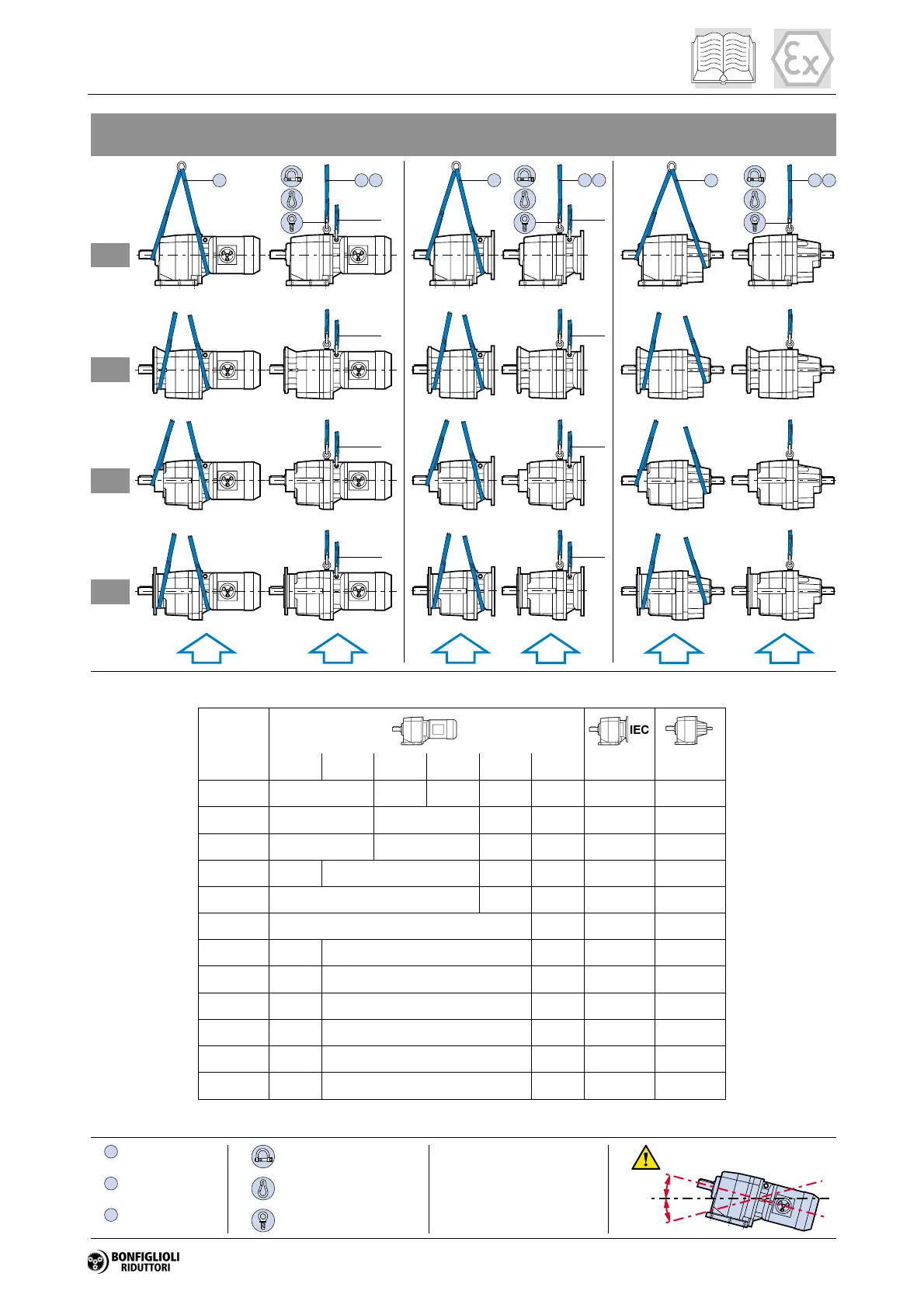

BONFIGLIOLI VF 49 Installation Use And Service Manual

41
Maximum permissible tilt during
handling: 15°
15°
1
5
°
MAX
Lift manually
(weight £ 15 kg)
M
Lift as per diagram A
A
Lift as per diagram B
B
Snap hook
(use with rope)
Screw clamp
(use with harness)
Eyebolt (already fitted
to gear units C50...C100)
3
Open harness
with eyelets
2
Rope and hooks
1
Ring harness
Series C
A
B
A
B
B
C41-C51
C41-C51
C41-C51
C41-C51
C41-C51
C41-C51
C41-C51
2
3
1
C41-C51
2
3
1
2
3
A
1
P
F
U
UF
M05 M1 M2 M3 M4 M5
C05 M ———— — —
C11 MA——MM
C21 MA——MM
C31 MA——MM
C35 A——AA
C41 A-B — A-B A-B
C51 — A-B — A-B A-B
C61 — A-B A A-B A-B
C70 — A-B A A-B A-B
C80 — A-B A A-B A-B
C90 — A-B A A-B A-B
C 100 — A-B A A-B A-B
