Chapter 1 Model and Specifications
1.1 Unpacking Check
After receiving the DC servo drive, please check for the followings in order to prevent mistake during purchase or
shipment
：
● Check the following section about the model explanation of the servo drive and motor to ensure that the
product is what you have ordered.
● Rotate the motor shaft slightly by hand, a smooth rotation will indicate a good motor. However, a servo
motor with holding brake can not be rotated manually unless give power to the holding brake to release
the shaft.
● Inspect the unit to insure it was not damaged during shipment.
If any items are damaged or incorrect, please inform the distributor whom you purchased the product from or your
local BONMET sales representative.
1.2 Model Explanation
● Nameplate Explanation

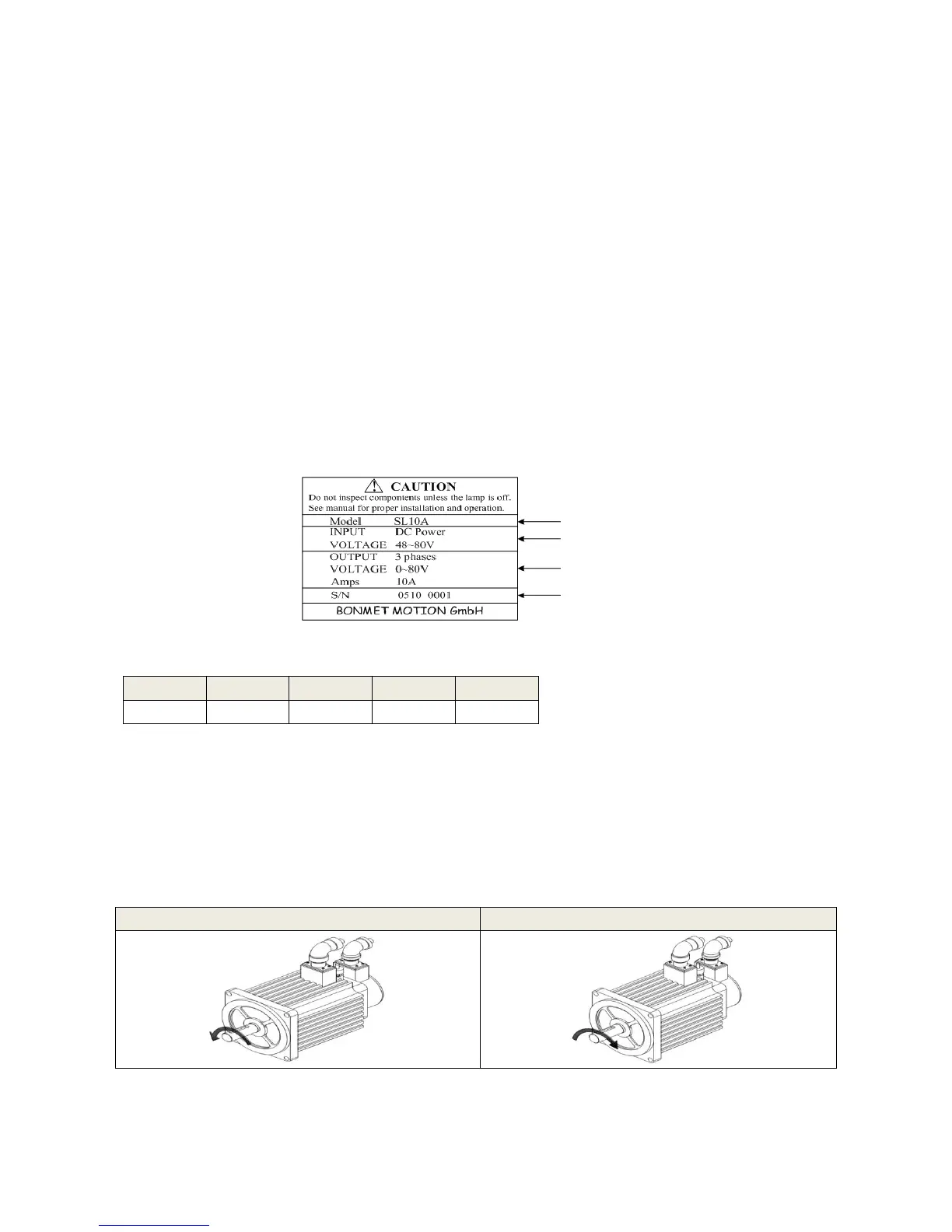

Figure 1-1 Nameplate explanation
● Model Explanation
1． Product type: S(SD)- Series DC servo drive;
2． Power supply:48~80VDC
3． Nominal current：10A
4． Type code;
5． Software customized logo.
1.3 Product Features
●
Definition of The Motor Rotation Direction
Definition of the motor rotation direction
：
facing the motor shaft side, CCW (counterclockwise) direction is
positive direction, CW (clockwise) direction is negative direction.
