Chapter 2 Installation
2.1 Notes for Installation
● Do not bend or strain the cables between servo drive and motor；
● When mounting the servo drive and servo motor, make sure to tighten all screws to secure the machine
in place；
● Motor shaft must be concentric with the axis of transmission;
● If the cable between drive and motor is longer than 10 meters, the cable must be thicken.
2.2 Installation Environment
● Please install the servo system in the place without oil mist, dust or electrical control cabinet (ensure the
temperature below 50℃, relative humidity below 80%. The long-term safety temperature below 40℃)
● Please install the servo system in the place without radioactive matters and combustibles.
● Take an anti-vibration measure to guarantee that the servo drive is free from vibration impact, ensuring
the vibration under 0.5G (4.9m/s
2
).
● Please install the servo system in the place without direct sunlight.
● Interferential equipment nearby would take great effects to the power wire and control wire which will
cause miss operation. For normal operation, a noise filter or any other anti-jamming measures is
necessary to be carried out. Leakage current would increase after installing a noise filter, therefore an
isolation transformer can be used to avoid this problem. Possessing a reasonable alignment and inhibit
measures is very important because the control signal wire is easy to be interfered.

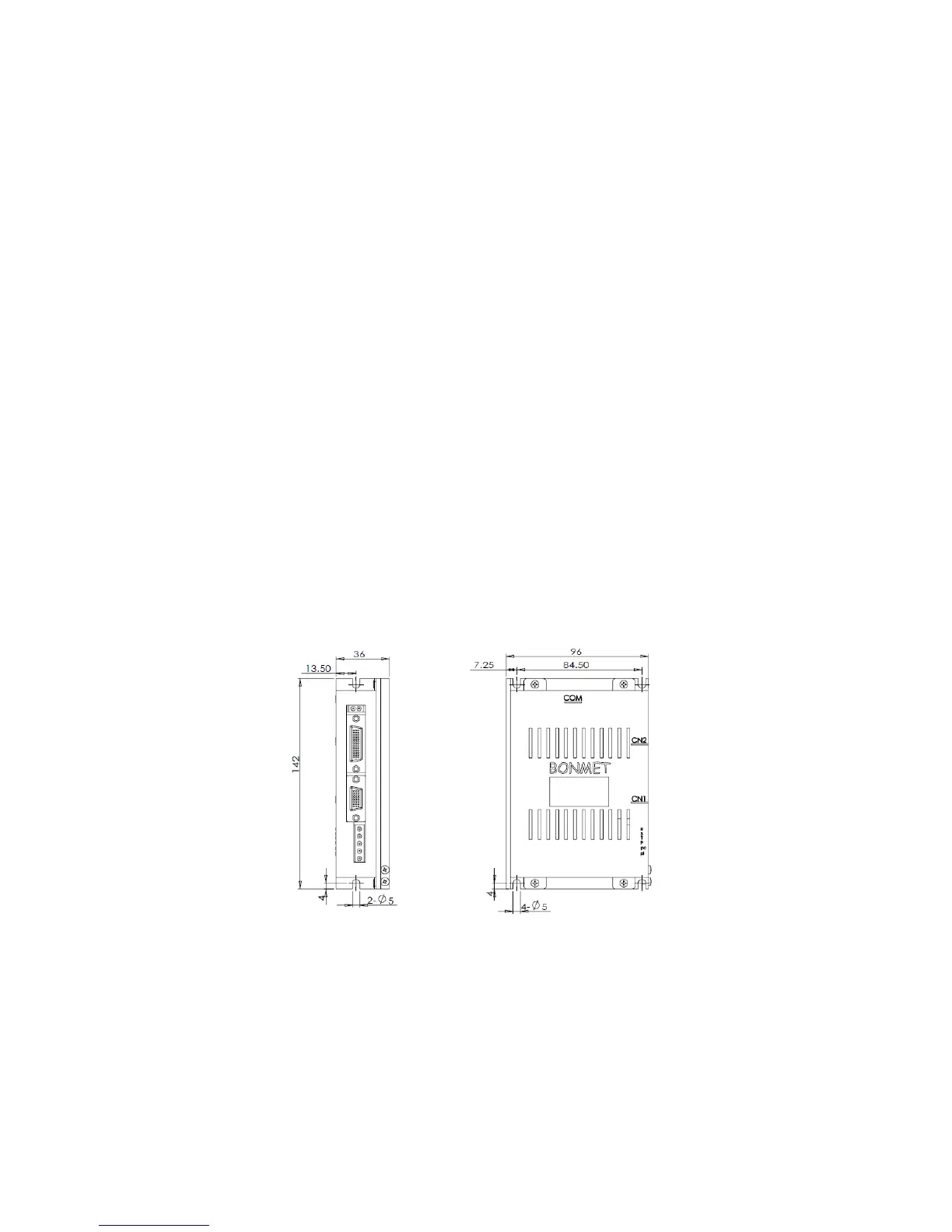

2.3 Dimensions（Unit: mm）
Figure 2-1 Dimension drawings
2.4 Installation Direction and Space
● The equipment must be installed in the specified direction. Otherwise, a fault may occur.
● Leave specified clearances between the servo drive and control box inside walls or other equipment.
● Leave a large clearance between the top of the servo drive and the internal surface of the control box,
and install a fan to prevent the internal temperature of the control box from exceeding the environmental
