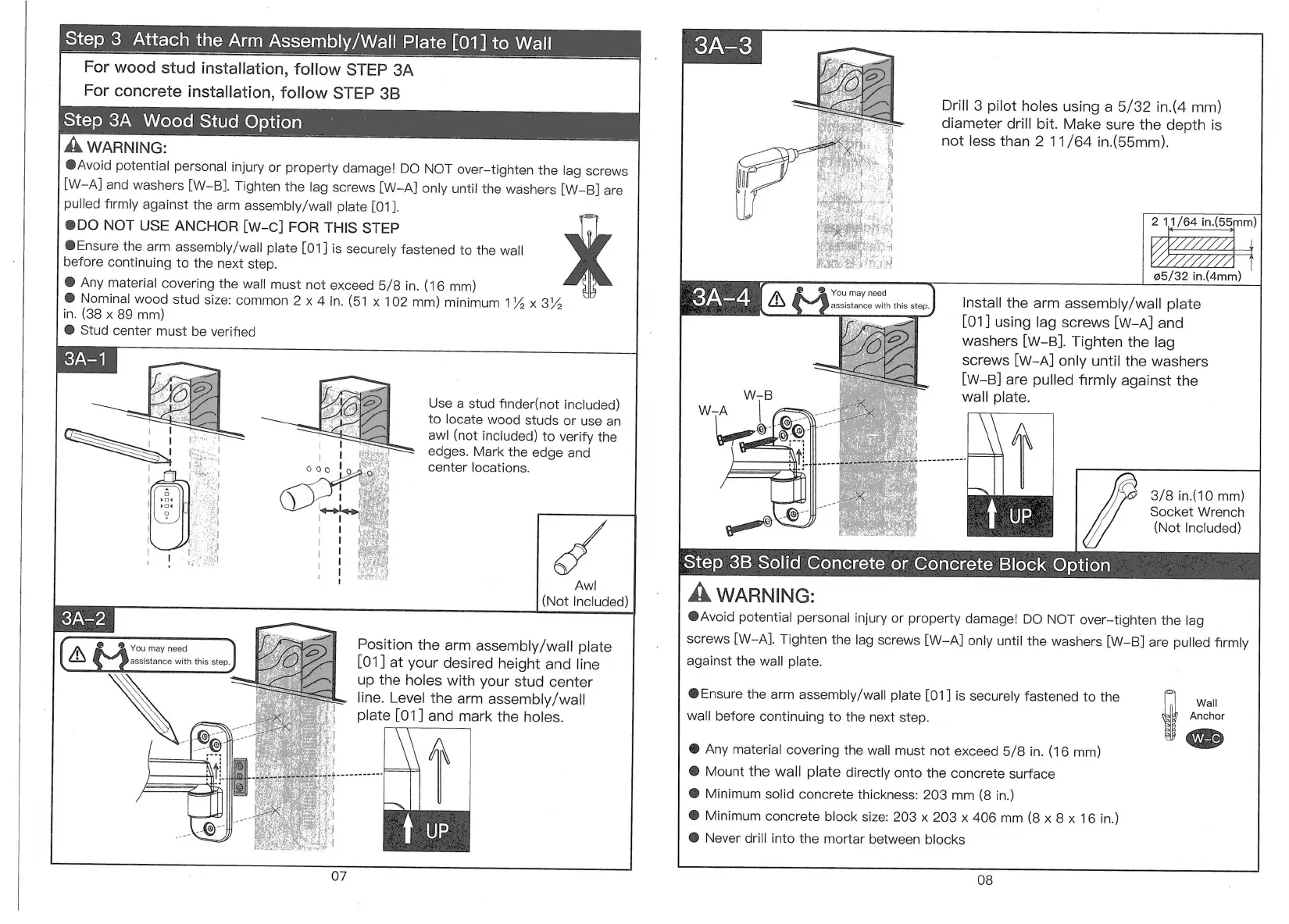

Step
3
Attach
the
Arm
Assembly/Wall
Plate
[01]
to
Wall
For
wood
stud
installation,
follow
STEP
3A
For
concrete
installation,
follow
STEP
3B
Step
3A
'Wood
Stud
Option
A\
WARNING:
@®Avoid
potential
personal
injury
or
property
damage!
DO
NOT
over-tighten
the
lag
screws
[W-A]
and
washers
[W-B].
Tighten
the
lag
screws
[W-A]
only
until
the
washers
[W-B]
are
pulled
firmly
against
the
arm
assembly/wall
plate
[01].
@®DO
NOT
USE
ANCHOR
[w-C]
FOR
THIS
STEP
@Ensure
the
arm
assembly/wall
plate
[01]
is
securely
fastened
to
the
wall
before
continuing
to
the
next
step.
®
Any
material
covering
the
wall
must
not
exceed
5/8
in.
(16
mm)
Nominal
wood
stud
size:
common
2
x
4
in.
(51
x
102
mm)
minimum
1%
x
3V
in.
(38
x
89
mm)
@
Stud
center
must
be
verified
Use
a
stud
finder(not
included)
to
locate
wood
studs
or
use
an
awl
(not
included)
to
verify
the
edges.
Mark
the
edge
and
center
locations.
Awl
(Not
Included)
Position
the
arm
assembly/wall
plate
[01]
at
your
desired
height
and
line
up
the
holes
with
your
stud
center
line.
Level
the
arm
assembly/wall
plate
[01]
and
mark
the
holes.
e
2
You
may
need
assistance
with
this
step.
\s
\
=
7
07
Drill
3
pilot
holes using
a
5/32
in.(4
mm)
diameter
drill
bit.
Make
sure
the
depth
is
not
less
than
2
11/64
in.(55mm).
2
11/64
in.(55mm)
85/32
in.(4mm)
Install
the
arm
assembly/wall
plate
[01]
using
lag
screws
[W-A]
and
washers
[W-B].
Tighten
the
lag
screws
[W-A]
only
until
the
washers
[w-B]
are
pulled
firmly
against
the
wall
plate.
2
You
may
need
assistance
with
this
step.
3/8
in.(10
mm)
Socket
Wrench
(Not
Included)
Step
3B
Solid
Concrete
or
Concrete
Block
Option
A\
WARNING:
@
Avoid
potential
personal
injury
or
property
damage!
DO
NOT
over—tighten
the
lag
screws
[W-A].
Tighten
the
lag
screws
[W-A]
only
until
the
washers
[W-B]
are
pulled
firmly
against
the
wall
plate.
@®Ensure
the
arm
assembly/wall
plate
[01]
is
securely
fastened
to
the
wall
before
continuing
to
the
next
step.
Anchor
Any
material
covering
the
wall
must
not
exceed
5/8
in.
(16
mm)
Mount
the
wall
plate
directly
onto
the
concrete
surface
@
Minimum
solid
concrete
thickness:
203
mm
(8
in.)
®
Minimum
concrete
block
size:
203
x
203
x
406
mm
(8
x
8
x
16
in.)
@
Never
drill
into
the
mortar
between
blocks
08
