bora XBO - Troubleshooting

Installation
EN
bora.com 85
1

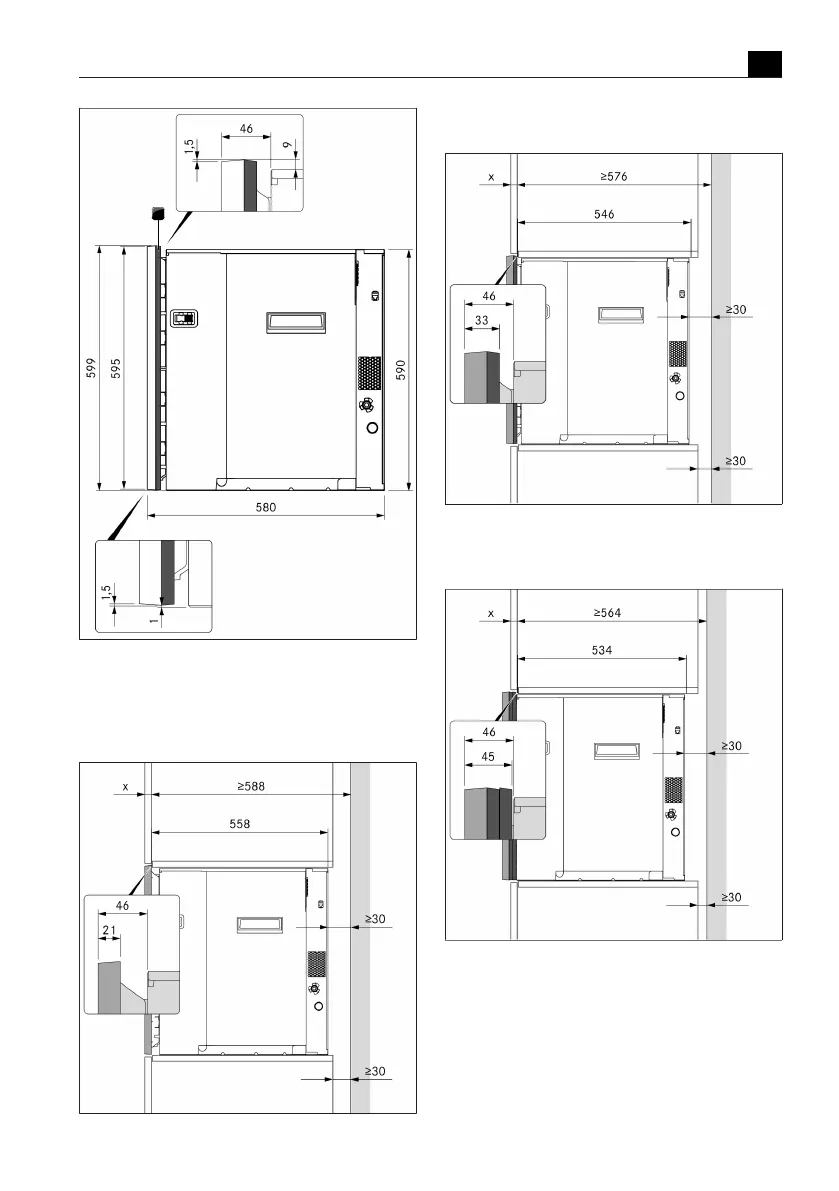

Fig.8.2
Appliance dimensions
[1]
Frame spacer
Installation depth without frame spacer
Fig.8.3
Installation dimensions without frame spacer
Installation depth with one frame spacer
Fig.8.4
Installation dimensions with 1 frame spacer
Installation depth with 2 frame spacers
Fig.8.5
Installation dimensions with 2 frame spacers
8.5.1 Removing the frame spacer
u Remove the 4 parts of the frame spacer from the
corners of the inlay frame by hand.
