Installation
EN
86 bora.com

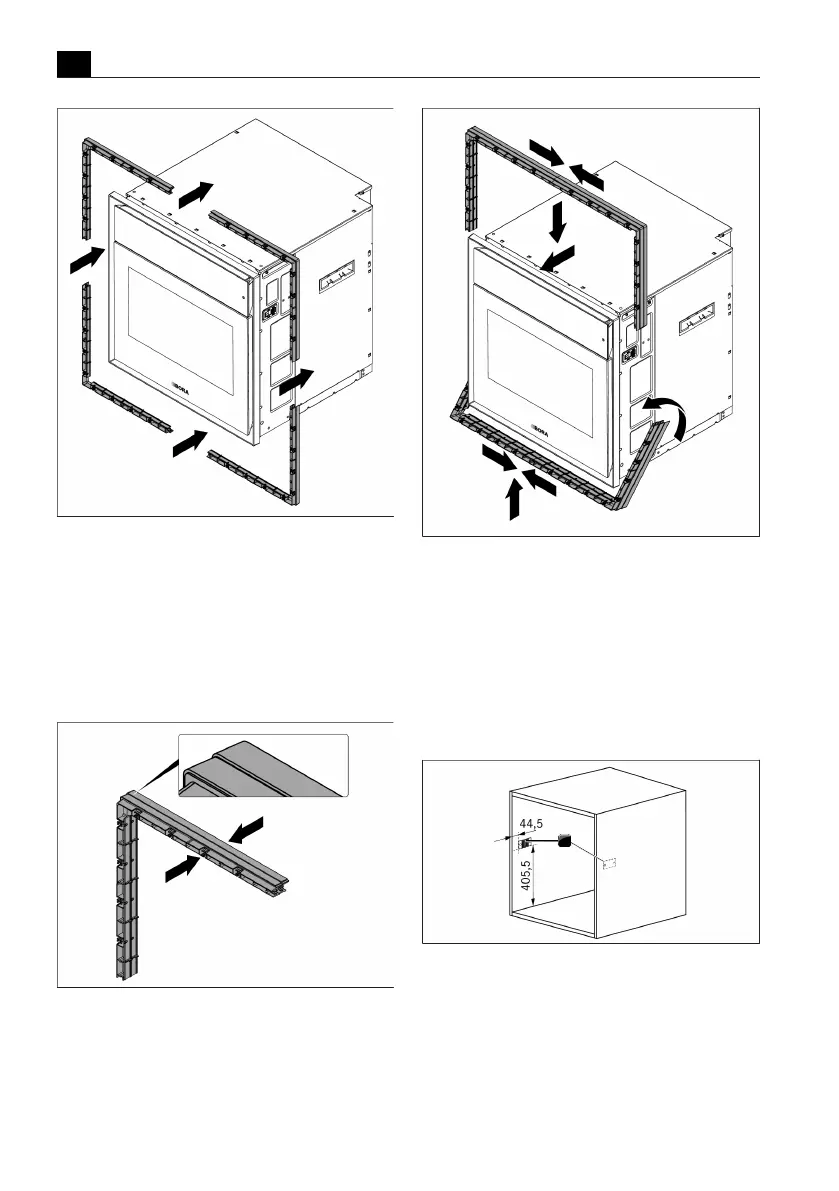

Fig.8.6
Removing the frame spacer
8.5.2
Fitting additional frame
spacers
u
Remove the frame spacer from the appliance.
u
Attach the corners of the 2 frame spacers to each
other and then join all of the corners together.
Fig.8.7
2 frame spacers
u
Fit the frame spacers to the inlay frame.
Fig.8.8
Fitting 2 frame spacers
8.6
Installation
8.6.1
Fitting unit mounting plates
u
Using the installation template and the screws
provided, screw the unit mounting plates hand-tight
to the inside of the installation recess.
Fig.8.9
Installation recess with unit mounting plates
[1]
Unit mounting plates
