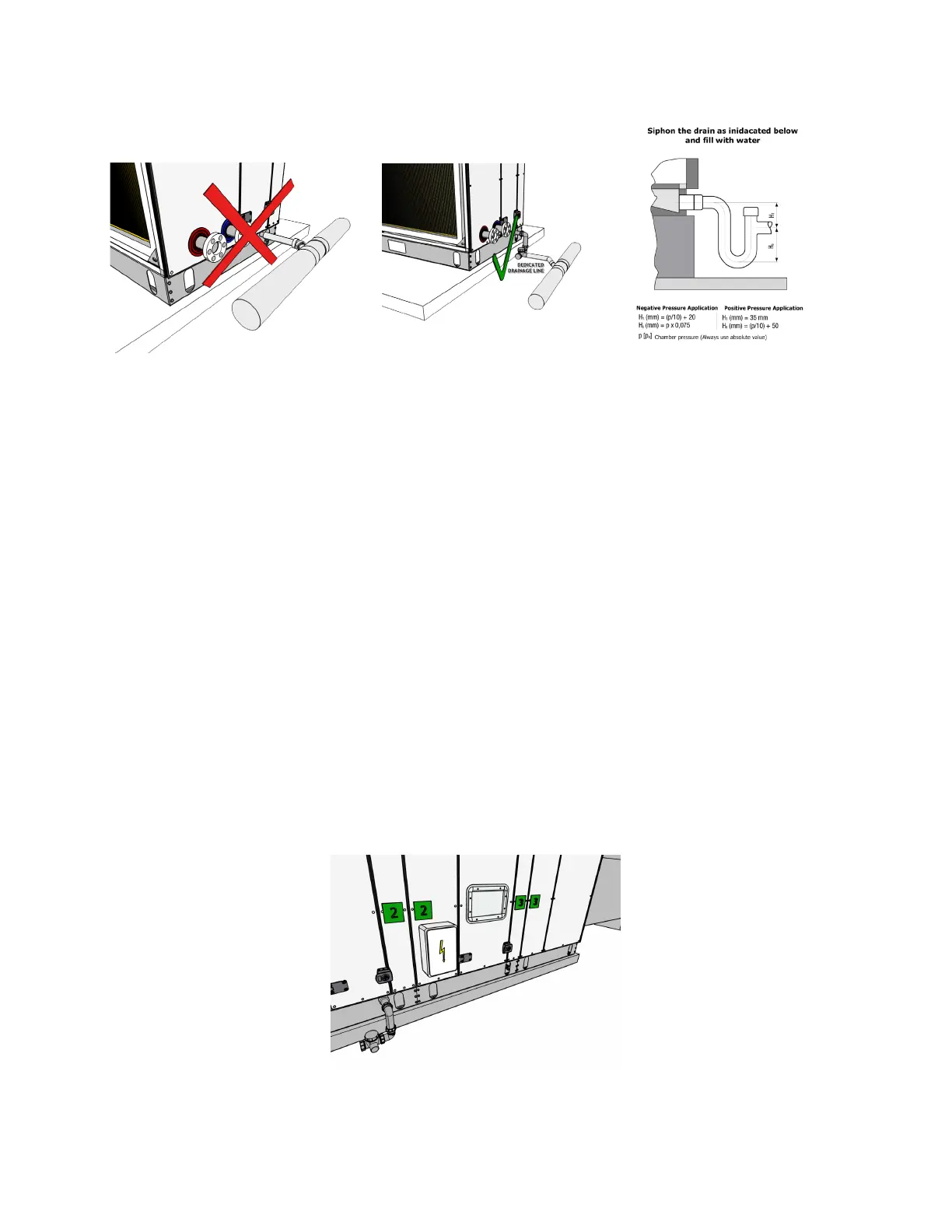

Figure 15 Installation of the Drainage Line

6.6 ELECTRICAL CONNECTION

6.6.1 Air Handling Unit without Panel

Air handling units without automation systems come with motor connections already made. Motor

connection cables have been moved within a terminal box on the exterior surface of the fan section, for

power supply. The power supply is made within the terminal box. If the air handling unit includes the

following sections which require power connection;

• Electrical heater section

• High Pressure Humidifier Section (Pump Power Connection)

• Evaporative Humidifier Section (Pump Power Connection)

• Steam Humidifier Section (Pump Power Connection)

• Rotary Heat Recovery Chamber

• Run Around Heat Recovery Section (Pump Power Connection)

a terminal box is mounted for power connection, as in the motor section. Power ratings are indicated on

information tags on each section.

Figure 16 Electrical Connection Terminal
