7.6.2 Maintenance
The draining system should be checked once a month.
7.7 DROP ELIMINATOR
All provisions stated under the heading of 2. GENERAL SAFETY must be applied during the
commissioning and maintenance of the drop eliminator.
7.7.1 Initial Start-up
The position of the drop eliminator with respect to the direction of
air flow is of critical importance for the correct functioning of the
drop eliminator. For this reason, make sure that the drop
eliminator has been correctly installed according to the label
indicating the direction of air flow.
• Verify the correct direction of the drop eliminator
installation according to the label indicating the direction of
air flow.
• Verify that the drop eliminator moves smoothly on the rail mechanism.
• Verify that there is no gap between the drop eliminator discharge and the drain pan.
WARNING: MAKE SURE THAT THE DROPLET ELIMINATOR HAS BEEN CORRECTLY INSTALLED
ACCORDING TO THE LABEL INDICATING THE DIRECTION OF AIR FLOW!
Periodical Maintenance on the Draining System:
• Check whether the draining system conforms to hygiene standards, and check for clogging,
corrosion, and damages.
• The water drainage time should be checked; if it is too slow, the pipe is clogged or there is a
problem with the inclination angle of the AHU.
• The drain trap should be removed and cleaned every three months.
The accumulation of dirt within the drain pan should be prevented, and the pan should be cleaned
on a monthly basis using cleaning agents with a pH range of 7-9.

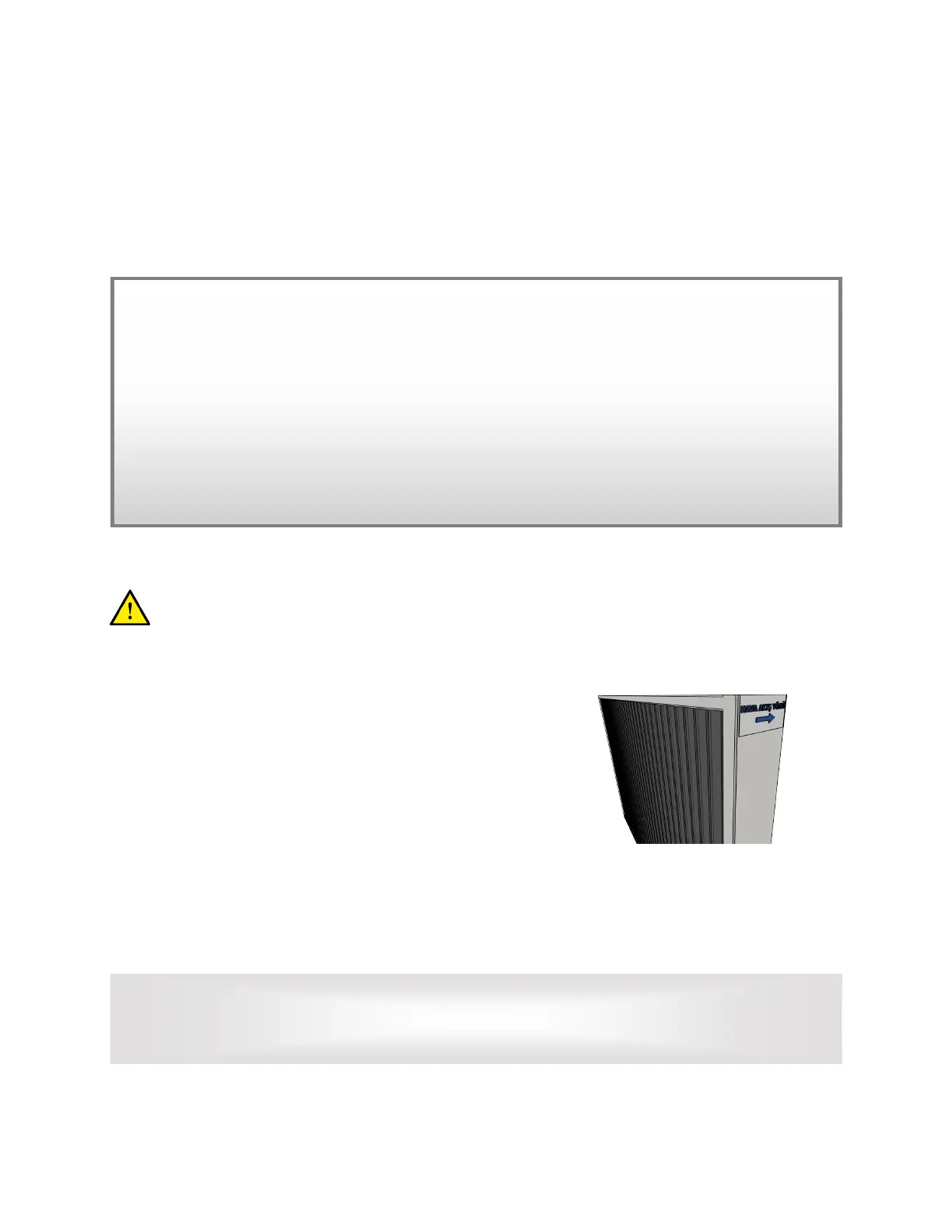

Figure 22 Direction of Installation of Droplet
Elimin
ator
