-20-
6.3 Bypass mode

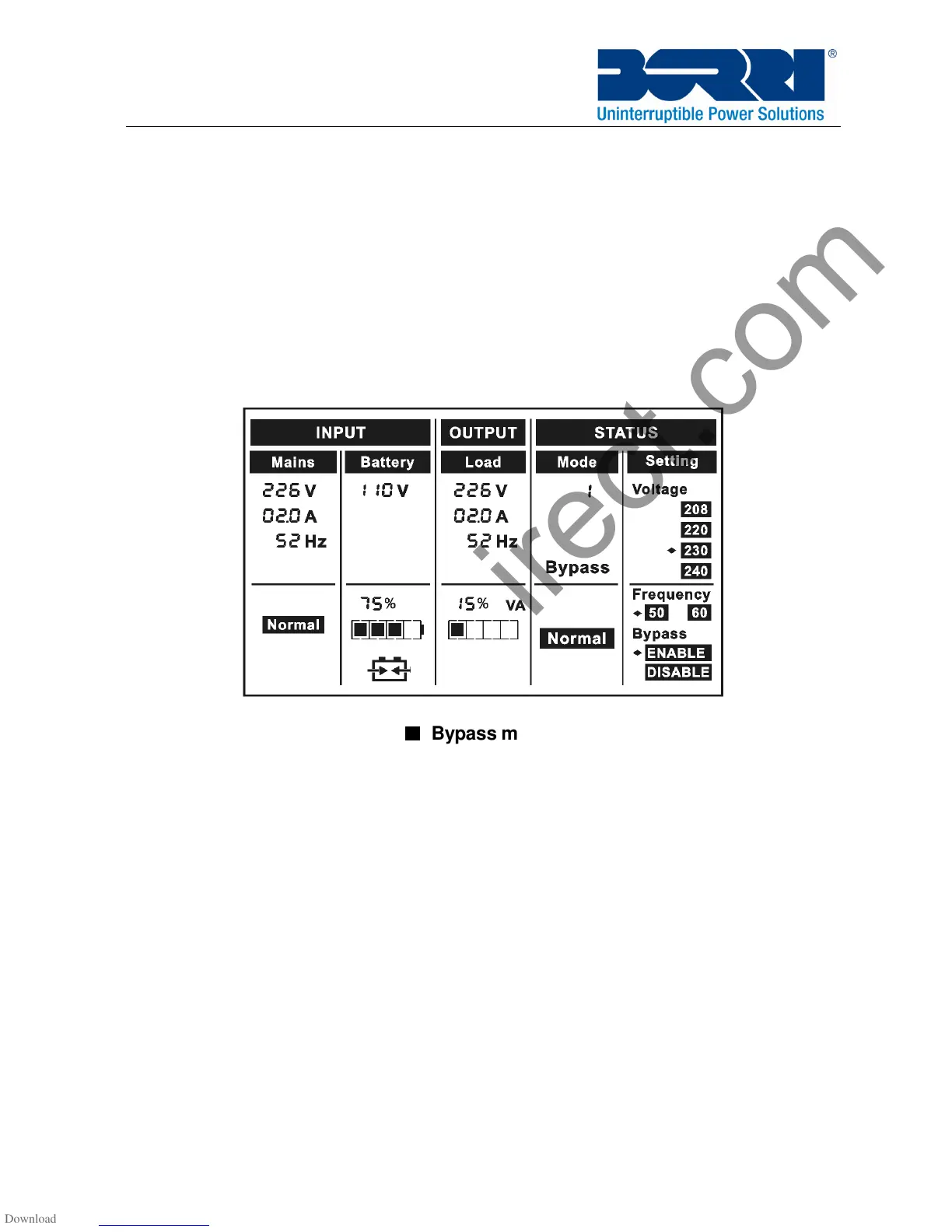

The LCD display for the UPS operating in bypass mode is shown in
the following diagram. The information about the mains power, the
battery, the UPS output and the load is displayed. The UPS will beep
once every 2 minutes while in bypass mode. The “Bypass” and “1”
code indicate the UPS is working in the bypass mode.
The UPS will not support the load while in bypass mode. The power
used by the load is supplied from the mains power via internal filter
and is unprotected.
■
■■
■
Bypass mode
