B400R 1-3kVA User Manual
21
The UPS provides useful information about itself, load status, events, measurements, identification,
and settings through the front panel display.

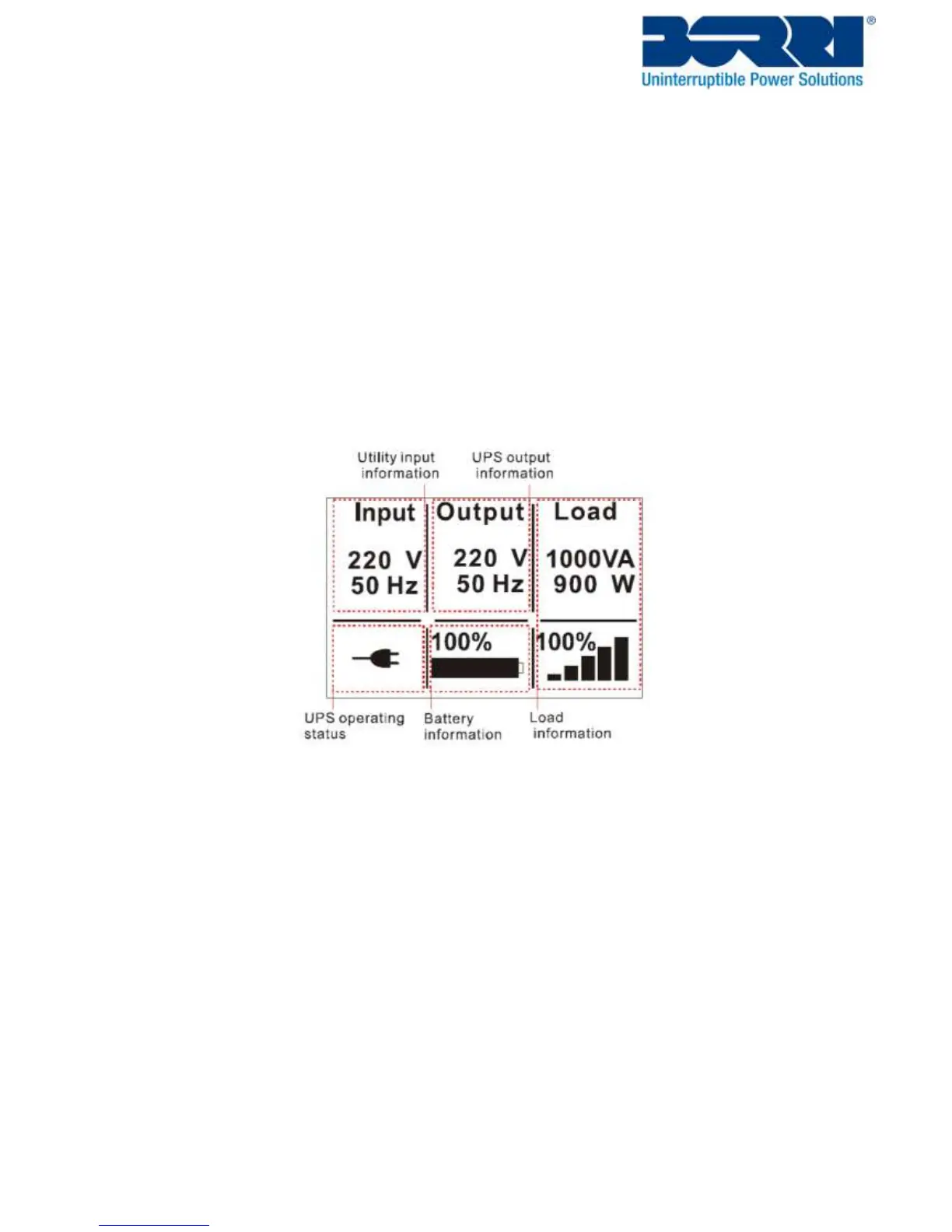

After powering on, the LCD will display the logo for several seconds and then show the default UPS
status summary screen.
The display automatically returns to the default UPS status summary screen when no button has
been pressed for 15 minutes. On the UPS status summary screen the following information is given:
Status summary, including mode and load
Alarm status, if any are present
Notes: alarm including fault and warning information
Battery and charger status, including battery voltage, charge
level and charger status
Running information including UPS operating mode and running time
More details on the operation of the LCD is illustrated in chapter 4.4
